Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SF-12P SF-12R SF-12S SF-12W
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

solenoid valves

Description
Form: Normally Closed Pressure: 0-0.03bar
Working Medium: Water DN: Φ11

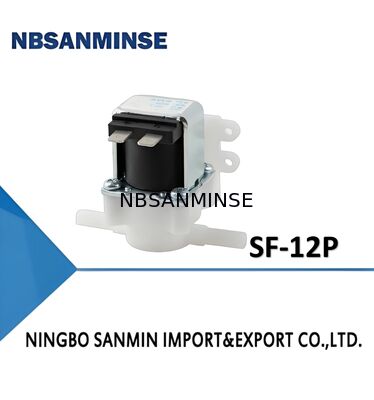

SF-12P(Technical Parameters):

Form Normally closed
Pressure 0.2-8bar
Working medium water
DN Φ9
Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 0

SF-12R(Technical Parameters):

Form Normally closed
Pressure 0.2-8bar
Working medium water
DN Φ9
Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 1

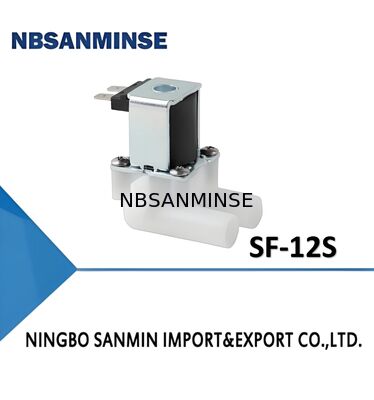

SF-12S(Technical Parameters):

Form Normally closed
Pressure 0-0.03bar
Working medium water
DN Φ11
Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 2

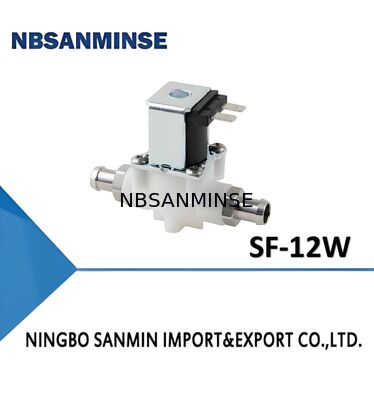

SF-12W(Technical Parameters):

Form Normally closed
Pressure 0.2-8bar
Working medium water
DN Φ9
Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Connection (Cannula)NPT1/4''

(2/2way valveN.C.)

solenoid valves 3

Specifications

Technical Parameter
Type Normally Closed
DN Φ9mm
Rated Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Applicable Medium Water
Applicable Ambient Temperature 0-50℃
Applicable Medium Temperature 0-80℃
Operating Pressure Range 0.2-8bar
Connection (Cannula)NPT1/4''
Service Life 100,000 Cycles
