Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: SF-16 SF-16B SF-15QG SF-18 QG-3
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

solenoid valves

Description
DN: Φ2.9 Voltage: DC12V, DC24V, DC36V,
Connection: Cannula Pressure: 0-6bar

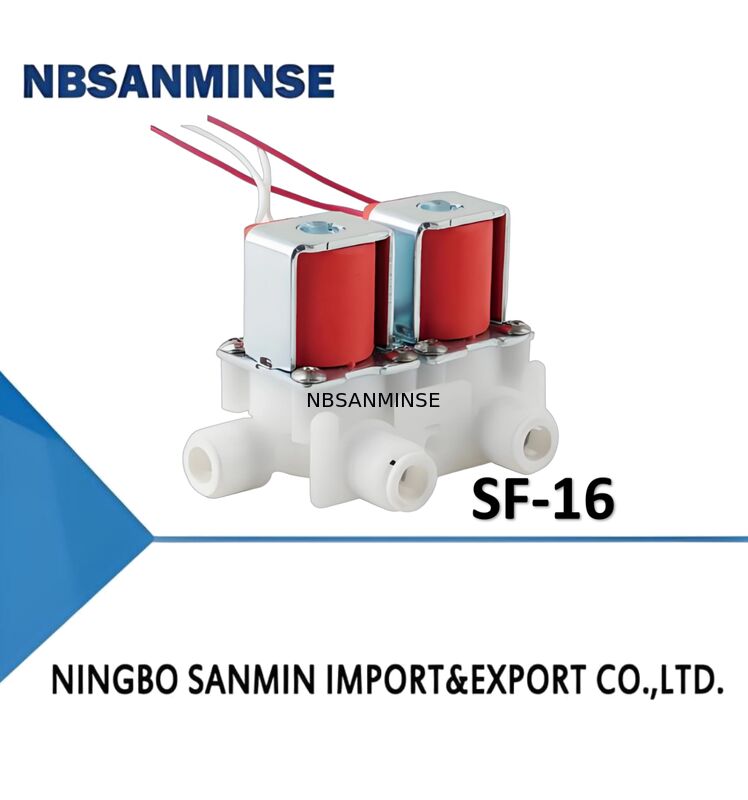

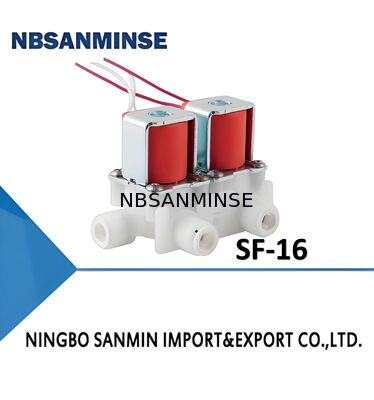

SF-16(Technical Parameters):

Form Normally closed
Pressure 0.2-8bar
Working medium water
Fluid Temperature 0-80℃
Amb. Temperature 0-50℃
Power 8-8.5W
DN Φ11
Voltage DC12V
Connection Inlet: 3/8" Quick Connect, Outlet: 5/16" Quick Connect

(2/2way valveN.C.)

solenoid valves 0

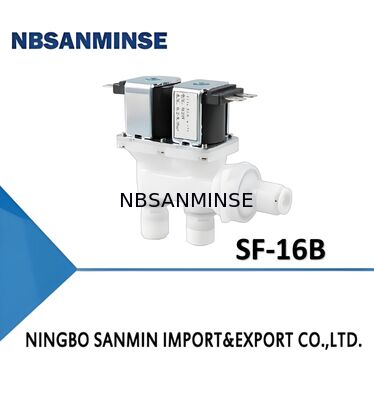

SF-16B(Technical Parameters):

Form Normally closed
Pressure 0.2-8bar
Working medium water
Power 8-8.5W
DN Φ9
Voltage

DC12V, DC24V, DC36V,

AC110V,AC120V, AC230V
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 1

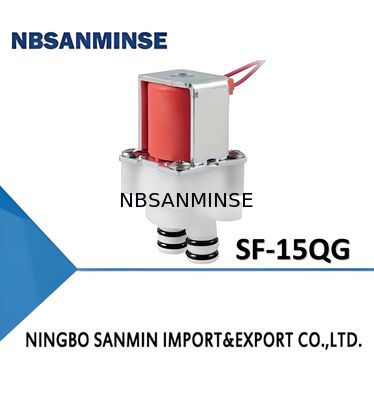

SF-15QG(Technical Parameters):

Form Normally closed
Pressure 0.2-8bar
Working medium water
DN Φ9
Voltage

 DC36V,
Connection (Cannula)

(2/2way valveN.C.)

solenoid valves 2

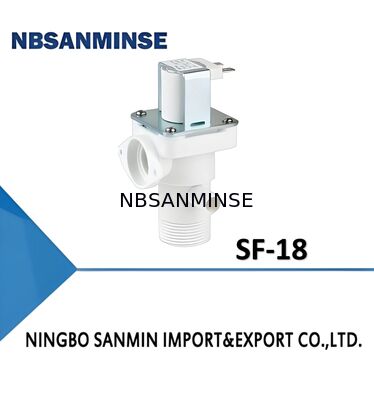

SF-18(Technical Parameters):

Form Normally closed
Pressure 0-0.04bar
Working medium water
DN Φ18
Voltage

 DC36V,
Connection G7/8''

(2/2way valveN.C.)

solenoid valves 3

QG-3(Technical Parameters):

Form Normally closed
Pressure 0-6bar
Working medium water
DN Φ2.9
Voltage

DC12V, DC24V, DC36V,
Connection (Cannula)

solenoid valves 4
