Vibration Pump

Vibration Pump
Vibration Pump Vibration Pump

Large Image :  Vibration Pump

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PS-1
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Vibration Pump

Description
Maximum Pressure: 0.45(bar) Flow Range: 50-100(cc/min)
Pumping Noise: ≤45(dB)

PS-1E/1L(Technical Parameters):

Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PS-1E PS-1L
V Hz ON/OFF W Maximum Pressure (bar) 0.45 0.45
220-240 50/60 100% 9 Flow Range (cc/min) 50-100 80-150
100-127 50/60 100% 9 Pumping Noise (dB) ≤45 ≤45

Note: Tolerance range for products in this catalog: ±15%

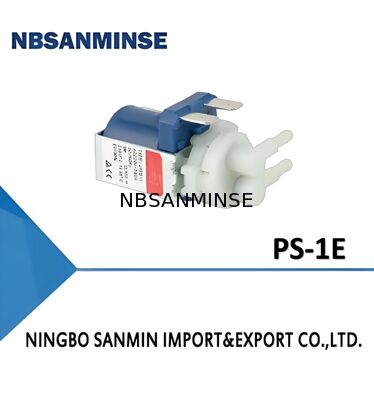

PS-1E

Vibration Pump 0

Specification:

Model PS-1E
Flow range (+/-15% vol/min) 50~100
Max Pressure (Bar) 0.45
Power (W) 7
Noise (dB) 45
Terminal 6.3×0.8, 4.8×0.8
Work style ED100%
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-60
Fluid Temp (℃) 5-35
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV, UL

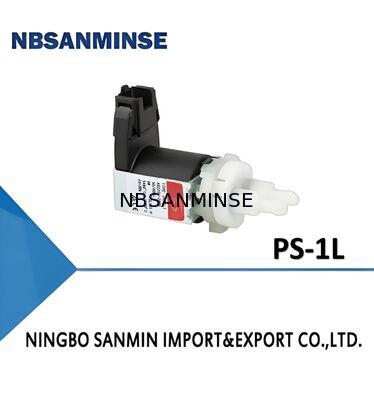

PS-1L

Vibration Pump 1

Model PS-1L
Flow range (+/-15% vol/min) 80-120
Max Pressure (Bar) 0.45
Power (W) 7
Noise (dB) 45
Terminal 6.3×0.8, 4.8×0.8
Work style ED100%
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-60
Fluid Temp (℃) 5-35
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV, UL

Vibration Pump 2
