Vibration Pump

Vibration Pump
Vibration Pump Vibration Pump Vibration Pump Vibration Pump Vibration Pump

Large Image :  Vibration Pump

Product Details:
Place of Origin: CHINNA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PS-4 PS-4B PS-4C PS-2A PS-2B
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Vibration Pump

Description
Maximum Pressure (bar): 3.0 Flow Range (cc/min): 60
Pumping Noise (dB): 36

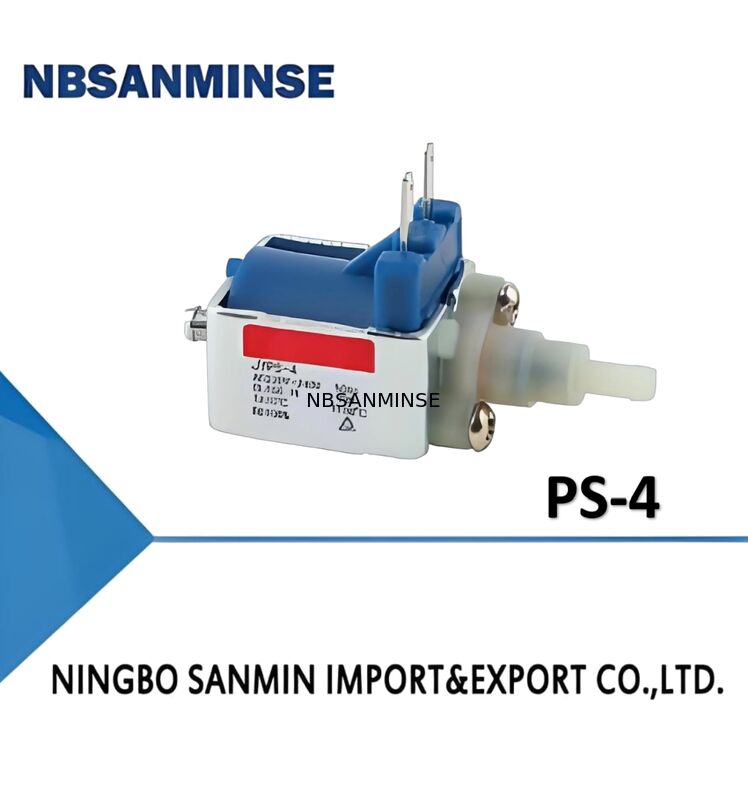

PS-4(Technical Parameters):

Vibration Pump 0

Model PS-4
Flow range (+/-15% vol/min) 15-50
Max Pressure (Bar) 1.2
Power (W) 7
Noise (dB) 45
Terminal 2×0.8
Work style ED100%
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-80
Fluid Temp (℃) 5-60
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV, UL

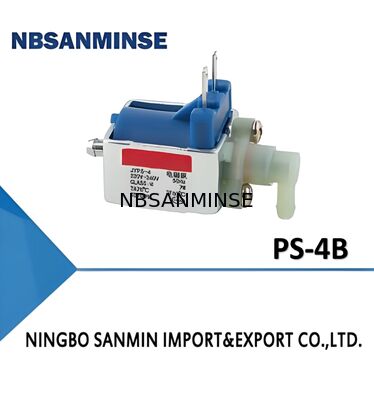

PS-4B(Technical Parameters):

Vibration Pump 1

Model PS-4B
Flow range (+/-15% vol/min) 15-50
Max Pressure (Bar) 1.2
Power (W) 7
Noise (dB) 45
Terminal 2×0.8
Work style ED100%
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-80
Fluid Temp (℃) 5-60
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV, UL

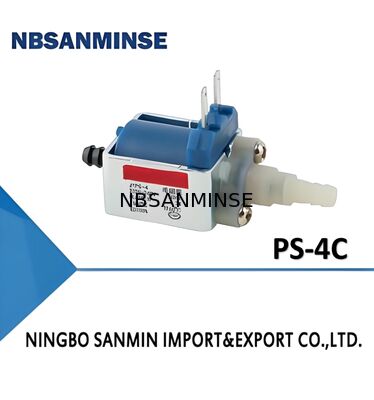

PS-4C(Technical Parameters):

Vibration Pump 2

Model PS-4C
Flow range (+/-15% vol/min) 15-90
Max Pressure (Bar) 0.6
Power (W) 7
Noise (dB) 45
Terminal 2×0.8
Work style ED100%
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-80
Fluid Temp (℃) 5-60
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV, UL


Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PS-4 PS-4B PS-4C
V Hz ON/OFF W Maximum Pressure (bar) 1.2 1.2 0.6
220-240 50 100% 7 Flow Range (cc/min) 40 40 40
120 60 100% 7 Pumping Noise (dB) ≤45 ≤45 ≤45
110 60 100% 7 Note: Tolerance range for products in this catalog: ±15%
100 50/60 100% 7


Vibration Pump 3

PS-2A(Technical Parameters):

Vibration Pump 4

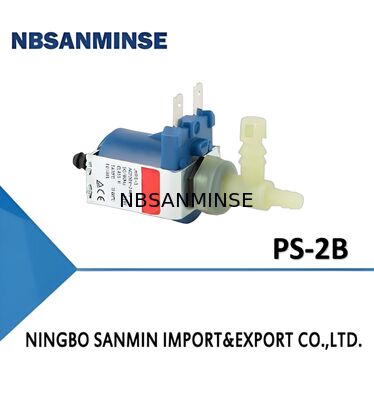

PS-2B(Technical Parameters):

Vibration Pump 5

Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PS-2 PS-2A PS-2B
V Hz ON/OFF W Maximum Pressure (bar) 3.0 3.0 3.0
220-240 50 100% 9 Flow Range (cc/min) 60 60 60
120 60 100% 9 Pumping Noise (dB) 36 37 38
110 60 100% 9 Note: Tolerance range for products in this catalog: ±15%
100 60 100% 9


Vibration Pump 6
