Vibration Pump

Vibration Pump
Vibration Pump Vibration Pump Vibration Pump Vibration Pump

Large Image :  Vibration Pump

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PS-2C PS-2D PS-5/5E
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Vibration Pump

Description
Pumping Noise: 50 (dB) Flow Range: 60(cc/min)
Maximum Pressure: 3.0 (bar)

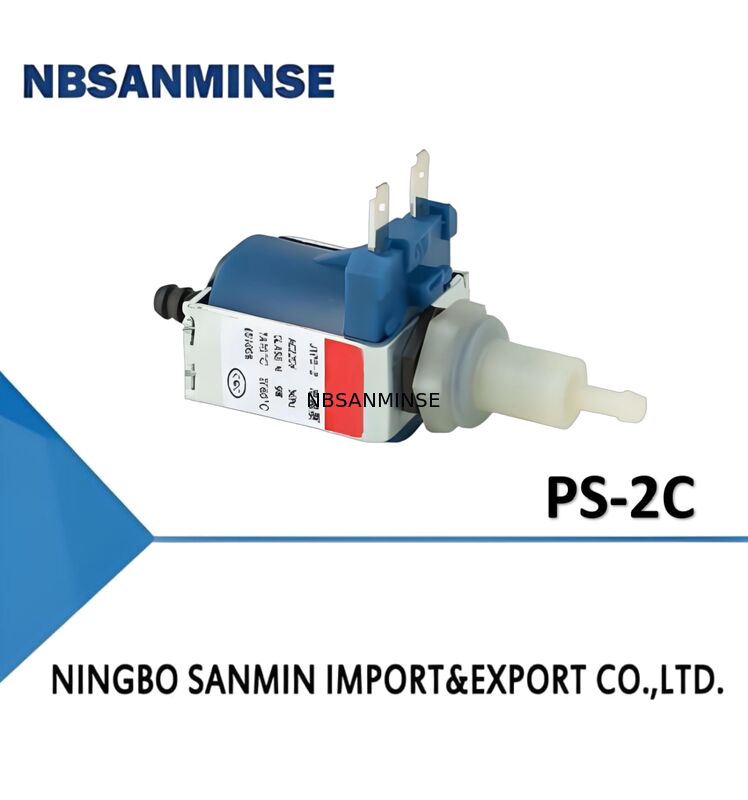

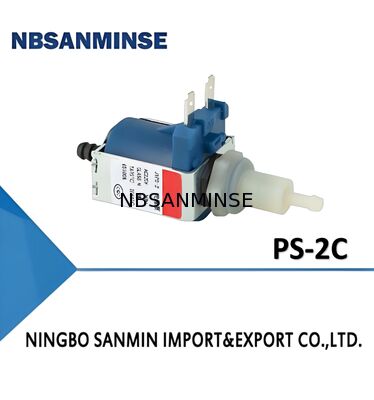

PS-2C(Technical Parameters):

Vibration Pump 0

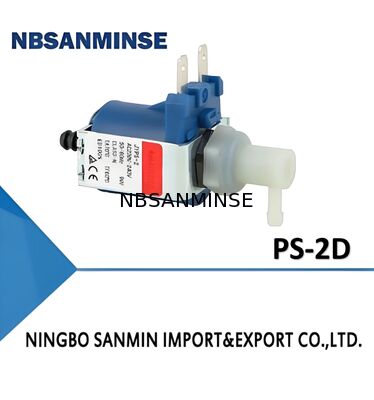

PS-2D(Technical Parameters):

Vibration Pump 1

Model PS-2D
Flow range (+/-15% vol/min) 35-120
Max Pressure (Bar) 3
Power (W) 9
Noise (dB) 50
Terminal 4.8×0.8
Work style ED100%
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-70
Fluid Temp (℃) 5-60
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV, UL,PSE


Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PS-2C PS-2D
V Hz ON/OFF W Maximum Pressure (bar) 3.0 3.0
220-240 50 100% 9 Flow Range (cc/min) 60 60
120 60 100% 9 Pumping Noise (dB) 50 50
110 60 100% 9 Note: Tolerance range for products in this catalog: ±15%
100 60 100% 9

Vibration Pump 2

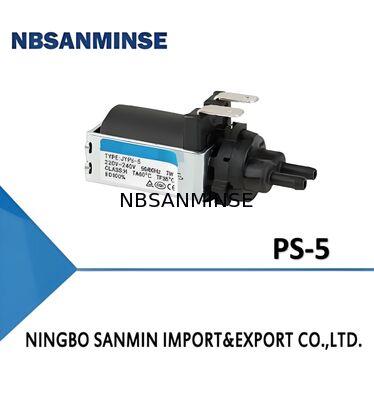

PS-5/5E(Technical Parameters):

Vibration Pump 3

Model PS-5
Flow range (+/-15% vol/min) 10-50
Max Pressure (Bar) 0.35
Power (W) 5
Noise (dB) 45
Work style ED100%
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-60
Fluid Temp (℃) 5-35
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV


Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PS-5
V Hz ON/OFF W Maximum Pressure (bar) 0.3
220-240 50 100% 7 Flow Range (cc/min) 10-50
100-127 50/60 100% 7 Pumping Noise (dB) ≤45

Vibration Pump 4
