Vibration Pump

Large Image : Vibration Pump

Product Details:

Place of Origin:	CHINA
Brand Name:	NBSANMINSE
Certification:	ISO9001
Model Number:	PC-4A PC-4B

Payment & Shipping Terms:

Minimum Order Quantity:	10PCS
Price:	Negotiation
Packaging Details:	Box
Delivery Time:	5-30days
Payment Terms:	L/C,T/T
Supply Ability:	10000PCS

Contact Now

Vibration Pump

Description

Maximum Pressure:	7(bar)	Flow Range:	170(cc/min)
Pumping Noise:	54(dB)	Low Outlet Pressure:	2-4(bar)

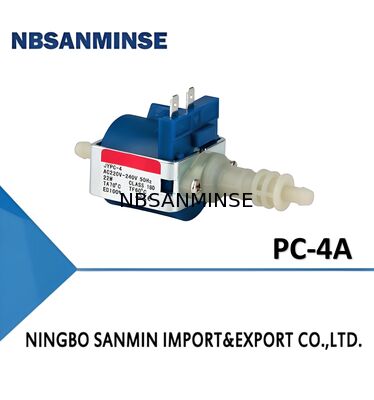

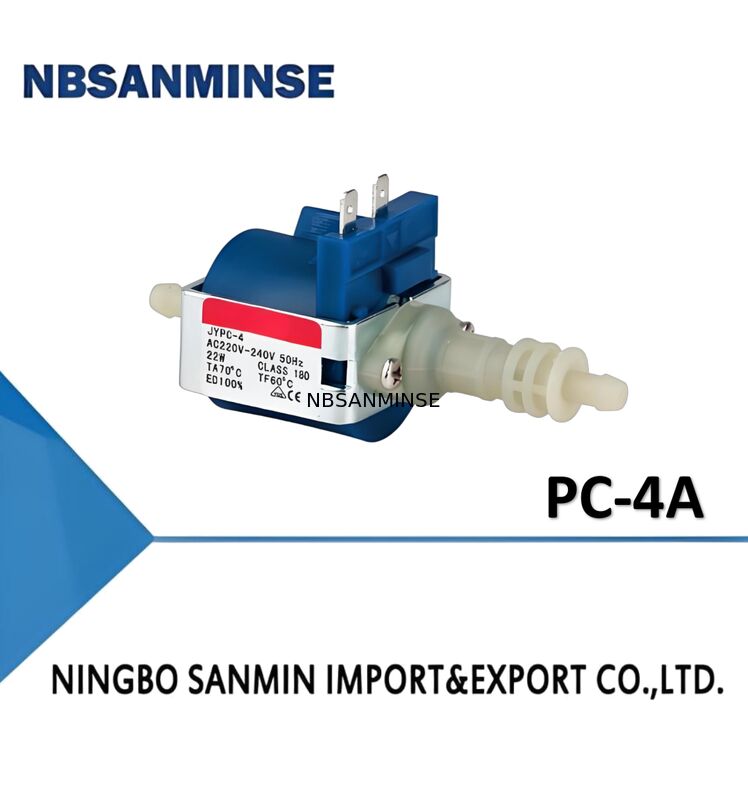

PC-4A(Technical Parameters):

Class H				Water Pump Model
Technical Parameters				Product Specifications / Technical Specifications	PC-4A
V	Hz	ON/OFF	W	Maximum Pressure (bar)	2.5
220-240	50	100%	22	Flow Range (cc/min)	750
120	60	100%	22	Pumping Noise (dB)	54
110	60	100%	22	Note: Tolerance range for products in this catalog: ±10%
100	60	100%	22	Note: Tolerance range for products in this catalog: ±10%

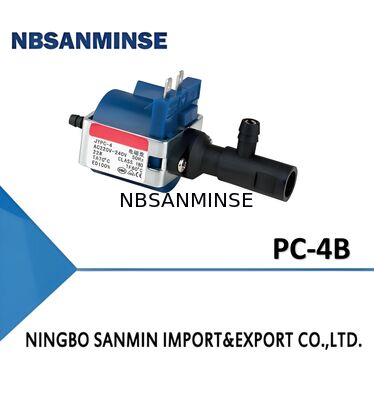

PC-4B(Technical Parameters):

Class H				Water Pump Model
Technical Parameters				Product Specifications / Technical Specifications	PC-4B
V	Hz	ON/OFF	W	Maximum Pressure (bar)	7
220-240	50	100%	22	Flow Range (cc/min)	170
120	60	100%	22	Pumping Noise (dB)	54
110	60	100%	22	Low Outlet Pressure(bar)	2-4bar
100	60	100%	22	Note: Tolerance range for products in this catalog: ±10%
