Vibration Pump

Vibration Pump
Vibration Pump Vibration Pump

Large Image :  Vibration Pump

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PC-506B PC-7
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Vibration Pump

Description
Maximum Pressure: 2(bar) Flow Range: 1900(cc/min)
Pumping Noise: 60(dB)

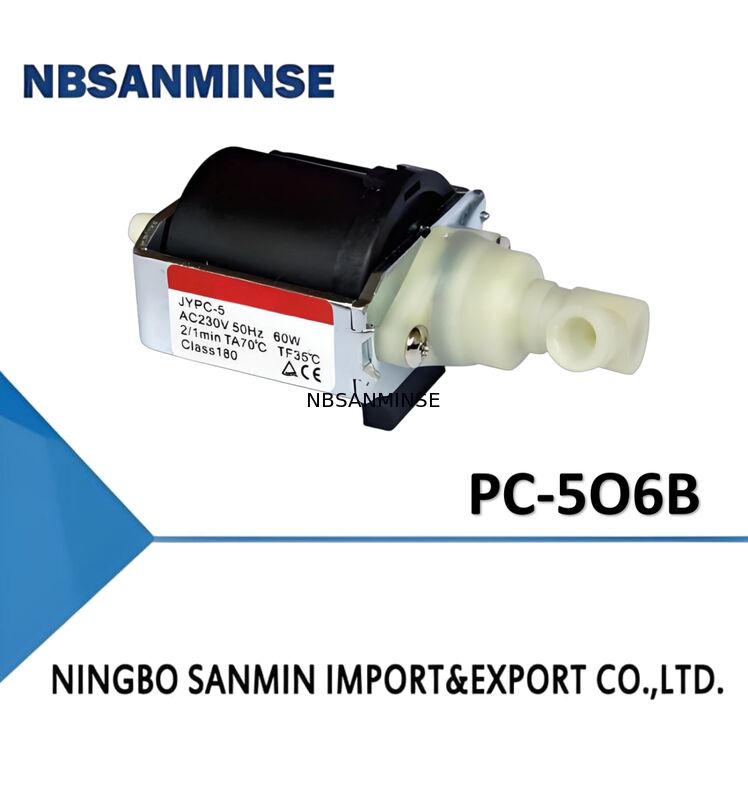

PC-506B(Technical Parameters):

Vibration Pump 0

Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PC-506B
V Hz ON/OFF W Maximum Pressure (bar) 20
220-240 50 100% 22 Flow Range (cc/min) 400
120 60 100% 22 Pumping Noise (dB) 60
110 60 100% 22 Note: Tolerance range for products in this catalog: ±10%
100 60 100% 22


Model PC-506B
Flow range (+/-15% vol/min) 300-500
Max Pressure (Bar) 20
Power (W) 60
Noise (dB) 60
Terminal 6.3×0.8
Work style ED100% 2/1
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-70
Fluid Temp (℃) 5-60
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV, UL,VDE

Vibration Pump 1

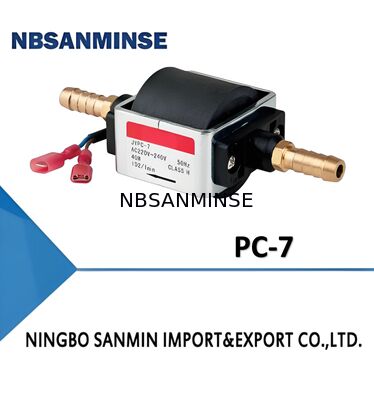

PC-7(Technical Parameters):

Vibration Pump 2

Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PC-7
V Hz ON/OFF W Maximum Pressure (bar) 2
220-240 50 100% 40 Flow Range (cc/min) 1900
120 60 100% 60 Pumping Noise (dB) 60
110 60 100% 60 Note: Tolerance range for products in this catalog: ±10%
100 60 100% 60


Model PC-7
Flow range (+/-15% vol/min) 2000
Max Pressure (Bar) 3
Power (W) 60
Noise (dB) 60
Terminal
Work style  2/1
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-70
Fluid Temp (℃) 5-60
Withstand voltage 1850V/0.35mA/1S
Quality Certification

Vibration Pump 3
