Vibration Pump

Vibration Pump
Vibration Pump Vibration Pump

Large Image :  Vibration Pump

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PC-7A PC-8
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Vibration Pump

Description
Maximum Pressure: 3.5 (bar) Flow Range: 50 (cc/min)
Pumping Noise: 40 (dB)

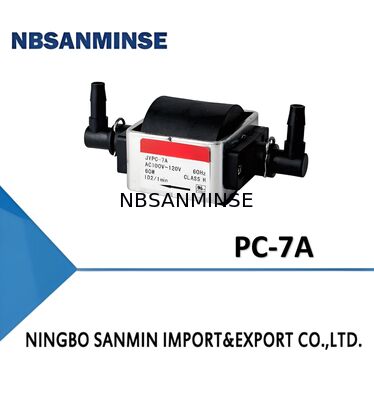

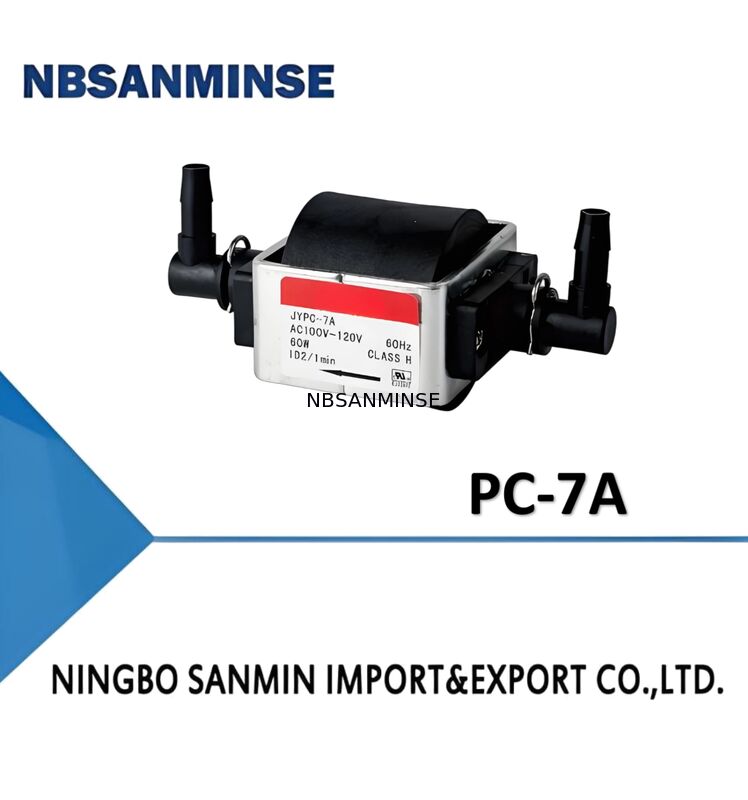

PC-7A(Technical Parameters):

Vibration Pump 0

Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PC-7A
V Hz ON/OFF W Maximum Pressure (bar) 2
220-240 50 100% 40 Flow Range (cc/min) 2400
120 60 100% 60 Pumping Noise (dB) 60
110 60 100% 60 Note: Tolerance range for products in this catalog: ±10%
100 60 100% 60


Model PC-7A
Flow range (+/-15% vol/min) 2000
Max Pressure (Bar) 3
Power (W) 60
Noise (dB) 60
Terminal
Work style  2/1
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-70
Fluid Temp (℃) 5-60
Withstand voltage 1850V/0.35mA/1S
Quality Certification

Vibration Pump 1

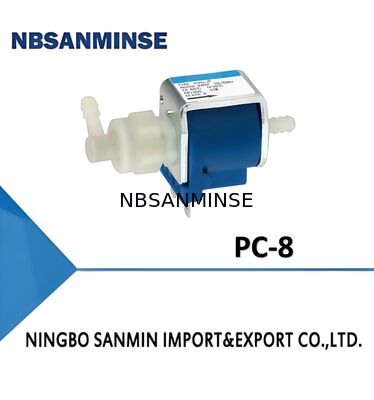

PC-8(Technical Parameters):

Vibration Pump 2

Class H Water Pump Model
Technical Parameters

Product Specifications    /   Technical Specifications

 PC-801 PC-802 PC-803
V Hz ON/OFF W Maximum Pressure (bar) 3.5 3.5 3
220-240 50 100 15 Flow Range (cc/min) 50 85 110
120 60 100 15 Pumping Noise (dB) 40 40 40
110 60 100 15 Note: Tolerance range for products in this catalog: ±10%
100 60 100 15

PC-801

Vibration Pump 3

PC-802

Vibration Pump 4

PC-803

Vibration Pump 5
