Motor pump

Motor pump
Motor pump Motor pump Motor pump Motor pump Motor pump Motor pump

Large Image :  Motor pump

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PC-8A PC-8B PDM-01 PDM-1B PDM-1C PDM-02
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Motor pump

Description
Working Medium: Water / Air Environmental Temp: ≤50℃
Connection Type: Plug-in Type Rated Voltage: DC24V

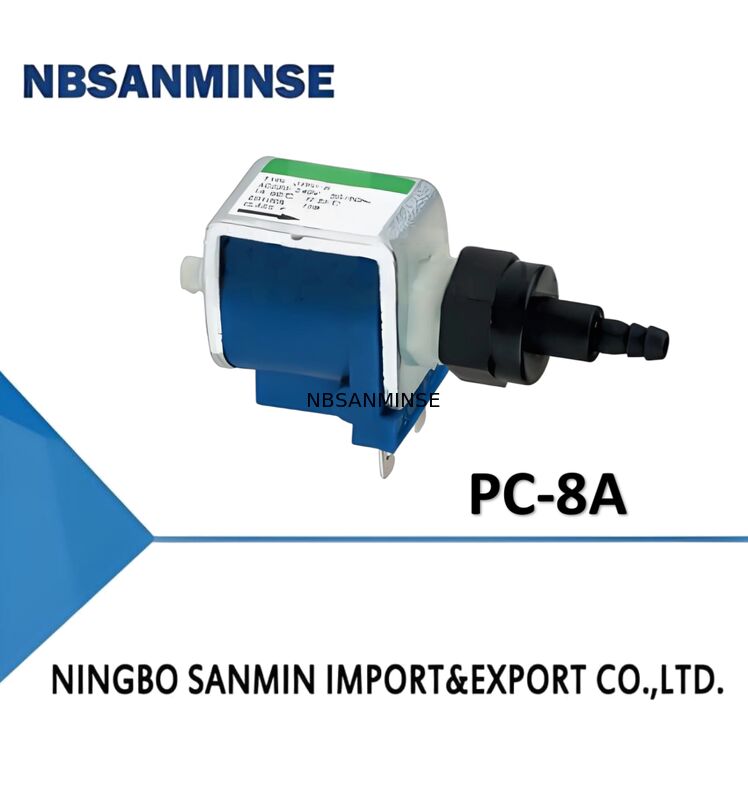

PC-8A(Technical Parameters):

Motor pump 0

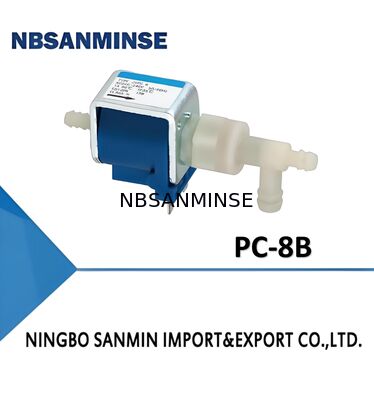

PC-8B(Technical Parameters):

Motor pump 1

Model PC-8B
Flow range (+/-15% vol/min) 50-140
Max Pressure (Bar) 3
Power (W) 15
Noise (dB) 15
Terminal 4.8×0.6
Work style ED100%
Insulation class H
Rated voltage AC100-127V/50  60Hz, AC220-240V/50  60Hz
Environmental Temp (℃) 5-80
Fluid Temp (℃) 5-35
Withstand voltage 1850V/0.35mA/1S
Quality Certification CQC, CE, TUV, UL

PDM-01(Technical Parameters):

Motor pump 2

Working Medium Water
Environmental Temperature ≤60℃
Connection Type working Medium
Rated Voltage DC6V, DC12V,DC24V


PDM-1B(Technical Parameters):

Motor pump 3

Working Medium Water / Air
Environmental Temperature ≤50℃
Connection Type working Medium
Rated Voltage Standard: DC12V, DC24V / Optional: DC3-36V

PDM-1C(Technical Parameters):

Motor pump 4

Working Medium Water
Environmental Temperature ≤50℃
Connection Type working Medium
Rated Voltage DC3.7V,DC6V

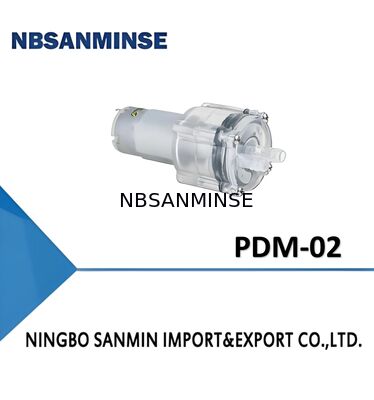

PDM-02(Technical Parameters):

Motor pump 5

Working Medium Water
Environmental Temperature ≤50℃
Connection Type working Medium
Rated Voltage DC24V
