Motor pump

Motor pump
Motor pump Motor pump Motor pump Motor pump

Large Image :  Motor pump

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PW-01 PW-03 PW-2F01 PW-04
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Motor pump

Description
Connection Type: NPT3/8 Rated Voltage: DC24V
Flow Rate: ≥1500 Ml/min @ 0.5 MPa Amb. Temp: 3-60℃
Pressure: 0.85-1.05 MPa Specification: 150 Gallons

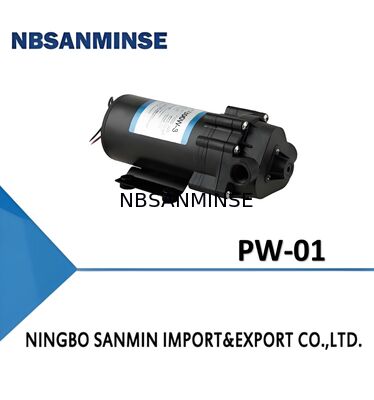

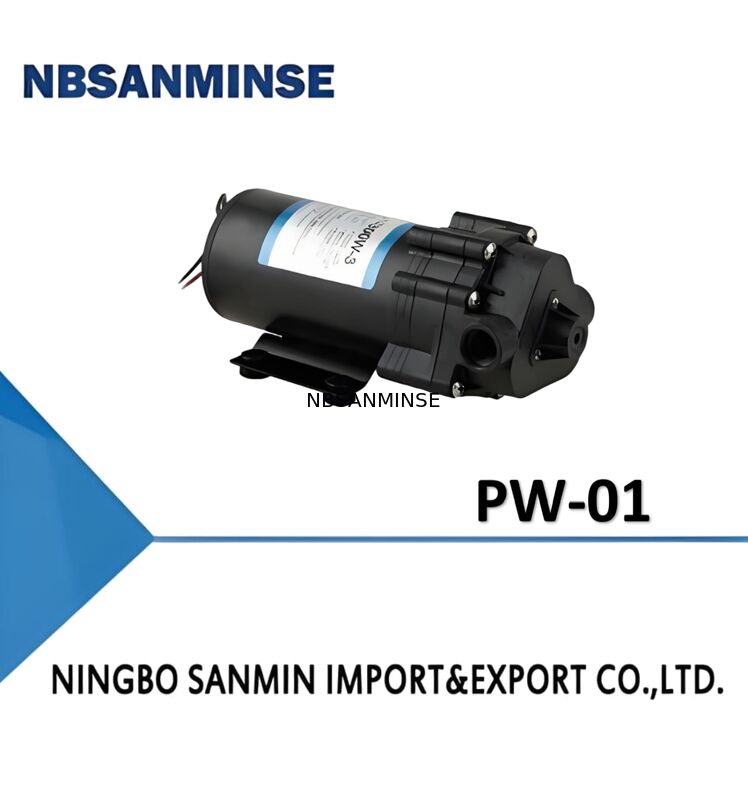

PW-01(Technical Parameters):

Motor pump 0

Specification 400 Gallons
Pressure 0.85-1.05 MPa
Working medium Non-corrosive clean water
Fluid Temperature 3-50℃
Amb. Temperature 3-60℃
Flow Rate ≥3000 ml/min @ 0.5 MPa
Rated Voltage DC24V, DC36V
Connection Type NPT3/8


Specification
Item 400 gallons
Flow Rate ≥3000 ml/min at 0.5 MPa
Rated Voltage DC24V / DC36V
Compatible Medium Non-corrosive clean water
Ambient Temperature 3–50 ℃
Medium Temperature 3–60 ℃
Shut-off Pressure 0.85–1.05 MPa
Connection Type NPT3/8
Service Life 2000 hours

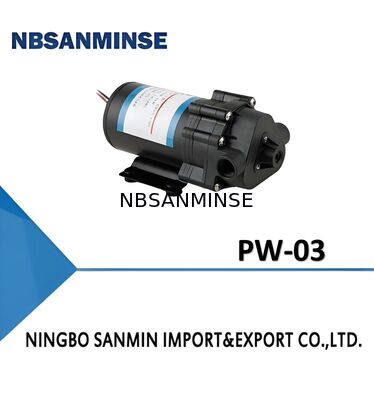

PW-03(Technical Parameters):

Motor pump 1

Specification 200 Gallons
Pressure 0.85-1.05 MPa
Working medium Non-corrosive clean water
Fluid Temperature 3-50℃
Amb. Temperature 3-60℃
Flow Rate ≥1900 ml/min @ 0.5 MPa
Rated Voltage DC24V
Connection Type NPT3/8


Specification
Item 200 gallons
Flow Rate ≥1900 ml/min at 0.5 MPa
Rated Voltage DC24V
Compatible Medium Non-corrosive clean water
Ambient Temperature 3–50 ℃
Medium Temperature 3–60 ℃
Shut-off Pressure 0.85–1.05 MPa
Connection Type NPT3/8
Service Life 2000 hours

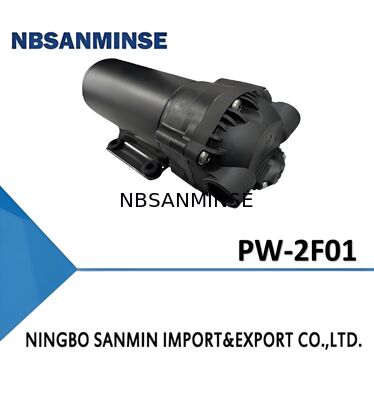

PW-2F01(Technical Parameters):

Motor pump 2

Specification 600 Gallons
Pressure 0.85-1.05 MPa
Working medium Non-corrosive clean water
Fluid Temperature 3-50℃
Amb. Temperature 3-60℃
Flow Rate ≥3200 ml/min @ 0.5 MPa
Rated Voltage DC24V
Connection Type NPT3/8

PW-2F02

Specification 300 Gallons
Pressure 0.85-1.05 MPa
Working medium Non-corrosive clean water
Fluid Temperature 3-50℃
Amb. Temperature 3-60℃
Flow Rate ≥2800 ml/min @ 0.5 MPa
Rated Voltage DC24V, DC36V
Connection Type NPT3/8

PW-2F03

Specification 300 Gallons
Pressure 0.85-1.05 MPa
Working medium Non-corrosive clean water
Fluid Temperature 3-50℃
Amb. Temperature 3-60℃
Flow Rate ≥2100 ml/min @ 0.5 MPa
Rated Voltage DC24V
Connection Type NPT3/8

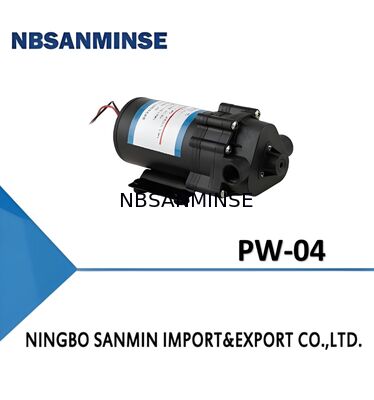

PW-04(Technical Parameters):

Motor pump 3

Specification 150 Gallons
Pressure 0.85-1.05 MPa
Working medium Non-corrosive clean water
Fluid Temperature 3-50℃
Amb. Temperature 3-60℃
Flow Rate ≥1500 ml/min @ 0.5 MPa
Rated Voltage DC24V
Connection Type NPT3/8


Specification
Item 150 gallons
Flow Rate ≥1500 ml/min at 0.5 MPa
Rated Voltage DC24V
Compatible Medium Non-corrosive clean water
Ambient Temperature 3–50 ℃
Medium Temperature 3–60 ℃
Shut-off Pressure 0.85–1.05 MPa
Connection Type NPT3/8
Service Life 2000 hours
