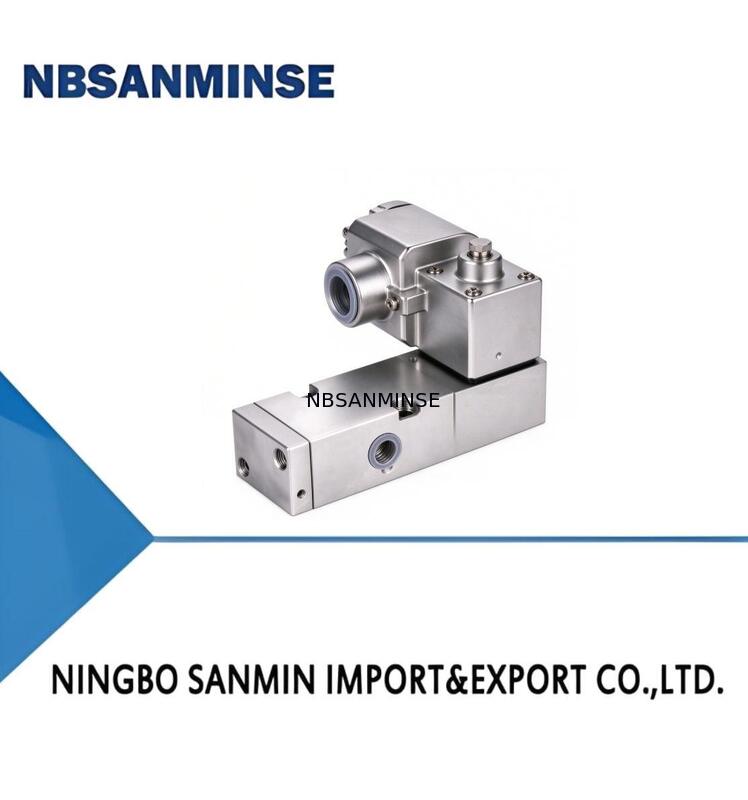

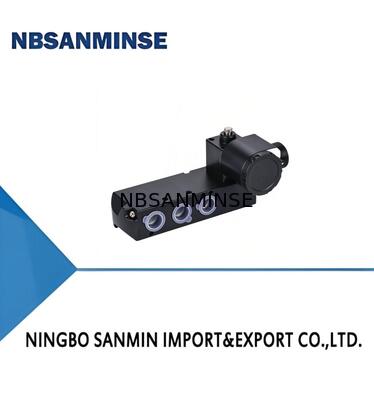

LV600 Series(PB Explosion-Proof type)

Introduce:

LV600 series solenoid valve, solenoid valve are suitable for use in conjunction with pneumatic control valve and piston actuator in most of process production. On this occasion, the solenoid valve only plays an auxiliary function, but it is very important. Especially in the process production chain, the solenoid valve plays a very important role. Such as when the gas source fails, when the process production safety requires for valve action, most of them need to be controlled by solenoid valves. It is widely used in oil, natural gas and chemical industry and can also meet the application requirements of fast response and high-frequency service life on industrial automation control systems.

Features:

IEC61508 functional safety standard compliance, TÜV certified Safety Integrity Level SIL3
Single and dual solenoid constructions
Static sealing design
Explosion-proof Ex d certified
Low power consumption available
Free direction for solenoid operator or four fixed directions
Manual operators available
External/Internal pilot available
Threaded port connections and NAMUR interface

Function:

Technical Specifications:

ITEM	Single electronic control/dual electronic control
PILOT CATEGORY	Pilot type
MEDIA	Air/lnert Gas
AMBIENT TEMPERATURE RANGES	-60℃ ~ 60℃
MEDIA TEMPERATURE	-60℃~ 60℃
OPERATING PRESSURE DIFFERENTIAL	29 to 145 psi(2.0 to 10 bar)
FLOW COEFFICIENT	1.11Cv(1.06Kv)m³/h15.92Kw/m-in1/4"  3.85Cv(3.30Kv)m³/h55.00Kw/m-in1/2"  1.11Cv(1.06Kv)m³/h15.92Kw/m-in1/4"  3.85Cv(3.30Kv)m³/h55.00Kw/m-in1/2"
VALVE CONSTRUCTION	Spool Structure or Jacket structure
BODY MATERIAL	Aluminium/Stainless Steel
APPLICATION ENVIRONMENT	Indoor/Outdoor
INSTALLATION	Any Position
IP RATED	IP65
EXPLOSION PROOF APPROVALS	Ex db IIC T6Gb Ex mb tb ⅢC T80℃

Solenoid Operators:

LV600 PBS DFDS SC N 14NB 5 P 1 ST * 24VDC:

Special options are available upon the equipment.

Refer to the product datasheet for details.
