L Series (Filter & Regulator)

L Series (Filter & Regulator)
L Series (Filter & Regulator) L Series (Filter & Regulator)

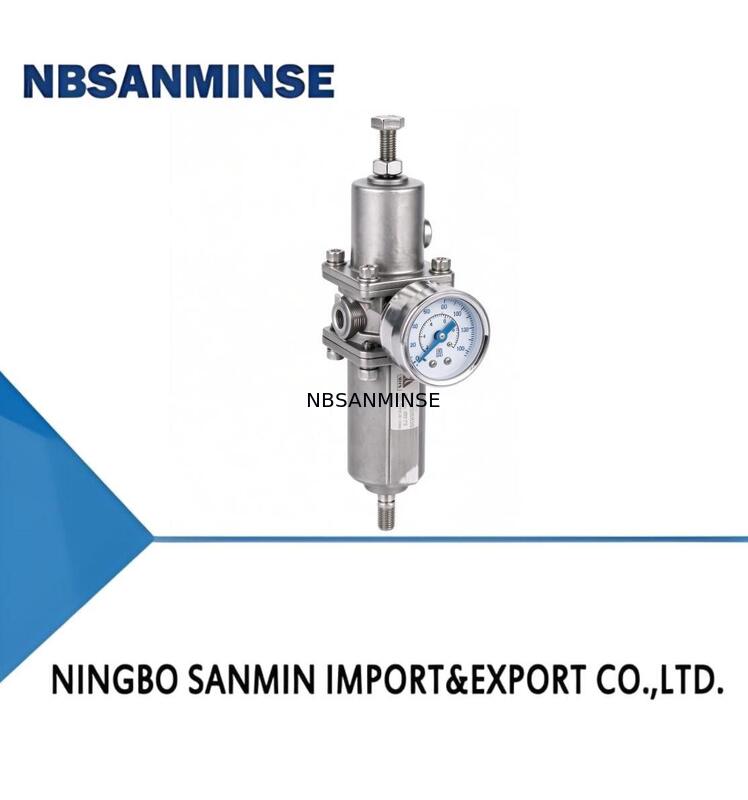

Large Image :  L Series (Filter & Regulator)

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO
Model Number: L Series (Filter & Regulator)
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

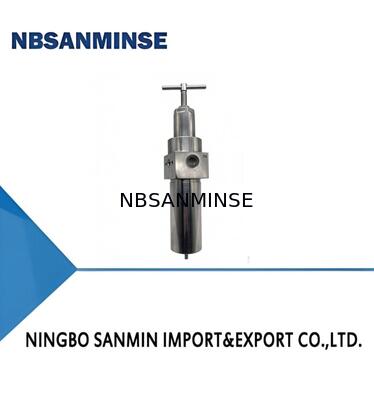

L Series (Filter & Regulator)

Description
Material: 316L Stainless Steel Pressure: 0~10bar
Bracket: With Bracket FILTER ELEMENT: 40μm (Standard)
CUP CAPACITY: 100cm³ PORT SIZE: 1/4"NPT

Features

IEC 61508 functional safety standard compliance, TÜV certified Safety Integrity Level SIL3

Regulator with integral filter constructions

Reliable and long life, ease of maintenance

Compliant with ASTM A351/NACE MR0175 requirements

Automatic condensate drain option is available

L 57SS 14N 010 B PG M 1 LT *

PRODUCT SERIES L L Series
Material 57SS 316L stainless steel
Interface size 14N
12N
1N		 1/4NPT
1/2NPT
1"NPT
Pressure 010 0~10bar
015 0~15bar
Bracket B With bracket
pressure gauge PG With pressure gauge
Drainage M
A		 Manual drain
Auto drain
Filter element 1
2
3		 40μm
25μm
5μm
Temperature ST
OL
LT		 (-20℃~ +60℃)
(- 40℃~+60℃)
(-60℃~ +60℃)
Special * Special on Request

Function

ITEM L57SS-14N L57SS-12N L57SS-1N
PORT SIZE 1/4"NPT 1/2"NPT 1"NPT
OUTLET PRESSURE 7.3-174PSIG(0.5-12bar)
CUP CAPACITY 100cm³ 110cm³ 200cm³
OPERATION PRESSURE 290psi(20bar)maximum
TEMPERATURE RANGE -60°to 185°F(-60℃ to 85℃)
FILTER ELEMENT 40μm (Standard)
DRAIN Manual drain(default)/Auto drain

Function:

L Series (Filter & Regulator)

Flow Charateristics:

L Series (Filter & Regulator)
