NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control
NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control

Large Image :  NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: 4H210 / 230 / 310 / 410
Payment & Shipping Terms:
Minimum Order Quantity: 10 PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control

Description
Port Size: 1/8" , 1/4" , 3/8" , 1/2" Material: Alloy
Model Number: 4H210 / 230 / 310 / 410 Standard Or Nonstandard: Standard
Working Medium: 40 Micron Filterde Air Working Pressure Range: 0 ~ 0.8 MPa
Structure: Hand Pull Valve Power: Pneumatic
Pressure: Low Pressure Temperature Of Media: Normal Temperature
Media: Air Motion Pattorn: Direct Drive Type
Operating Temperature Range: 0 ~ 60 Degree Centigrade Application: Automatic Pressure Relief Protection Device
Highlight:

pneumatic air valve

,

pneumatic directional control valve

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control



Pneumatic item pressure range is 0-8bar(0.8Mpa)
Please don't work more than indicated pressure range.
Series : 4H :
Two ( Three ) - Position Five - may Hand - Pull Valve

Series Code :
2 : 200 Series , 3 : 300 Series , 4 : 400 Series

Number of Places :
10 : Single - Head Double - Position , 30 : Single - head Three - Position

Joint Pipe Bore :
06 : G1/8" , 08 : G1/4" , 10 : G3/8" , 15 : G1/2"

Blank : Three - Position Five - Way Reser Type

Specification

Model
4H210-06
4210-08
4H230-08
4H310-08
4310-10
4H410-15
Working Medium
40 Micron Filtered Air
Motion Pattern
Direct Drive Type
Effective Section Area
14mm2;( CV=0.78)
16mm2; (CV=0.89)
12mm2;(CV=0.67)
25mm2;(CV=1.4)
30mm2;(CV=1.68)
50mm2;(CV=2.79)
Joint Pipe Bore
Air Inlet = Air Outlet = Exhaust=G1/8”
Air Inlet = Air Outlet = G1/4” Exhaust = G1/8”
Air Inlet = Air Outlet = Exhaust = G1/4”
Air Inlet = Air Outlet = G1/8” Exhaust = G1/4”
Air Inlet = Air Outlet = Exhaust = G1/2”
Working – Pressure Range
0 ~ 0.8 MPa
Operating Temperature Range
0~60℃

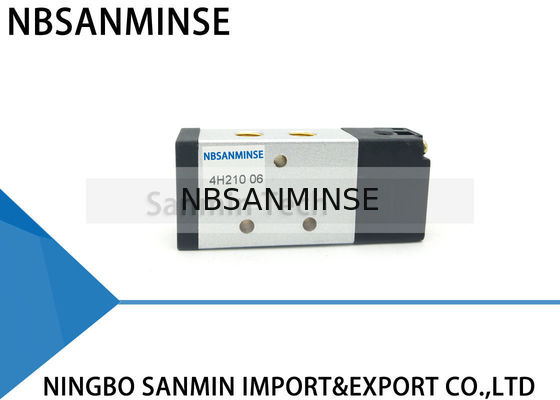

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control 0

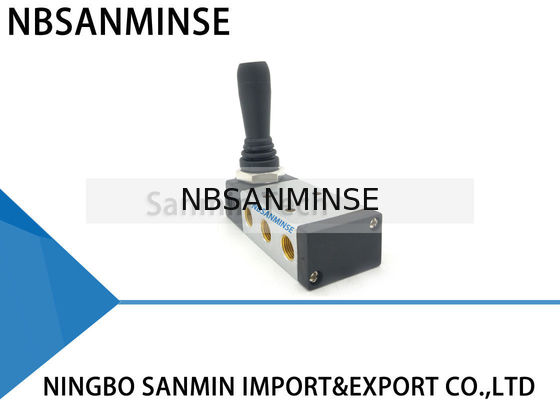

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control 1

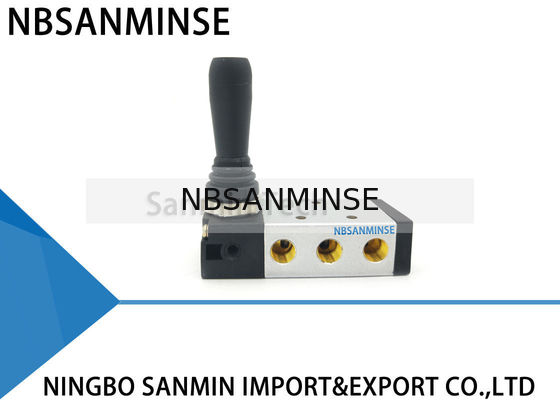

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control 2

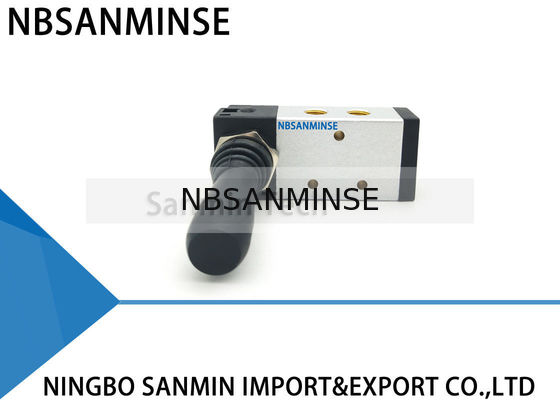

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control 3

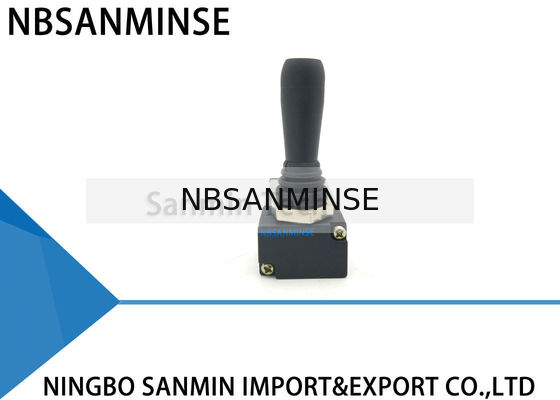

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control 4

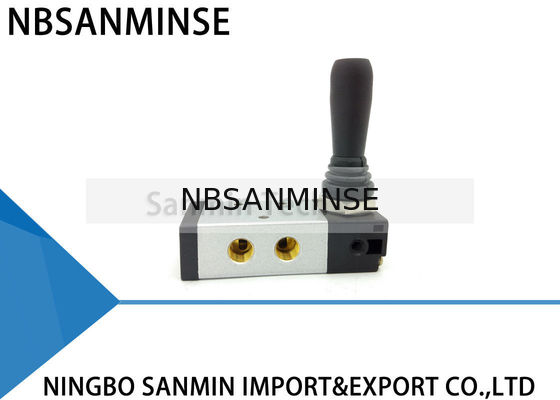

NBSANMINSE 4H210 4H310 4H430 Pull Valve 1/8 1/4 3/8 1/2 Two Position Three Position Five Way Three Position Air Control 5
