Aluminum Housing Explosion Proof Solenoid Pulse Valve 55°C 0.3-0.7Mpa 19W
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
Minimum Order Quantity : | 20 | Price : | Negotiation |
---|---|---|---|
Packaging Details : | Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice | Delivery Time : | Negotiation |
Supply Ability : | 10000 PCS |
Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
---|---|---|---|
Certification: | ISO9001 | Model Number: | QG - Z - 15 / 20 / 25 / 40S / 50S /62S /76S |
Detail Information |
|||
Pressure: | 0 . 3 - 0 . 6MPa | Temperature: | - 25 ~ 60 ℃ |
---|---|---|---|
Relative Humidity: | ≤ 85 % | Medium: | Clean Air |
Voltage: | AC220V / DC24V / AC110V / AC24V Customized | Body: | ADC 12 Die Cast |
Port Size: | G1/2 G3/4 G1 G1-1/2 G2 G2-1/2 G3 | ||
Highlight: | electromagnetic pulse valve,pulse air valve |
Product Description

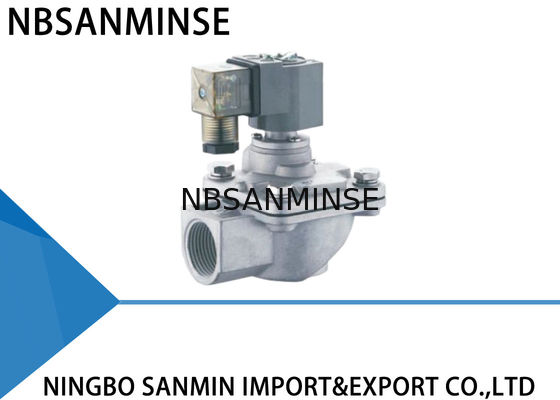

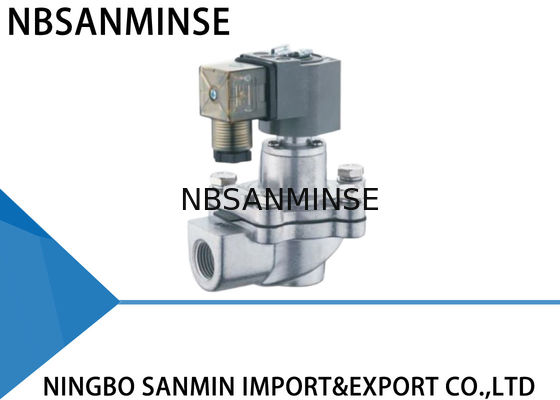

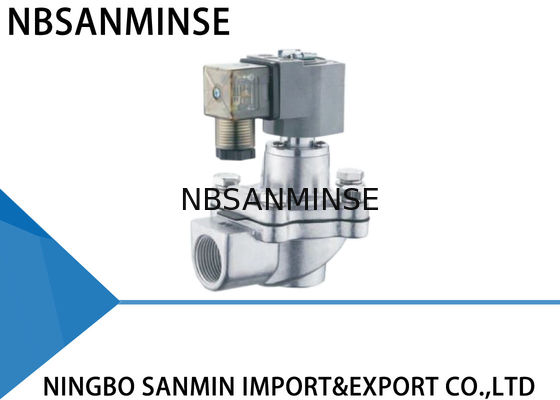

Sanmin QG-Z-15 Solenoid Valve Pulse Jet Valve Pressure 0.3MPa - 0.6MPa Dust Proof Baghouse application GOYEN Type
Technical Parameter
Right angle | Embedded | Inline | Plug | |
Design-pressure | 0.3~0.8MPa | 0.2~0.8MPa | 0.3~0.8MPa | 0.2~1.0MPa |
Working-pressure | 0.3~0.6MPa | 0.2~0.6MPa | 0.3~0.6MPa | 0.2~0.6MPa |
Ambient Temperature | -25~60℃ Customized for lower or higher temperature | |||
Relative Humidity | ≤85% | |||
Working Medium | Clean Air | |||
Voltage | AC220V/DC24V/AC110V/AC24V Customized | |||
Protection Class | IP65 | |||
Diaphragm Life | Over One Million Cycles | |||
Cv/Kv | Call us for detail |
Material Construction :
Body : ADC12 die cast
Armature : 430 FR stainless steel
Diaphragm : Nitrile or Viton
Spring : 321 stainless steel
Fasteners : 302 stainless steel
Use period | Failure phenomena | Possible Reason | Troubleshooting |
During installation and commissioning | The valves cannot all be opened, but the leading part does act. | Check the gas dome pressure to see if it is too low. | Check the leakage |
Some valves do not work, but the others are normal. | Check the valve coil connection and coil | Replace the accessories | |
The valves cannot all be closed. There is leakage. There is no way to establish a gas dome. | Y-valve. Some valves for the same gas dome are leaking, thus causing leakage for all the valves. | Check the leakage | |
Z-valve. The valve inlet and blowing muzzle are installed backwards. | Re-install | ||
Some valves cannot be closed. There is leakage. | There is some dirt or debris on the membrane, ii is blocking the moving iron core. | Clean the membrane and check that the membrane is complete. Check the moving iron core and air lock. | |
A valve closing is slowly. | The membrane orifice is blocked. | Dredge the membrane orifice | |
During use period |
Some valves are leaking. The membrane cannot close tightly and the valve is always open a little. |
There is some dirt or debris on the membrane, the leading part is damaged. Moving iron core is blocked. | Clean the membrane and check that the membrane piece is complete. Check the moving iron core and the air lock. Replace the accessories if necessary. |
Coil is hot and burned out. | It has been turned on for too long. | Check the working condition of the control system. | |
Voltage exists but the valve does not operate. | Membrane is damaged and the orifice is blocked. | Replace the accessories in time. | |
Ambient temperature is below -20℃. The valve is leaking and cannot open. | Ambient temperature is too low and here is frost in the valve. | Pay attention to insulation and maintaining proper temperatures. |
Our products are high quality with 12 month guarantee ,and support paypal payment.
