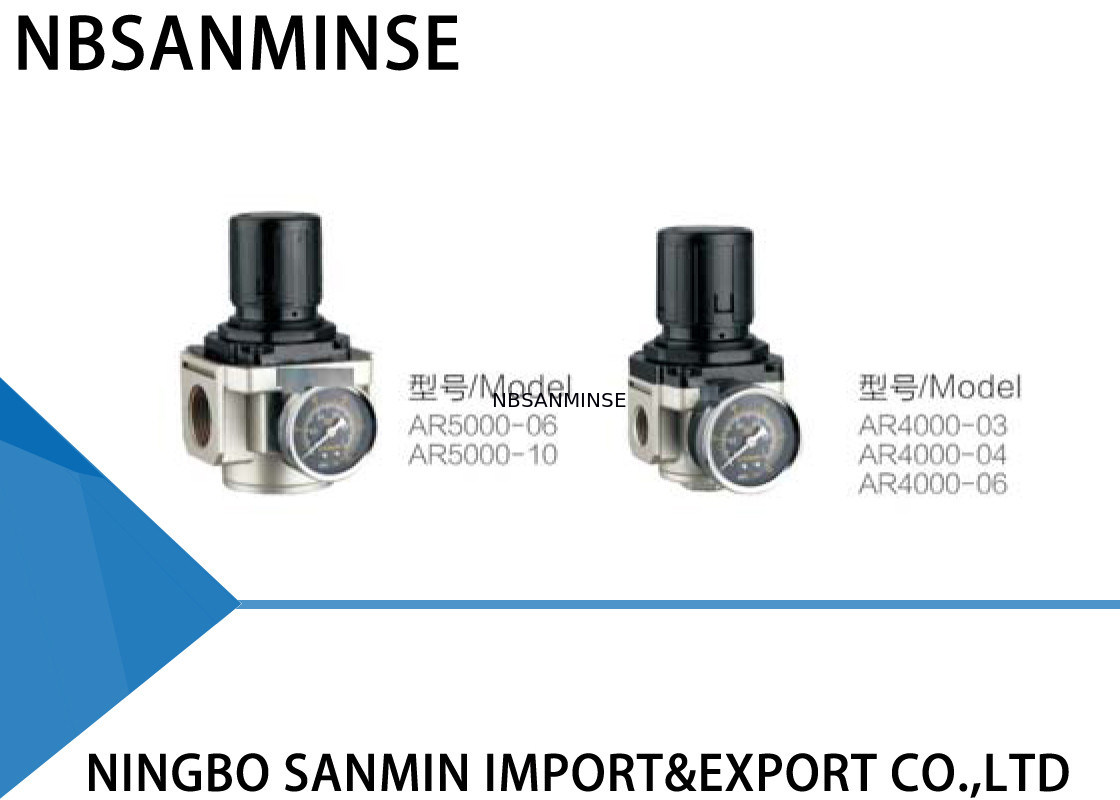

AR Sanmin Pneumatic Air Pressure Regulator 100% Water Test For Automatic Machine

Certification
China Ningbo Sanmin Import And Export Co.,Ltd. certification
China Ningbo Sanmin Import And Export Co.,Ltd. certification
I'm Online Chat Now

AR Sanmin Pneumatic Air Pressure Regulator 100% Water Test For Automatic Machine

AR Sanmin Pneumatic Air Pressure Regulator 100% Water Test For Automatic Machine
AR Sanmin Pneumatic Air Pressure Regulator 100% Water Test For Automatic Machine AR Sanmin Pneumatic Air Pressure Regulator 100% Water Test For Automatic Machine

Large Image :  AR Sanmin Pneumatic Air Pressure Regulator 100% Water Test For Automatic Machine

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMIN
Certification: IS09001
Model Number: AR
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Supply Ability: 10000PCS

AR Sanmin Pneumatic Air Pressure Regulator 100% Water Test For Automatic Machine

Description
Type: Air Source Equipment Model: 01 02 03 04 06 10
Port Size: G1/8 , G1/4 , G3/8 , G1/2 , G3/4 , G1 Temperature: -10 ~ 60 C
Medium: Air Pressure Range: 0.05 ~ 0.85 Mpa
Highlight:

regulator filter lubricator

,

industrial air filter regulator

AR Sanmin Pneumatic Air Pressure Regulator 100% Water Test For Automatic Machine





All FRL units will send by randomly the color and filter,Normally color is black ,orange ,blue botton .Normally filter is white (plastic) or Brass.



• Stable operation,easy to adjustable

• 100% water test

• Long service life

• Beautiful appearance

• Widely used in automatic machine



Specification

Model
AR2000-01/02
AR3000-02/03
AR4000-03/04
AR4000-06
AR5000-06/10
Port Size G
1/8” 1/4”
1/4” 3/8”
3/8” 1/2”
3/4”
3/4” 1”
Pressure Gauge Size G
G1/8”
G1/4”
Working Medium
Air
Pressure Range
0.05 ~ 0.85 Mpa
Rated Flow (L/min)
550
2500
6000
6000
8000
Applicable Temperature
-10 ~ 60 C
Type of valve
Overflow Type

Why choose us



1: One year quality guarantee
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .


FAQ


Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



We have AC5000 - 06 , AC5000 - 10 , AC4000 - 03 , AC4000 - 04 , AC4000 - 06 , AC3000 - 02 ,
AC3000 - 03 , AC2000 - 01 , AC2000 - 02 , AC5010 - 06 , AC5010 - 10 , AC4010 - 03 , AC4010 - 04 ,
AC4010 - 06 , AC3010 - 02 , AC3010 - 03 , AC2010 - 01 , AC2010 - 02 , AF5000 - 06 , AF5000 - 10 ,
AF4000 - 03 , AF4000 - 04 , AF4000 - 06 , AF3000 - 02 , AF3000 - 03 , AF2000 - 01 , AF2000 - 02 ,
AR5000 - 06 , AR5000 - 10 , AR4000 - 03 , AR4000 - 04 , AR4000 - 06 , AR3000 - 02 , AR3000 - 03 ,
AR2000 - 01 , AR2000-02 , AW5000 - 06 , AW5000 - 10 , AW4000 - 03 , AW4000 - 04 , AW4000 - 06 ,
AW3000 - 02 , AW3000 - 03 , AW2000 - 01 , AW2000 - 02 , AL5000 - 06 , AL5000 - 10 , AL4000 - 03 ,
AL4000 - 04 , AL4000 - 06 , AL3000 - 02 , AL3000 - 03 , AL2000 - 01 , AL2000 - 02 .

AC200A - 01 ` 02 , AC300A - 02 ` 03 , AC400A - 03 ` 04 , AC500A - 06 ` 08 , AC600A - 06 ` 08 ,
AC201A - 01 ` 02 , AC301A - 02 ` 03 , AC401A - 03 ` 04 , AC501A - 06 ` 08 , AC601A - 06 ` 08 ,
AW200A - 01 ` 02 , AW300A - 02 ` 03 , AW400A - 03 ` 04 , AW500A - 06 ` 08 , AW600A - 06 ` 08 ,
AF200A , AF300A , AF400A , AF500A , AF600A , AR200A , AR300A , AR400A , AR500A , AR600A ,
AL200A , AL300A , AL400A , AL500A , AL600A .
