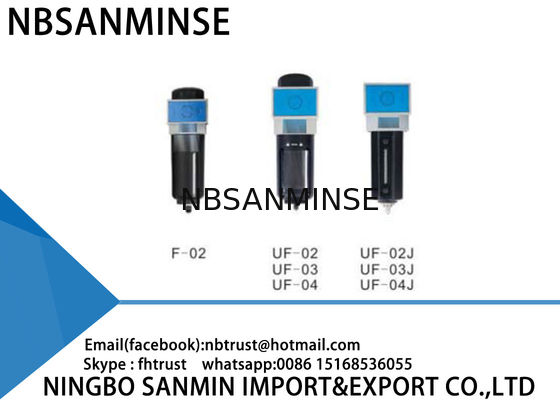

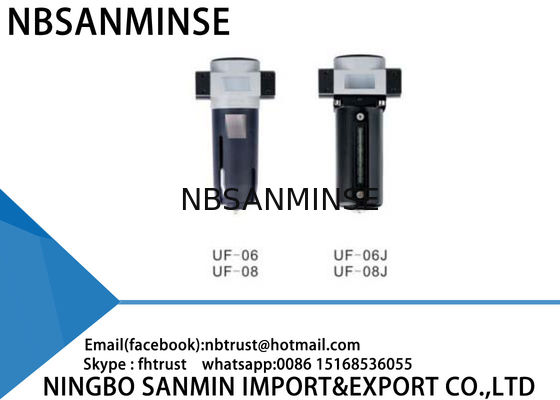

F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body

F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body
F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body

Large Image :  F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: F / UF
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Bag
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS

F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body

Description
Type: Air Source Equipment Model Number: F / UF
Model: 02 , 02J , 03 , 03J , 04 , 04J , 06 , 08 Port Size: 1 / 4 , 3 / 8 , 1 / 2 , 3 / 4 , 1
Temperature: - 10 ~ 60 Medium: Air
Highlight:

regulator filter lubricator

,

industrial air filter regulator

F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body







Specifications



Model UF - 02 UF - 03 UF - 04 UF - 06 UF - 08
Port Size 1 / 4 “ 3 / 8 “ 1 / 2 “ 3 / 4 “ 1 “
Fluid Compressed air
Body material Aluminum die - cast
Bowl material Polycarbonate ( Standard ) , Anti – acid & alkali bowl Option ) , Aluminum bowl ( Option )
Filtration PE : 5um ( Standard ) , 40um ( Option ) Sintered brass ( Option ) : 5 um , 40um
Operating pressure range 0 . 5 ~ 10 kgf / cm ²
Proof pressure ( Standard bowl ) 15 kgf / cm ²
Max . flow rate l / min ( ANR ) 2440 2450 3030 8250 8860
Ambient temperature - 10 ℃ ~ 60 ℃
Filter bowl capacity 105cc 210cc
Standard drain Semi – auto drain ( Drain below 0 . 5 kgf / cm ² )
Net Weight 530g ( W / I aluminum bowl 830g ) 1250g








Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection




FRL - 02 , UFRL - 02 , UFRL - 03 , UFRL - 04 , UFRL - 02J , UFRL - 03J , UFRL - 04J , UFRL - 06 ,

UFRL - 08 , UFRL - 06J , UFRL - 08J , FR / L - 02 , UFR / L - 02 , UFR / L - 03 , UFR / L - 04 ,

UFR / L - 02J , UFR / L - 03J , UFR / L - 04J , UFR / L - 06 , UFR / L - 08 , UFR / L - 06J , UFR / L - 08 ,

FR - 02 , UFR - 02 , UFR - 03 , UFR - 04 , UFR - 02J , UFR - 03J , UFR - 04J , UFR - 06 , UFR - 08 ,

UFR - 06J , UFR - 08J , F - 02 , UF - 02 , UF - 03 , UF - 04 , UF - 02J , UF - 03J , UF - 04J , UF - 06 ,

UF - 08 , UF - 06J , UF - 08J , R - 02 , UR - 02 , UR - 03 , UR - 04 , UR - 06 , UR - 08 , L - 02 , UL - 02 ,

UL - 03 , UL - 04 , UL - 02J , UL - 03J , UL - 04J , UL - 06 , UL - 08 , UL - 06J , UL - 08J .




F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body 0F / UF Filter Lubricator Regulator High Performance With Aluminum Die Cast Body 1
