| Place of Origin: | NINGBO |
| Brand Name: | NBSANMINSE |
| Certification: | ISO9001 |
| Model Number: | L / UL |
| Minimum Order Quantity: | 20 |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Plastic Bags , Boxes , Carton , Pallet or As Customer Advice |
| Delivery Time: | Negotiation |
| Supply Ability: | 9985 PCS Year |
| Type: | Air Source Equipment | Model Number: | L / UL |
|---|---|---|---|
| Model: | 02 , 02J , 03 , 03J , 04 , 04J , 06 , 08 | Port Size: | 1 / 4 , 3 / 8 , 1 / 2 , 3 / 4 , 1 |
| Temperature: | - 10 ~ 60 | Medium: | Air |
| High Light: | regulator filter lubricator,pump lubrication system |
||

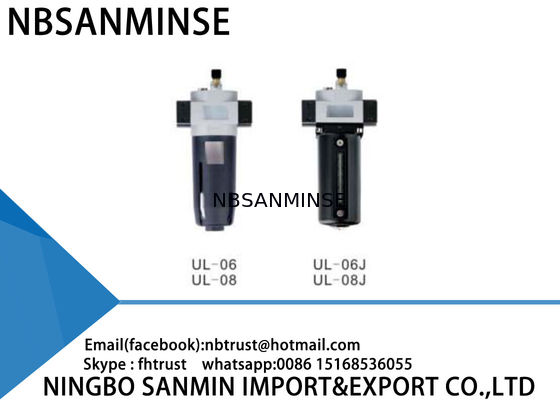

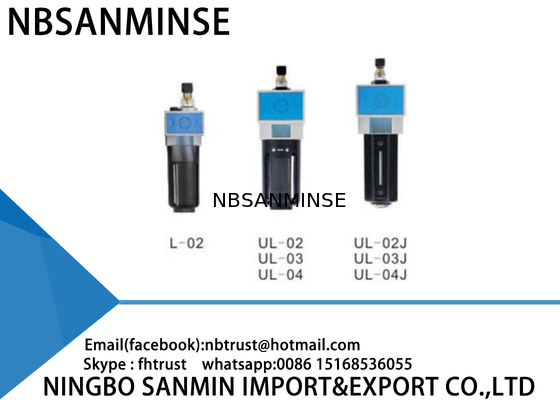

L / UL Sanmin Air Line Filter Regulator Lubricator , Air Compressor Regulator Filter
Lubricator oil can be replenished without stopping air supply.
Oil spray in mist ensures good lubrication for machines.
Specifications :
| Model | UL - 02 | UL - 03 | UL - 04 | UL - 06 | UL - 08 |
| Port Size | 1 / 4 “ | 3 / 8 “ | 1 / 2 “ | 3 / 4 “ | 1 “ |
| Fluid | Compressed air | ||||
| Body material | Aluminum die - cast | ||||
| Bowl material | Polycarbonate ( Standard ) , Anti – acid & alkali bowl ( Option ) , Aluminum bowl ( Option ) | ||||
| Operating pressure range | 0 . 5 ~ 10kgf / cm ² | ||||
| Proof pressure ( Standard bowl ) | 15 kgf / cm ² | ||||
| Max . flow rate l / min ( ANR ) | 2490 | 2525 | 4310 | 8400 | 9000 |
| Ambient temperature | - 10 ℃ ~ 60 ℃ | ||||
| Lubricator oil ( Recommended ) | ISO – VG32 | ||||
| Lubricator bowl capacity | 125cc | 235cc | |||
| Net weight | 500g ( W / I Aluminum bowl 800g ) | 1095g | |||
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
FRL - 02 , UFRL - 02 , UFRL - 03 , UFRL - 04 , UFRL - 02J , UFRL - 03J , UFRL - 04J , UFRL - 06 ,
UFRL - 08 , UFRL - 06J , UFRL - 08J , FR / L - 02 , UFR / L - 02 , UFR / L - 03 , UFR / L - 04 ,
UFR / L - 02J , UFR / L - 03J , UFR / L - 04J , UFR / L - 06 , UFR / L - 08 , UFR / L - 06J , UFR / L - 08 ,
FR - 02 , UFR - 02 , UFR - 03 , UFR - 04 , UFR - 02J , UFR - 03J , UFR - 04J , UFR - 06 , UFR - 08 ,
UFR - 06J , UFR - 08J , F - 02 , UF - 02 , UF - 03 , UF - 04 , UF - 02J , UF - 03J , UF - 04J , UF - 06 ,
UF - 08 , UF - 06J , UF - 08J , R - 02 , UR - 02 , UR - 03 , UR - 04 , UR - 06 , UR - 08 , L - 02 , UL - 02 ,
UL - 03 , UL - 04 , UL - 02J , UL - 03J , UL - 04J , UL - 06 , UL - 08 , UL - 06J , UL - 08J .
