ZDZ23-ZDX23 series textile plastic combination valve
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet or As Customer Advice | Delivery Time : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | Negotiation |
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | SY7000 SMC Type |
|
Detail Information |
|||
| Medium: | Air | Action: | Internal Pilot |
|---|---|---|---|
| Pressure: | 0.15 ~ 0.7 MPa | Temperature: | -10 ~ 50 ℃ |
| Port Size: | 1 / 4 " | Voltage: | AC220V , AC110V , DC24V |
| Thread: | Rc / G / NPT / NPTF | Position: | 2 / 5 , 3 / 5 |
| High Light: | pneumatic air valve,pneumatic directional control valve |
||
Product Description

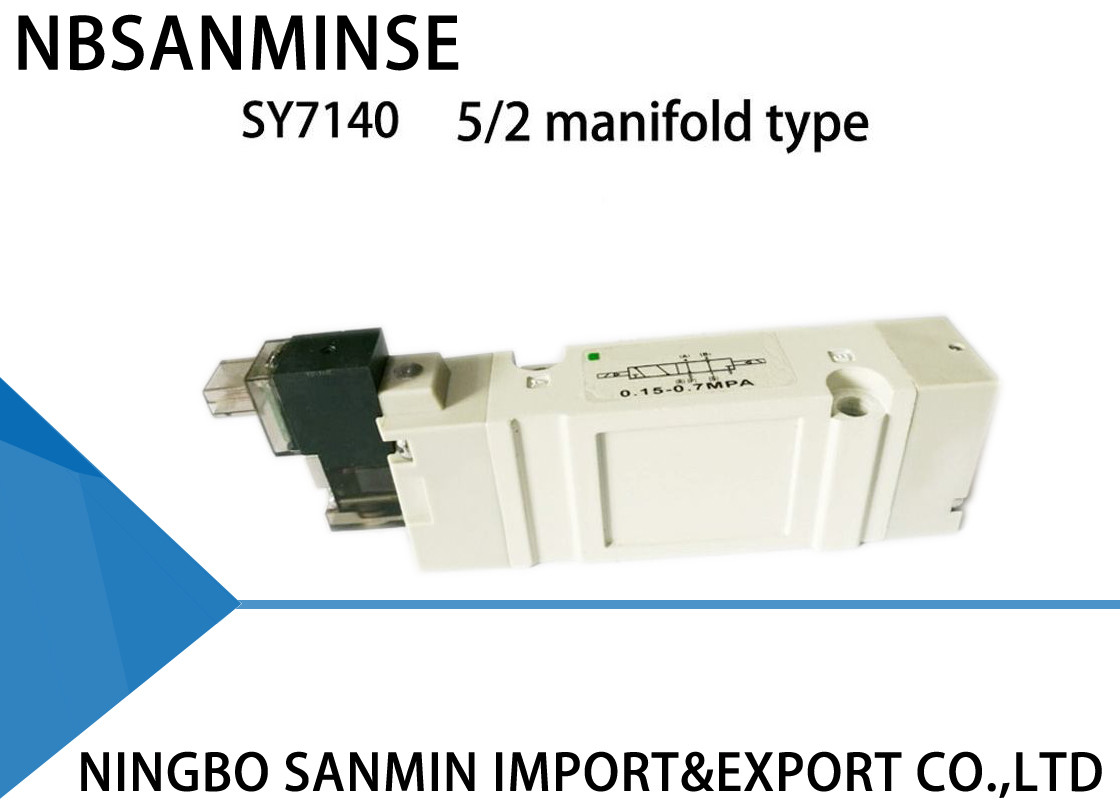

SY7000 Small Smc Solenoid Valve Manifold Mounted / Individually High Reliability
SY 3120 - M5 , SY3220 - M5 , SY 3140 - M5 , SY 3320 - M5 , SY 5120 - 01 , SY 5220 - 01 ,
SY5140 - 01 , SY 5320 - 01 , SY 7120 - 02 , SY7220 - 02 , SY 7140 - 02 , SY 7320 - 02
Response Time
| Series | Type of actuator | Response time ( at the pressure of 0.5MPa ) | |
|
Without light / surge Voltage suppressor |
With light / surge voltage suppressor | ||
| Type Z | |||
| SY7000 | 2 position single | 31ms or less | 38ms or less |
| 2 position double | 27ms or less | 30ms or less | |
| 3 position | 50ms or less | 56ms or less | |
Specifications
| Series | SY7000 | |||
| Fluid | Air | |||
| Internal Pilot Operating Pressure Range | 2 Position Single | 0 . 15 ~ 0 . 7 MPa | ||
| 2 Position Double | 0 . 1 ~ 0 . 7 MPa | |||
| 3 Position | 0 . 2 ~ 0 . 7 MPa | |||
| Ambient and fluid Temperature | - 10 ~ 50 ℃ ( No freezing ) | |||
| Max . operating frequency | 2 Position Single , Double | 10 Hz | 5 Hz | 5 Hz |
| 3 Position | 3 Hz | 3 Hz | 3 Hz | |
| Manual override ( Manual operation ) | Non – locking push type | |||
| Pilot exhaust method | Common exhaust type for main and pilot valve | |||
| Lubrication | Not required | |||
| Mounting orientation | Unrestricted | |||
| Impact / Vibration resistance | 150 / 30 ( m / s ² ) | |||
| Enclosure | Dustproof | |||
Solenoid Specifications
| Electrical entry | L plug connector ( L ) | ||
| Coil rated voltage ( V ) | DC | 24 , 12 | |
| AC 50 / 60 Hz | 110 , 220 | ||
| Allowable voltage fluctuation ( % ) | ± 10 % of rated voltage | ||
| Power Consumption | DC | Standard | 0 . 35W ( With indicator light : 0 . 4 ) |
| Apparent Power | AC | 110V | 1 . 6V A |
| 220V | 2 . 5VA | ||
| Indicator light | LED | ||
Improved product performance and reliability with the redesigned SY series valve. The SY3/5/7000 have the same valve width as their predecessors, but the flow has been increased by up to 80%, allowing the valve size to be reduced. A built-in strainer in the pilot valve prevents trouble caused by foreign matter. Improved solenoid and spool design makes the New SY the most durable valve in the market. The valve is rated at 70 million cycles for the rubber seal and 200 million cycles for the metal seal. Side, top and bottom port/pipe directions are available to allow flexible installation. The SY is available in body ported or base mounted styles, and can be used individually or manifold mounted.
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Sample order & small quantity order is acceptable .
5: Customize according to your special request .
6: Provide free products information .
7: Reliable quality assured and active after-sell service
8: One year quality guarantee
FAQ
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
Our products are high quality with 12 month guarantee ,and support paypal payment.
