All Stainless Steel Single Electric Control Pneumatic Solenoid Valve 5/2 Conversion 3/2 0.2-1.0Mpa
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet or As Customer Advice | Delivery Time : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 8888 pcs year |
| Place of Origin: | NINGBO | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | 4V 300 AirTAC Type |
|
Detail Information |
|||
| Medium: | Air | Action: | Internal Pilot |
|---|---|---|---|
| Pressure: | 0 . 15 ~ 0 . 8 MPa | Temperature: | - 5 ~ 50 ℃ |
| Port Size: | 1 / 4 " , 3 / 8 " | Thread: | G / NPT |
| Position: | 5 / 2 , 5 / 3 , 3 / 2 | Voltage: | DC12V , DC24V , AC24V , AC110V , AC220V , AC380V |
| High Light: | pneumatic air valve,pneumatic electric valve |
||
Product Description

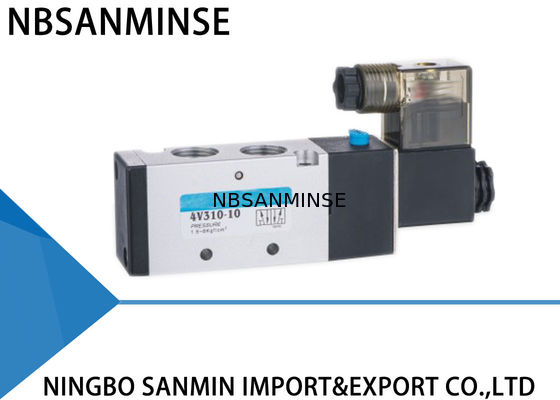

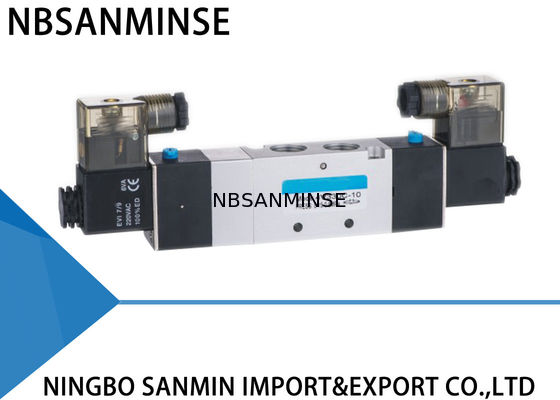

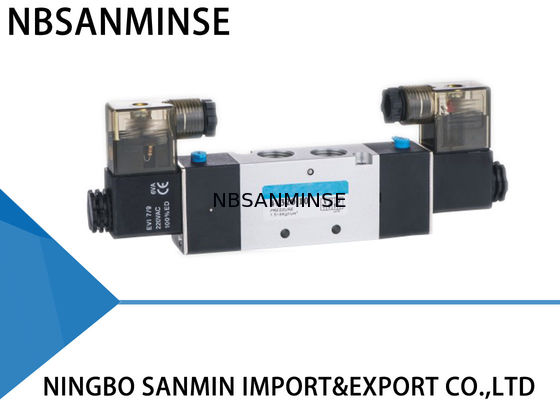

High Pressure Pneumatic Solenoid Valve , Air Directional Control Valve 4V 300 Series
4V310 - 08 , 4V320 - 08 , 4V330C - 08 , 4V330E - 08 , 4V330P - 08 , 4V310 - 10 , 4V320 - 10 ,
4V330C - 10 , 4V330E - 10 , 4V330P - 10 , 4A310 - 08 , 4A320 - 08 , 4A330V - 08 , 4A330C - 08 ,
4A330E - 08 , 4A330P - 08 , 4A310 - 10 , 4A320 - 10 , 4A330C - 10 , 4A330E - 10 , 4A330P -10
Product
1, Double control solenoid valves have memory function.
2, Internal hole adopts special processing technology which has little
attrition friction ,low start pressure and long service life.
3, No need to add oil for lubrication.
4, It is available to from integrated valve group with the base to save
installation space.
5, Affiliated manual devices are equipped to facilitate installation and debugging
6, Several standard voltage grades are optional.
| Model | 4V310-08 | 4V320-08 | 4V330C-08 | 4V330E-08 | 4V330P-08 | 4V310-10 | 4V320-10 | 4V330C-10 | 4V330E-10 | 4V330P-10 |
| 4A310-08 | 4A320-08 | 4A330C-08 | 4A330E-08 | 4A330P-08 | 4A310-10 | 4A320-10 | 4A330C-10 | 4A330E-10 | 4A330P-10 | |
| A number of pass | Two position five-way | Three position five -way | Two position five-way | Three position five-way | ||||||
| Effective sectional area | 25mm²(CV=1. 40 ) | 18mm²(CV = 1 .00 ) | 30mm²(CV=1. 68) | 18mm²(CV=1. 00) | ||||||
| Model | 3V310-08 | 3V320-08 | 3A310-08 | 3A320-08 | 3V310-10 | 3V320-10 | 3A310-10 | 3A320-10 | ||
| A number of pass | Two position three-way | Two position three-way | ||||||||
| Effective sectional area | 25mm²(CV=1. 40) | 30mm²(CV=1. 68) | ||||||||
| Port size | Air inlet=Air outlet=Exhaust=G1 / 4 " | Air inlet=Air outlet=G3 / 8 " Exhaust= G1 / 4 ” | ||||||||
| Working medium | 40 Micron Filtered Air | |||||||||
| Action mode | Internally plot-actuated | |||||||||
| The use of pressure | 0. 15~ 0. 8MPa | |||||||||
| Max. poof pressure | 1 . 2MPa | |||||||||
| Working temperature | -5 ~ 50℃ | |||||||||
| Voltage range | ± 10% of rated voltage | |||||||||
| Power consumption | AC: 5. 5VA DC: 4. 8W | |||||||||
| Insulation& Protection class | Class F. IP65 | |||||||||
| Connection form | Line type or terminal type | |||||||||
| Highest action frequency | 5 cycle/second | |||||||||
| Shortest excitation time | 0.05 Second |
|||||||||
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .
Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do you company have specialized technical personnel ?
A: Do you company have specialized technical personnel , they can design the product which the most meet your requirements .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Our products are high quality with 12 month guarantee ,and support paypal payment.
