ZDZ23-ZDX23 series textile plastic combination valve
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet or As Customer Advice | Delivery Time : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | 3000 pcs per month |
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | 4A400 - L YPC Type |
|
Detail Information |
|||
| Medium: | Air | Action: | External Polit |
|---|---|---|---|
| Pressure: | 0 . 15 ~ 0 . 8MPa | Temperature: | - 5 ~ 60 ℃ |
| Port Size: | 1 / 2 " | Voltage: | AC220V DC24V , Etc |
| Thread: | G / NPT | Position: | 5 / 3 , 5 / 2 , 3 / 2 |
| Highlight: | pneumatic directional control valve,pneumatic electric valve |
||
Product Description

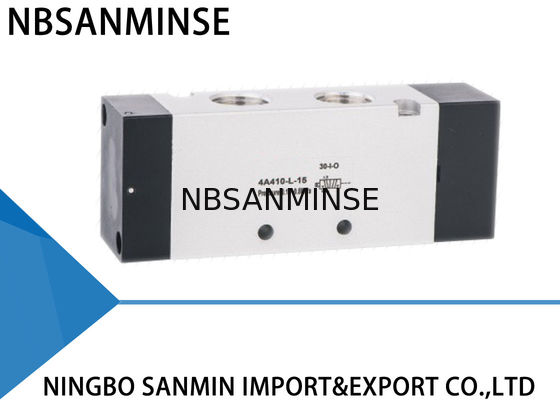

Professional High Speed Solenoid Air Valve , Pneumatic Air Control Valve
4A410 - L -15 , 4A420 - L -15 , 4A430C - L -15 , 4A430E - L - 15 , 4A430P - L -15 , 3A410-L-15 ,
3A420-L-15 .
4A Product Feature
1 . Structure in sliding column mode : good tightness and sensitive reaction .
2 . Three position air valves have three kinds of central function for your choice .
3 . Internal hole adopts special processing technology which has little attrition friction , low start pressure and long service life .
4 . No need to add oil for lubrication .
3A Product Feature
1 . Structure in sliding column mode : good tightness and sensitive reaction .
2 . Double air control valves have memory function .
3 . No need to add oil for lubrication .
4 . Multi – mounting helps to install and apply
Specification
| Model | 4A410 - L -15 | 4A430C - L -15 / 4A430E - L - 15 |
| 4A420 - L -15 | 4A430P - L -15 | |
| Position and Way No. | Two Position Five Way | Three Position Five Way |
| Effective Section Area | 50mm²(CV = 2. 79) | 30mm² (CV=1. 68) |
| Model | 3A410-L-15/3A420-L-15 | |
| Position and Way No. | Two-position Three-way | |
| Effective section area |
50mm²(CV=2. 79)
|
|
| Port Size | Air Inlet=Air Outlet=Exhaust= G1/2” | |
| Working Medium | 40 Micron Filtered Air | |
| Motion Pattern | External pneumatic actuation | |
| Working Pressure | 0.15~0.8MPa | |
| Max.pressure Resistance | 1.2MPa | |
| Voltage Range | -5~60℃ | |
| Highest Action Frequency | 5 Cycle / Sec | |
| Life | 20Million | |
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Provide free products information .
FAQ
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .
Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do you company have specialized technical personnel ?
A: Do you company have specialized technical personnel , they can design the product which the most meet your requirements .
Our products are high quality with 12 month guarantee ,and support paypal payment.
