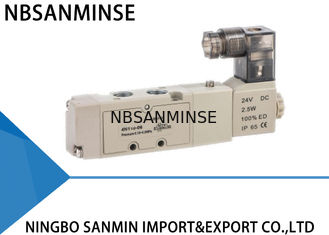

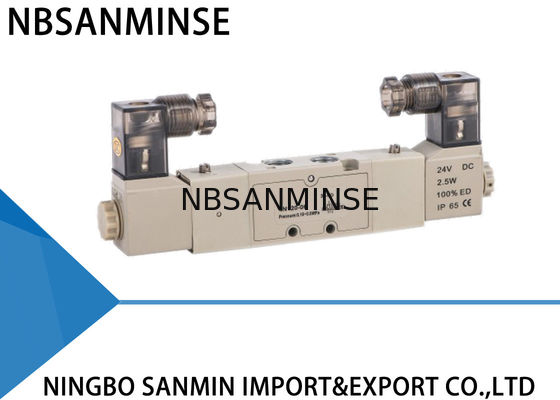

Double / Single Coil Electro Pneumatic Solenoid Directional Control Valve 1 / 8 Inch

Double / Single Coil Electro Pneumatic Solenoid Directional Control Valve 1 / 8 Inch


4N110 - M5 , 4N120 - M5 , 4N130C - M5 , 4N130E - M5 , 4N130P - M5 , 4N110 - 06 ,
4N120 - 06 , 4N130C – 08 , 4N130E - 08 , 4N130P - 08 , 3NV110 - M5 , 3NV120 - M5 , 3NV110 - 06 ,
3NV120 - 06 .

Specification

Model : 4N110 - M5 , 4N130C - M5 , 4N130E - M5 , 4N110 - 06 , 4N130C – 08 , 4N130E - 08
4N120 - M5 , 4N130P - M5 , 4N120 - 06 , 4N130P - 08

Position and Way No. : Two - Position Five - Way , Three - Position Five - Way

Effective section area : 10mm ² ( CV = 0 . 56 ) , 7mm ² ( CV = 0 . 40 ) , 12mm ² ( CV = 0 . 67 ) ,
9mm ² ( CV = 0 . 5 )

Model : 3NV110 - M5 , 3NV120 - M5 , 3NV110 - 06 , 3NV120 - 06

Position and Way No. : Two – position Three - way

Effective Section Area : 10mm ² ( CV = 0 . 56 ) , 12mm ² ( CV = 0 . 67 )

Port Size : Air Inlet = Air Outlet = Exhaust = M5 × 0 . 8 , Air Inlet = Air Outlet = Exhaust = G1 / 8 "

Working Medium : 40 Micron Filtered Air

Motion Pattern : Inner Guide Type

Working Pressure : 0 . 15 ~ 0 . 8MPa

Max . pressure Resistance : 1 . 2MPa

Temperature : - 5 ~ 60 ℃

Power Consumption : - 15 % ~ + 10 %

Power Consumption :  AC : 2 . 5VA  DC : 2 . 5W

Insulation & Protection Class : F Class . IP65

Wiring Form : Lead Wire Or Connector Type


Highest Action Frequency : 5 Cycle / Sec

Shortest Excitation Time : 0. 05 Second

Life : 20 Million

Why choose us

1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: High quality with competitive price .
4: Reliable quality assured and active after-sell service
5: One year quality guarantee


FAQ

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples for the massive products .

Q: What ' s your business scope ?
A: Our business scope is air cylinder , air source treatment , air solenoid valve , motorize valve , pneumatic valve , quick fitting , etc .

Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials processing . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .

Q: Do you company have specialized technical personnel ?
A: Do you company have specialized technical personnel , they can design the product which the most meet your requirements .



Our products are high quality with 12 month guarantee ,and support paypal payment.


Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
