R200 G1 / 4 Air Precision Regulator Mini valve Air Compressed Pneumatic Regulator Valve
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Minimum Order Quantity : | 20 | Price : | Negotiation |
|---|---|---|---|
| Packaging Details : | Plastic Bags , Boxes , Carton , Pallet or As Customer Advice | Delivery Time : | Negotiation |
| Payment Terms : | L/C, T/T, Western Union | Supply Ability : | Negotiation |
| Place of Origin: | NINGBO | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | ISO9001 | Model Number: | SDX |
|
Detail Information |
|||
| Pressure: | 2.0 Mpa | Rated Flow: | 0.2 L/min |
|---|---|---|---|
| Oil Tank Capacity: | 1.0 , 2.0 , 3.0 , 4.0 , 6.0 , 9.0 Liter | Voltage: | AC220V |
| Frequency: | 50 Hz | Power: | 30W |
| P: | With Pressure Switch | C: | With Controller |
| Highlight: | pump lubrication system,industrial air filter regulator |
||
Product Description

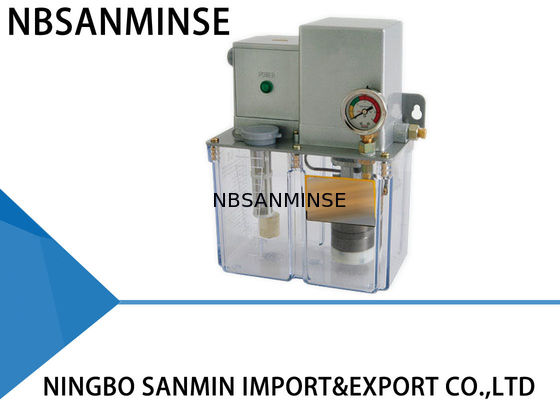

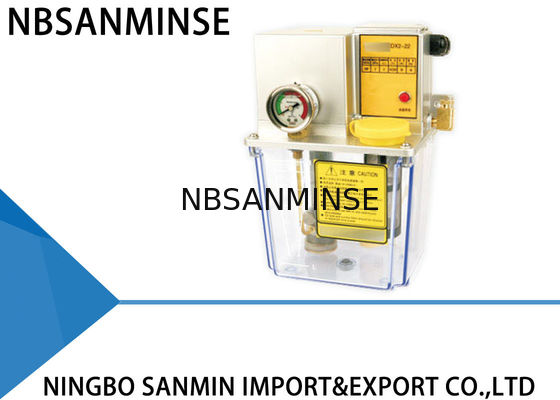

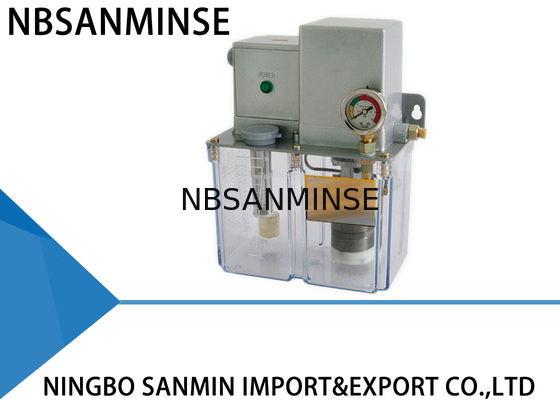

NBSANMINSE Thin oil Pump Lubrication Pump 2Mpa 1.0L 2.0L 3.0L 4.0L 6.0L 9.0L AC220V with Pressure switch and Controller for Lubrication system CNC Machine Printer
Performance and characteristics
. Lubrication pump with controls or PLC host controlled by their work time and rest time
Rated working pressure 2.0MPa : Sets the overflow valve, prevent oil pump overload
With functions of unloading : Stop working after removing the oil pressure in the system is in charge of road, mainly used in the quantitative type ( pressure type or unloading type ) thin oil lubrication oil supply system
With a low oil level transmission device (normally open 10W/100VDC/0.5A), lack of oil tank can be signal output
Inside the pump with pressure switch (normally open), to monitor the lubrication system that the main oil line block and the pressure loss (optional parts)

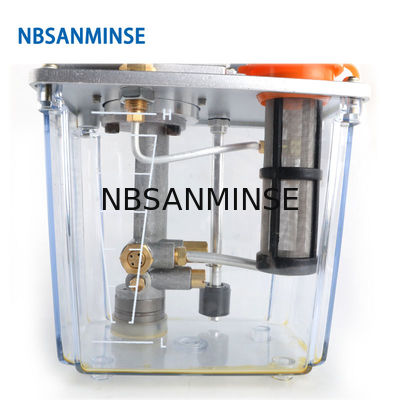

Transparent resin tank
Use the lubricant viscosity 32~2500cst.
Supporting distributor : pressurized or pressure relief type thin oil distributor
| Project | Rated pressure (Mpa) | Rated flow (L/min) | Oil tank capacity (L) | Controller | Electric machine parameter | |||
| Voltage (V) | Frequency (Hz) | Power (W) | Revolving speed (r/min) | |||||
| Model | ||||||||
| SDX2-12 | 2.0 | 0.2 | 1.0 | Match PC-3 Singular display | AC220 | 50 | 30 | 2700 |
| SDX2-22 | 2.0 | |||||||
| SDX2-32 | 3.0 | Match PC-2 Dual display | ||||||
| SDX2-42 | 4.0 | |||||||
| SDX2-62 | 6.0 | |||||||
| SDX2-92 | 9.0 | |||||||
