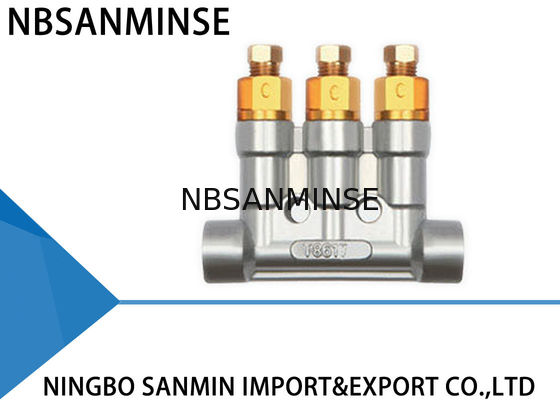

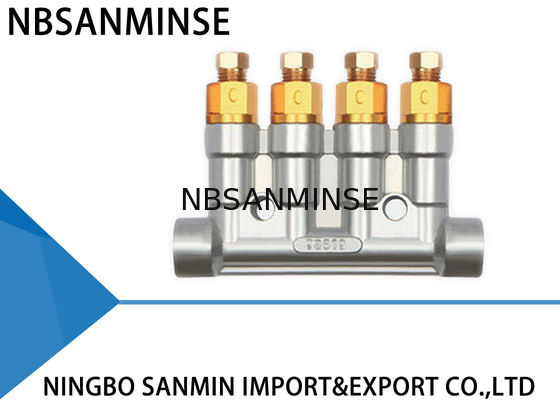

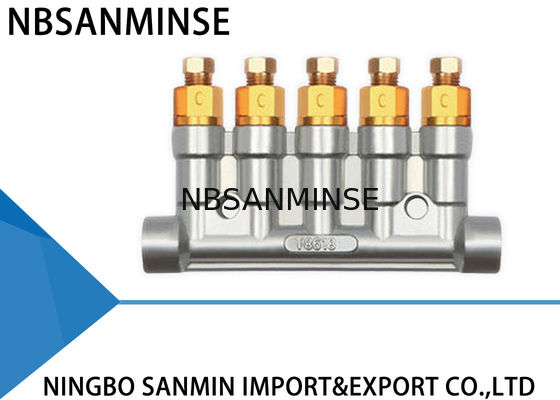

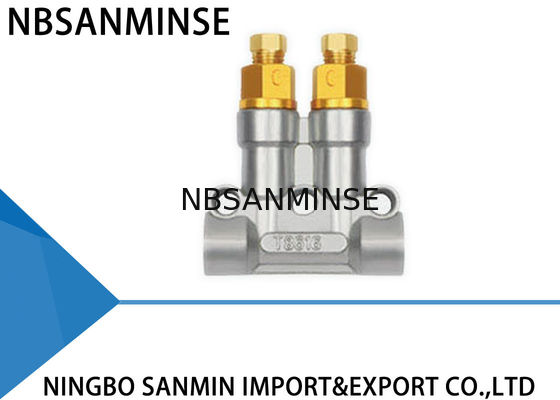

High Performance Lube Oil Distributors , Lubricant Distributors ST86 Damping Type
Performance and characteristics
. Also known as positive displacement, pressure action, that is driven by the lubrication pump pressure oil measurement in the piston, the last time has been stored in measurement in the piston, the last time has been stored in measuring a let indoor to lubricating oil forced pressure points, when the system let indoor storage oil again after unloading, in preparation for the next work
. System must be intermittent work, and the pump must be support the function of lubricating unloading.
. Lubrication pump in a working period, measuring oil only once, and the measurement of the distance or position are no impact to displacement
. Accurate measurement , quick action, oil discharge unobstructed, check valve to prevent the oil reverse flow
Attention
. Oil discharge specification (A,B,C,D and E), the standard of ST86 quantitative thin oil pressure type distributor in each oil outlet discharge is the same, such as the three oil outlet ST8617C each oil discharge volume of 0.1L
. If the outlet oil discharge volume needs different, then the order from left to right (as shown in figure) indicate each outlet of oil discharge type (example)
. If it is oil distributor, plus Z after model
| Project |
Number of oil outlet |
The use of oil |
Working pressure (Mpa) |
Rated discharge (mL/times) |
Mark※ |
Dimension (mm) |
| L |
d |
A |
B |
H |
H1 |
D |
D1 |
a |
S |
| Model |
| ST8615※ |
1 |
Thin oil |
1.0~2.0 |
0.03 0.06 0.10 0.16 |
A B C D |
/ |
/ |
/ |
/ |
48 |
7 |
/ |
M10X1 |
/ |
14 |
| ST8616※ |
2 |
36 |
3-Φ5.5 |
46 |
13.5 |
43 |
10 |
Φ16 |
17 |
/ |
| ST8617※ |
3 |
17 |
2-Φ5.5 |
63 |
| ST8619※ |
4 |
34 |
80 |
| ST8618※ |
5 |
51 |
97 |
| ST8621※ |
1 |
0.10 0.20 0.40 0.60 |
A B C D |
/ |
/ |
/ |
/ |
57 |
7.5 |
/ |
M12X1.25 |
/ |
16 |
| ST8622※ |
2 |
/ |
Φ6 |
46 |
17 |
56 |
8 |
Φ18 |
17 |
/ |
| ST8623※ |
3 |
17 |
2-Φ6 |
63 |
| ST8620※ |
4 |
34 |
80 |
| ST8624※ |
5 |
51 |
97 |
| ST8625※ |
1 |
0.20 0.40 0.60 1.00 1.50 |
A B C D E |
/ |
/ |
/ |
/ |
76 |
7.5 |
/ |
/ |
21 |
| ST8626※ |
2 |
/ |
Φ6 |
50 |
16 |
67 |
9 |
Φ18 |
21 |
/ |
| ST8627※ |
3 |
21 |
2-Φ6 |
71 |
| ST8628※ |
5 |
63 |
113 |
| ST8615※Z |
1 |
Lithlum-based grease NLG10,00 OR 000 |
2.5~4.0 |
0.03 0.06 0.10 0.16 |
AZ BZ CZ DZ |
/ |
/ |
/ |
/ |
48 |
7 |
/ |
M10X1 |
/ |
14 |
| ST8616※Z |
2 |
36 |
3-Φ5.5 |
46 |
13.5 |
43 |
10 |
Φ16 |
17 |
/ |
| ST8617※Z |
3 |
17 |
2-Φ5.5 |
63 |
| ST8619※Z |
4 |
34 |
80 |
| ST8618※Z |
5 |
51 |
97 |
| ST8621※Z |
1 |
0.10 0.20 0.40 0.60 |
AZ BZ CZ DZ |
/ |
/ |
/ |
/ |
57 |
7.5 |
/ |
M12X1.25 |
/ |
16 |
| ST8622※Z |
2 |
/ |
Φ6 |
46 |
17 |
56 |
8 |
Φ18 |
17 |
/ |
| ST8623※Z |
3 |
17 |
2-Φ6 |
63 |
| ST8620※Z |
4 |
34 |
80 |
| ST8624※Z |
5 |
51 |
97 |
| ST8625※Z |
1 |
0.20 0.40 0.60 1.00 1.50 |
AZ BZ CZ DZ EZ |
/ |
/ |
/ |
/ |
76 |
7.5 |
/ |
/ |
21 |
| ST8626※Z |
2 |
/ |
Φ6 |
50 |
16 |
67 |
9 |
Φ18 |
21 |
1 |
| ST8627※Z |
3 |
21 |
2-Φ6 |
71 |
| ST8628※Z |
5 |
63 |
113 |
