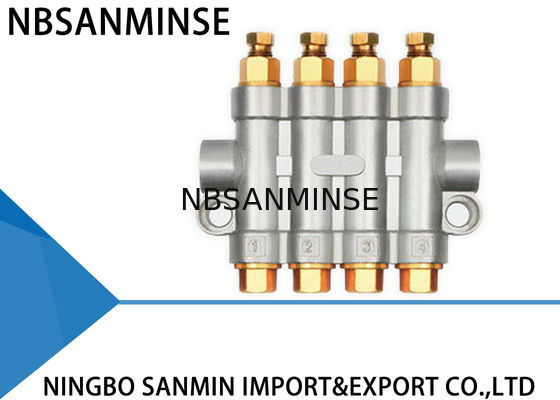

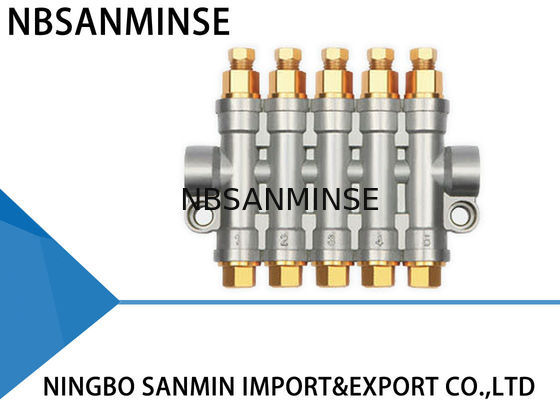

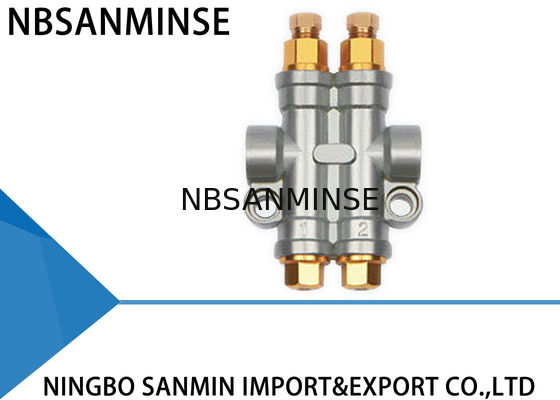

SZLFG Pressure Indicator Quantitative Dispenser High Reliability

SZLFG Pressure Indicator Quantitative Dispenser High Reliability

Performance and characteristics

. Also known as the positive displacement, pressure relief action type, is driven by the lubrication pump pressure oil measurement within the piston, put the oil in the tank meanwhile indicating stretched out, when the system after unloading, Piston under the action of the spring will let indoor to lubrication oil forced pressure points, indication rod back at the same time.

. System must be intermittent work, and the supporting lubricating pump must have the function of unloading

. Lubrication pump in one working day cycle, each of the oil outlet oil only once, and no impact of displacement with the measurement of the distance between each other is far,close,down,high,down,lying or stand.

. Accurate measurement, action quick, oil discharge unobstructed, check valve to prevent the reverse flow

Selection considerations

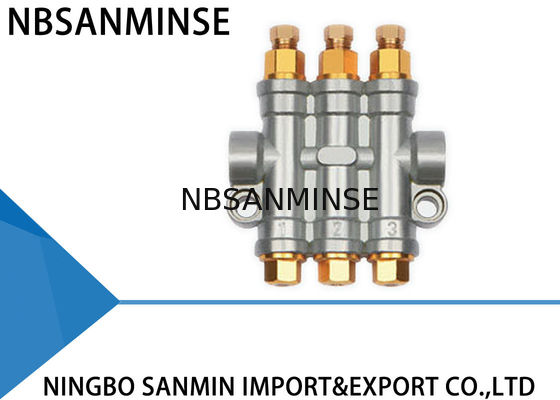

Discharge of oil specification, standard of SZLFG unloading type quantitative distributor in each of the oil port of discharge, same specification as three outlet each discharge is 0.2L, code number is SZLFG3-2

. If the oil port of discharge quantity to be different, when you order it from left to right (as shown in figure location) indicate each oil port of discharge type (example)

. If grease distributor, plus Z after model

Q: Could you offer the free samples ?

A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055

Q: What ' s your business scope ?

A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder,  air and oil fitting, pressure gauge etc .

Q: What types of products you can make ?

A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .

Q: Can the product be made with our logo and brand ?

A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .

Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?

A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.

Q: Is there a warranty available?

A: Yes, normally products is one year quality guarantee.

Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?

A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect

G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America

Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?

A: 1MPa=10bar≈145psi≈10kg

Q:What usually causes the burnout of solenoid valve coils?

A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.

Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
