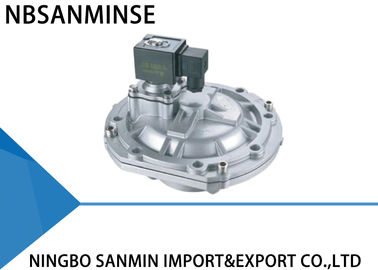

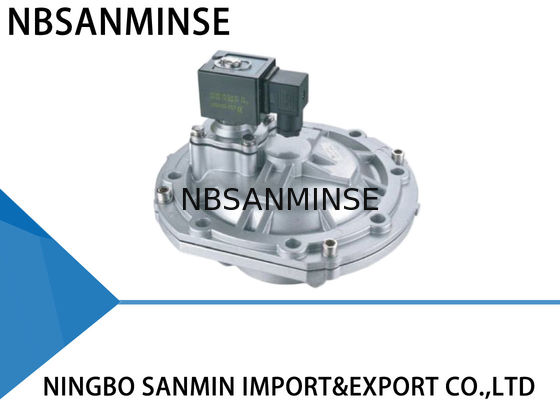

QA-Y- 76S Pneumatic Pulse Valve Big Size Submerged type Dust Proof Valve Asco type

Product Details:
Place of Origin: CHINA
Certification: ISO9001
Model Number: QA - Y - 76S , 80S ,102SA
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation

Detail Information

Pressure: 0 . 2 ~ 0 . 6MPa Temperature: - 25 ~ 60 ℃
Relative Humidity: ≤ 85 % Medium: Clean Air
Voltage: AC220V / DC24V / AC110V Diaphragm: Double Diaphragm
Diameter: G3 G3 1/2 G4 Armature: 430FR Stainless Steel
High Light:

pulse air valve


pulse jet solenoid valve

Product Description

QA-Y- 76S Pneumatic Pulse Valve Similar To Asco Pulse Valve 3 " Port Size





Electromagnetic valve ( Also called diaphragm valve ) is the” switch “for compressed air in the dust clean blowing system of the pulse bag filter . Controlled by the output signals of the pulse jet control device , it makes dust clean to the filter bags cell by cell to keep the resistance of the baghouse within the set range and thus guarantee the processing functions and the dust collecting efficiency of the baghouse .


Y type electromagnetic pulse valves is a suble for the work occasions embedded valve ) , is directly installed in the gas bag , with better flow characteristics . As pressure losses drops , it will be suitable for the work occasion of loser pressure gas source .


Working Principle


The electromagnetic pulse diaphragm valve is composed of two gas cells . When the compressed air is connected , it comes into the back bags cell though the orifice , the pressure in the back gas cell pushes the diaphragm against the outlet of the valve and the electromagnetic valve stays in the “ closed ” condition .


When the electromagnetic pulse valve returns to its original position .

The air escape of the back gas cell closes and the pressure in the back gas cell cell rises , which pushes the diaphragm closely again .


The electrical signals from the pulse jet control device move the armature of the electromagnetic pulse valve . The air escape of the back gas cell opens and the back bag gas cell loses pressure quickly , thus the diaphragm moves back and the compressed air blows through the valve outlet . The electromagnetic pulse valve comes into the “ open ” condition .


Pulse valve is composed of pilot head, diaphragm and valve aluminum body. The back cavity area of diaphragm is bigger than the front one. The diaphragm is kept at the closed position due to the effect of big pressure.
Electrical pulse controller send input signals so that the electromagnetic armature attracts the moving bar. Unclose the balancing hole to release the pressure gas in the back cavity of diaphragm quickly; the pressure gas in the front cavity holds up the diaphragm to open the passage and the valve starts cleaning.
The pulse signal disappears and the spring of the armature works immediately to resume the moving bar so as to close the balancing hole. The pressure gas in the back cavity of the diaphragm and the spring work together to close the passage the valve stops cleaning.
The damping hole in the diaphragm functions to damp the airflow when the moving bar of armature holds up for balancing and to transit the air to the back cavity as soon as the balancing hole is shut to close the passage and stop cleaning.


Body ADC12 die cast
Armature 430FR stainless steel
Diaphragm Nitrile or viton
Spring 321 Stainless steel
Fasteners 302 Stainless steel


Ambient Temperature : -25~60℃ Customized for lower or higher temperature

Relative Humidity : ≤85%

Working Medium : Clean Air

Voltage : AC220V/DC24V/AC110V/AC24V Customized

Protection Class : IP65

Diaphragm Life : Over One Million Cycles

Cv/Kv : Call us for detail
