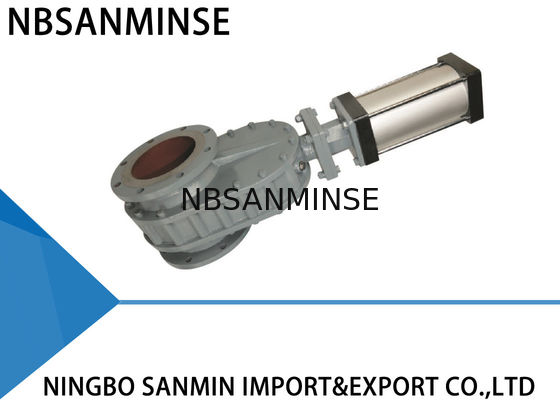

High Reliability Double Disc Valve Alloy / Ceramic Material DN 50 65 80

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: CHINA Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: SMWZ644 ( 1 ) -10 ( 2 ) -DNA - (3 )

Detail Information

Nominal Pressure: 1.0 ( MPa ) Type: Inlet Valve/Balance Valve
Temperature: ≤200℃ Max Test Press: 1.5 ( MPa )
DN: 50 , 65 , 80 , 100 , 125 , 150 , 200 , 225 , 250 , 300 Valve Body: Cast Iron
High Light:

electromagnetic pulse valve


pulse air valve

Product Description

High Reliability Double Disc Valve Alloy / Ceramic Material DN 50 65 80​




Main Perfomance


Model WZ644-10Q double-disc valve uses a double -disc sealing and sealing surfaces are made from wear-resistant alloy or ceramic. The seal is 100% airtight and the valve achieves a long service life , particularly in applications . Consequently , overall system reliability is increased dramatically .


Operating Performance


When air is introduced into the upper cylinder port , the piston rod pushes the double-disc down and the valve is closed . When air is introduced into the lower cylinder port , the piston rod pushes the double-disc up and the valve is opened . Compression spring being placed between the discs and seal ring , forces the discs the discs against the seal ring , and also allow for discs vertical movement , which helps to compensate the thermal expansion and contraction of the parts and ensure an airtight seal under all conditions . When actuating the valve , the double-disc rotates to lap and polish the sealing surfaces . When product flows through the valve , any material entering the inner chamber is removed by vortex flow action . Hence , the valve is self-cleaning . Additional air purging can be provided to ensure clean-in-place performance . All these characteristics guarantee a long service lofe for the valve and increase the reliability of your system .




Any dust , powder , and granular products in coal-fired power plants , smelters , iron and steel plants , pharmaceutical and chemical industries .


Technical Parameters


Maximum-Operating Pressure : 1.0MPa


Maximum Test Pressure : 1.5MPa


Operating Temperature : <200℃


Leakage Test Pressure : 1.1MPa



Installation and Application


1. Prior to installation , make sure the pneumatic actuator is free of any defects like breakage and concave .


2. Make sure the joint flange , structural length , maximum operating pressure and nominal diameter are accorded with requirements .


3. During installation , not allowed to readjust studs and nuts that have been fastened originally . Align the center of two pipelines and valve diameter to be coaxial . Keep the flange surface flat . Uniformly apply force to tighten the bolt .


4. After installation , introduce air from the upper and lower cylinder ports to see whether the valve can be normally opened or closed .


5. Cheek the control switch ( if existing ) to see whether it is reliably fastened , whether its parameter is accorded with access power source , and whether it can correctly work under full opening and full closing conditions .




Troubleshooting Method


Troubles Cause Troubleshooting Method
Leakage in sealing surface Dirt between disc and sealing surface Remove the dirt
Damage to seal ring pairs Repair or replace
Leakage in flange joint The bolt is unevenly screwed Evenly screw the bolt
Damage to the flange surface Repair the flange surface
Damage to the spacer Replace the spacer
Valve fails to be correctly opened or closed Dust deposit Remove dust regularly
Insufficient air pressure , severe leakage Repair air supply pipeline
Pneumatic components have been aged and lost efficlency Replace the damaged components
Leakage of stuffing box The stuffing has been aged and severely worn Replace the stuffing



Main Parts and Materials


Item Name Material Item Name Material
1 Valve body Ductile iron 5 Connecting T-piece Cast steel
2 Side valve body Ductile iron 6 End cap 45#Steel
3 Sealing ring Carbon steel + special alloy 7 Linking neck Hodular cast iron
4 Dise Carbon steel + special alloy 8 Pneumatic actuator aluminum Aluminum cylinder

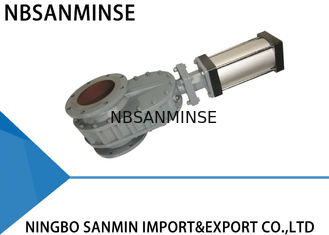

High Reliability Double Disc Valve  Alloy / Ceramic Material DN 50 65 80 0
