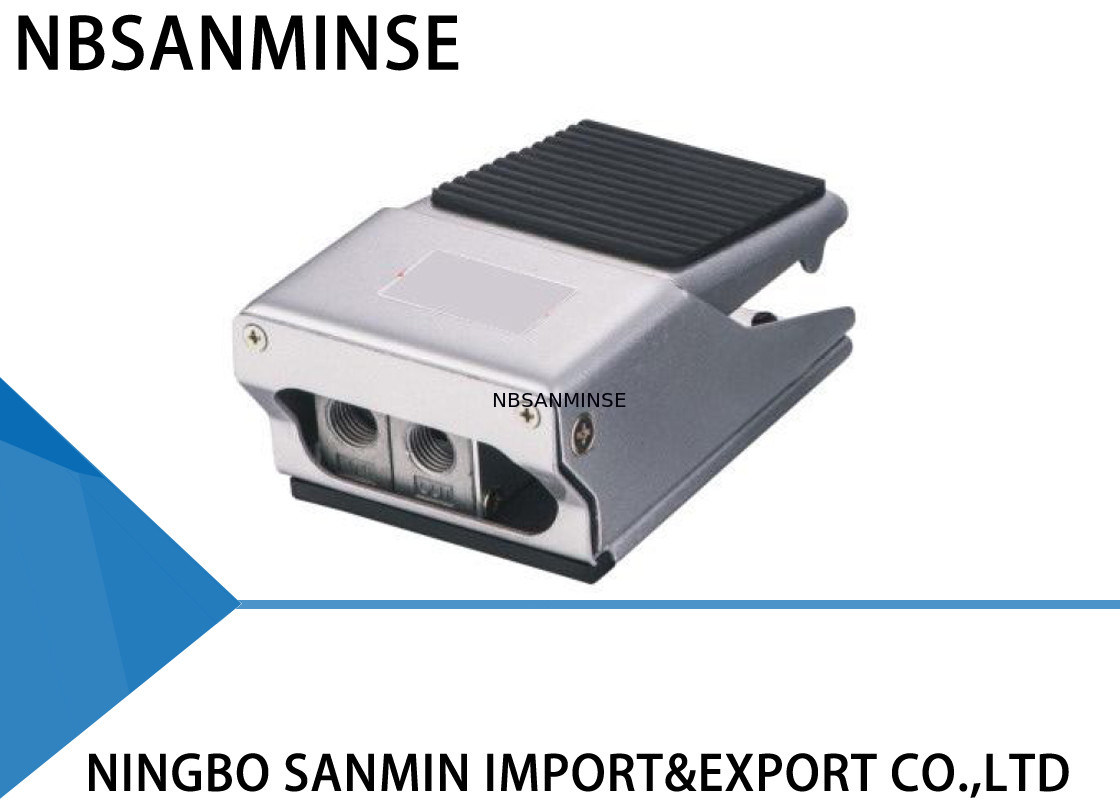

FA230/231-8AL Pneumatic Foot Valve Two Position Three Way Normally Open / Closed

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : 10000 PCS / Year
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: FA230-8AL

Detail Information

Port Size: Rc 1 / 4 Potr: 3
Position: 2 Medium: Air
Temperature: 5 - 60 ℃ Effective Sectional: 8 Mm ²
High Light:

pneumatic air valve

,

pneumatic electric valve

Product Description

FA230/231-8AL Pneumatic Foot Valve Two Position Three Way Normally Open / Closed




Specifications



Model FA – 230 FA – 2301
Port Size 8A
Port Size Rc 1 / 4
Port 3
Position 2
Working Medium Filtered Compressed Air
Ambient and media temperature 5 – 60 ℃
Ensured Pressure Resistance 1 . 0 MPa ( 10kgf / cm ² )
Working Pressure 0 . 2 – 0 . 8 MPa (2 – 8 kgf / cm ² )
Effective Sectional Arra 8 mm ²



Port Size G , NPT avilable in addition .


Fesatures



Small body , big flux , simple andconvenient operation .

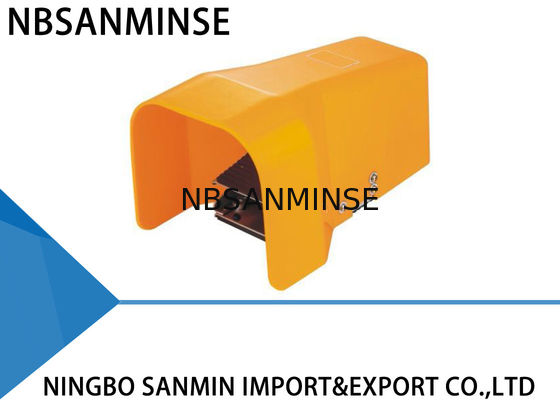

Protecrive cover allowed .




Flowmeter



P . ( MPa ) P2 Q ( m ³ / h )
0 . 8 0 . 7 29
0 . 7 0 . 6 27
0 . 6 0 . 5 24
0 . 5 0 . 4 22
0 . 4 0 . 3 19 . 5
0 . 3 0 . 2 16 . 7
0 . 2 0 . 1 14 . 2




Applications

FA series foot pedal valve manual operated use for fast direction change of anywhere and anytime necessary function required by manual operating,Due to easy and flexible operating,it was widely use in the Pneumatic system




Why choose us



1: Large stock for fast shipping .
2: High quality with competitive price .
3: Sample order & small quantity order is acceptable .

4: Reliable quality assured and active after-sell service
5: One year quality guarantee


FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
