High Temperature SS316L Stainless Steel Air Fittings Quick Release Food production Anticorrosion
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +008615168536055
|Minimum Order Quantity :||20||Price :||Negotiation|
|Packaging Details :||Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice||Delivery Time :||Negotiation|
|Payment Terms :||L/C, T/T||Supply Ability :||10000 pcs|
|Place of Origin:||CHINA||Brand Name:||NBSANMINSE|
|Fluid:||Air , Water , Steam||Operating Pressure:||0 ~ 1 . 5MPa|
|Max Pressure:||1.8MPa||Temperature:||- 20 ℃ - 140 ℃|
|Thread Size:||R1/8-R1/2||Model:||SSC04-01 / 06-01 / 06-02 / 08-01 / 08-02 / 10-02 / 10-03 / 10-04/ 12-02/ 12-03/12-04|
ss pneumatic fittings,
stainless steel air line fittings

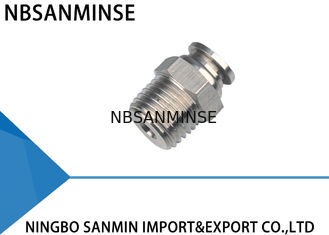

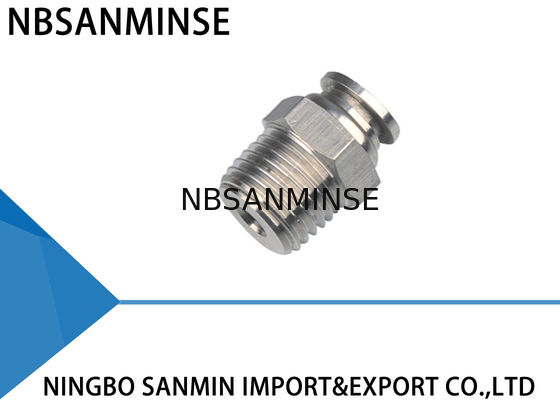

SSPC SS316L Stainless Steel Air Fittings , Air Compressor Hose Fittings
Technical Specifications :
Body : Stainless Steel 316L
Lock Claw/Release Button/C-lip : Stainless Steel 316L .
Collar : Stainless Steel 316L .
V-Seals : FKM/O-rings : FKM
Medium : Air , Water , Oil
Working pressure : 0~225PSI (0~15KG)
Vacuum rating : To 28”Hg
Working temperature : “-30℃ to 220℃
Applicable Tubings : PTFE, FEP, PU, PE, NYLON TUBES.PVDF...
* V-seals : We use V shape seals (FKM) instead of O-Ring , V-seale perfectly fit the tube inserted and avoid any leaking !
* Tow O-rings design makes our Swivel function more Durable than One O-ring , Longer life time !
. The materials ensure Anti - Corrosion highly , all of them are made from SU316L except the seal ring .
. FKM is used as the seal ring , which can ensures Anti - Corrosion and acid resistant , also can be used in high temperature .
. The accessories are oil - free and reach the Food Hygiene Law of People’s Republic of China , which are applied widely in the range of industry such as food service industry , chemical industry and medical industry .
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .
Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .
Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .
Why choose us
. Various style for each products and completely series pneumatic products .
. Large stock for fast shipping .
. High quality with competitive price .
. Sample order & small quantity order is acceptable .
. Customize according to your special request .
