Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: XQ0600 / 1000 / 1500

Detail Information

Model: XQ0600 , XQ1000 , XQ1500 Thread: 1 / 8 " , 1 / 4 " , 3 / 8 " , 1 / 2 "
Port Size: 6 , 8 , 10 , 15 Flow: ≥ 0 . 5 / 0 . 9 / 2 . 5 / 4 . 5 M ³ / Min
Temperature: 5 ~ 60 ℃ , -35 ~ 60 ℃ Pressure: 0 . 2 ~ 1 . 0MPa , 1 . 5MPa
High Light:

pneumatic air valve

,

pneumatic electric valve

Product Description

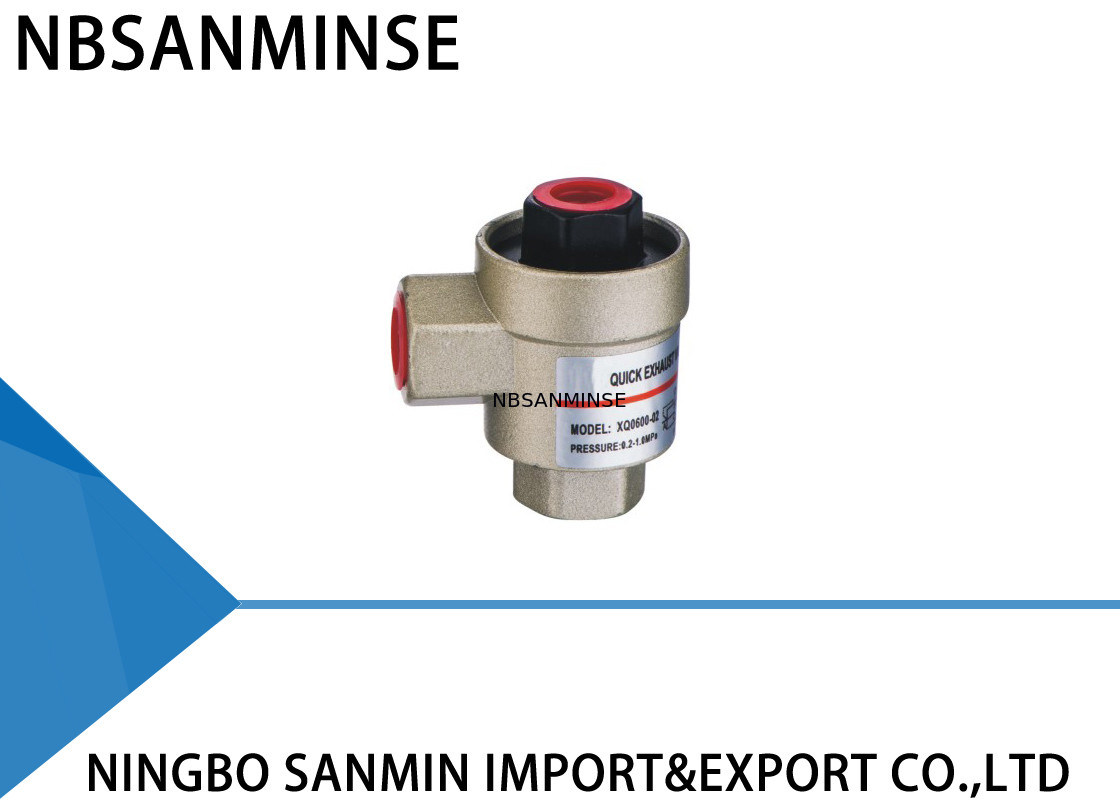

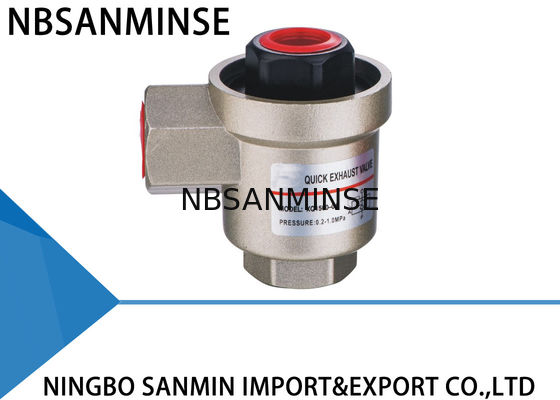

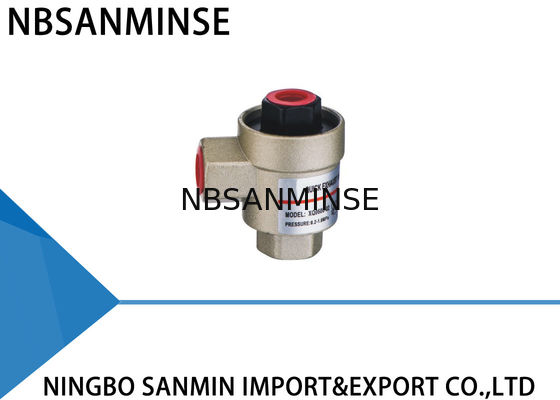

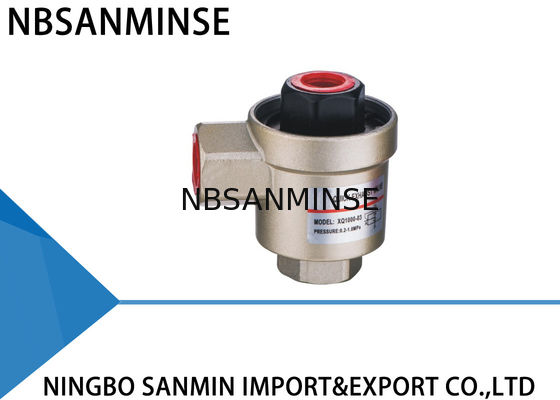

Cylinder Motion Pneumatic Mechanical Valve XQ Series ISO9001 Certification​








Purpose



To improve the piston speed reciprocating motion of cylinder , so that to improving work effciency , there ara Low temperature resistance ' s spool valve and Wear - resisting valve spool to be choosed .



Specifications



Model Thread Port Size(mm) Flow(m³/min) Temperature Pressure (S)
XQ0600 G1/8 6 ≥0.5

5-60℃



-35℃-60℃


0.2-1.0Mpa
1.5Mpa
≤0.01
XQ0600 G1/4 8 ≥0.9 ≤0.03
XQ1000 G3/8 10 ≥2.5 ≤0.04
XQ1500 G1/2 15 ≥4.5 ≤0.05




Overall Diamensien



Model Thread H(mm) L(mm)
XQ0600 G1/8 51 44
XQ0600 G1/4 51 44
XQ1000 G3/8 62 61
XQ1500 G1/2 78 75




Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee




FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
