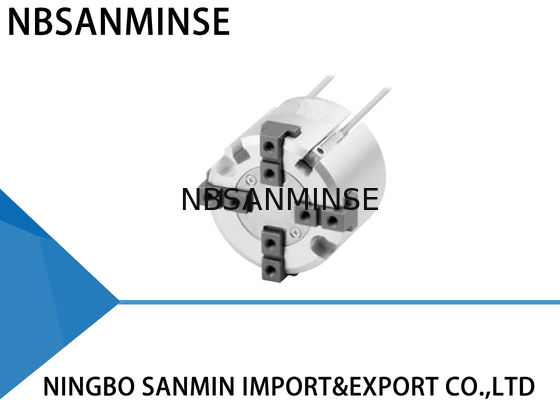

MHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air Gripper

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: China Brand Name: NBSANMINSE
Certification: ISO9001 Model Number: MHS4

Detail Information

Bore Size: 16 - 63 Fluid: Air
Temperature: - 10 To 60 Repeatability: ± 0 . 01
Lubrication: Not Required Action: Double Acting
High Light:

smc locking cylinder

,

smc air cylinders

Product Description

MHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air Gripper






Models / Specifications



Model : MHS4 - 16D , MHS4 - 20D , MHS4 - 25D , MHS4 - 32D , MHS4 - 40D , MHS4 - 50D , MHS4 - 63D



Cylinder bore size ( mm ) : 16 - 63



Fluid : Air



Operating pressure ( MPa ) : 0 . 2 to 0 . 6 , 0 . 1 to 0.6



Ambient and fluid temperature ( ℃ ) : - 10 to 60



Repeatability (mm) : ± 0 . 01



Max . operating frequency ( c.p.m. ) : 120 , 60



Lubrication : Not required



Action : Double Acting



How to Order



Number of fingers

4 : 4 fingers



Bore size

16 : 16mm

20 : 20mm

25 : 25mm



Action

Double acting



Auto switch

Nil : without auto switch ( Built - in magnet )



MHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air Gripper 0MHS4 Series Parallel Type Air Gripper / 4 - Finger Type SMC Similar Air Gripper 1
