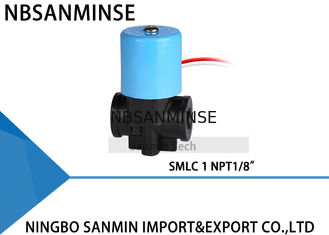

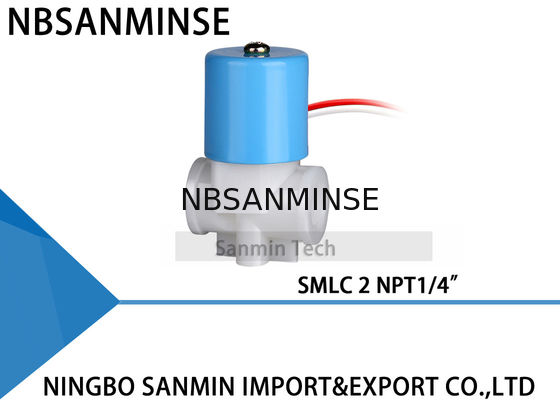

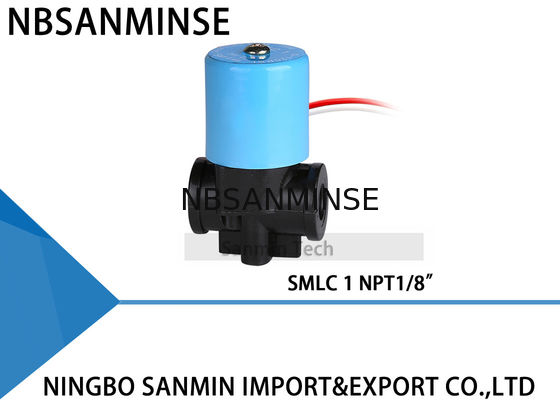

SMLC1 SMLC2 Series Water Dispenser Plastic Solenoid Valve Normally Closed 2 Way Plastic Valvebody 30cm Lead Length
SMLC1 SMLC2
2-way normally closed , 1/8 & 1/4 pipe size , plastic valve body
Specification
Direct acting Normally Closed
Response time : 6~20MSEL
Mounting : Solenoid vertical and upright direction . Fixing screw M5
Using
Fluid media :Water
Fluid Temp :0℃~100 ℃
Ambient Temp :-10 ℃~100 ℃
Characteristics
Power consumption :AC 6.8VA ( Holding ) DC5W
Voltage : AC24V 110V 220V 50/60Hz , DC : 24V
Voltage Tolerance : -10%
Coil class : Class B 130
Duty cycle : 100%
Lead length 30 CM(12")
Component Material
Plunger : IJ117
Seals : EPDM
Body : PP , 1/8(Black) , 1/4(White) , nylon66
Shading Ring : Red copper
Technical Parameter
| Pipe Size |
Orifice |
CV |
Operating Pressure PSI |
Model Code |
| MIN |
MAX-AC |
MAX-DC |
| 1/8” |
2.5(3/32) |
0.21 |
0 |
120 |
120 |
SMLC1 |
| 1/4” |
2.5(3/32) |
0.21 |
0 |
120 |
120 |
SMLC2
|
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee
FAQ
Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .
Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.
Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .
Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .
Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.
