Product Description

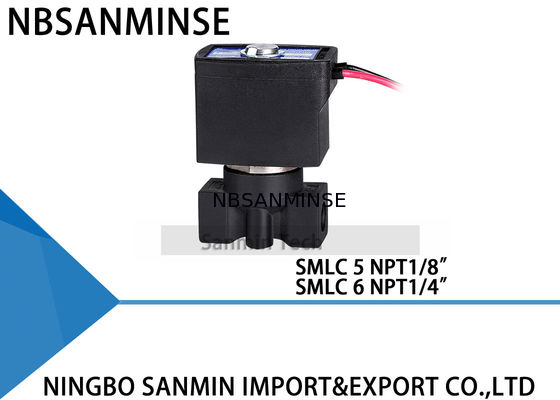

SMLC 5 , SMLC 6 Series Water Dispenser Plastic Solenoid Valve Normally Closed 2 Way 1/8 1/4 NPT Pipe Size EPDM Seals
SMLC1 SMLC2 SMLC5 SMLC6
2-way normally closed , 1/8 & 1/4 pipe size , plastic valve body
Specification
Direct acting Normally Closed
Response time : 6~20MSEL
Mounting : Solenoid vertical and upright direction . Fixing screw M5
Using
Fluid media :Water
Fluid Temp :0℃~100 ℃
Ambient Temp :-10 ℃~100 ℃
Characteristics
Power consumption :AC 6.8VA ( Holding ) DC5W
Voltage : AC24V 110V 220V 50/60Hz , DC : 24V
Voltage Tolerance : -10%
Coil class : Class B 130
Duty cycle : 100%
Lead length 30 CM(12")
Component Material
Plunger : IJ117
Seals : EPDM
Body : PP , 1/8(Black) , 1/4(White) , nylon66
Shading Ring : Red copper
Technical Parameter
| Pipe Size |
Orifice |
CV |
Operating Pressure PSI |
Model Code |
| MIN |
MAX-AC |
MAX-DC |
| 1/8” |
2.5(3/32) |
0.21 |
0 |
120 |
120 |
SMLC1 |
| 1/4” |
2.5(3/32) |
0.21 |
0 |
120 |
120 |
SMLC2 |
| 1/8” |
3.0 |
0.23 |
0 |
120 |
120 |
SMLC5 |
| 1/4” |
3.0 |
0.23 |
0 |
120 |
120 |
SMLC6
|
