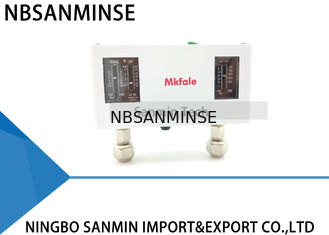

Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points

Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points
Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points

Large Image :  Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: PC58
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiation
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS

Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points

Description
Voltage: AC110V AC220V , DC24V Temperature: -20 ~ 110 ℃
Model: Dual Pressure Switches Type: Pressure Controller Switch
Media: Refrigerant , Air , Water Max. Voltage: 250VAC
Highlight:

magnetic solenoid valve

,

electric solenoid valve

PC58 Dual Pressure Switches Use With Refrigerants System Used In Air , Water With Two Pressure Set Points In One Switch





It is usually used with fluorinated refrigerants to control the pressure of compressor in refrigeration system. It can also be used in air and water. It provide two pressure set points in one switch.


Electrical Function
B-C
D
Rated Amps .(A)Rated Voltage (V)
125VAC
250VAC
24VDC
250VAC

Full Load
20A
10A
8A
50VA
Locked Roter
72A
72A
64A
4A
Temperature
-20~110℃





Specification



Model Press Side Range (Bar) Differential(Bar) Factory Setting (Bar) Max Operating Pressure(Bar)
Min Max Min Max OFF ON
PC5832 Low Side -0.2 7.5 0.7 4 4 2 20
High Side 8 32 Fixed 4 20 15 35
PC5832HM Low Side -0.2 7.5 0.7 4 4 2 20
High Side 8 32 Fixed 4 20 Manual Reset 35
PC5832HLM Low Side -0.2 7.5 Fixed 4 3 Manual Reset 20
High Side 8 32 Fixed 4 20 Manual Reset 35






FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee


Industrial PC58 Dual Pressure Switches Air / Water With Two Pressure Set Points 0
