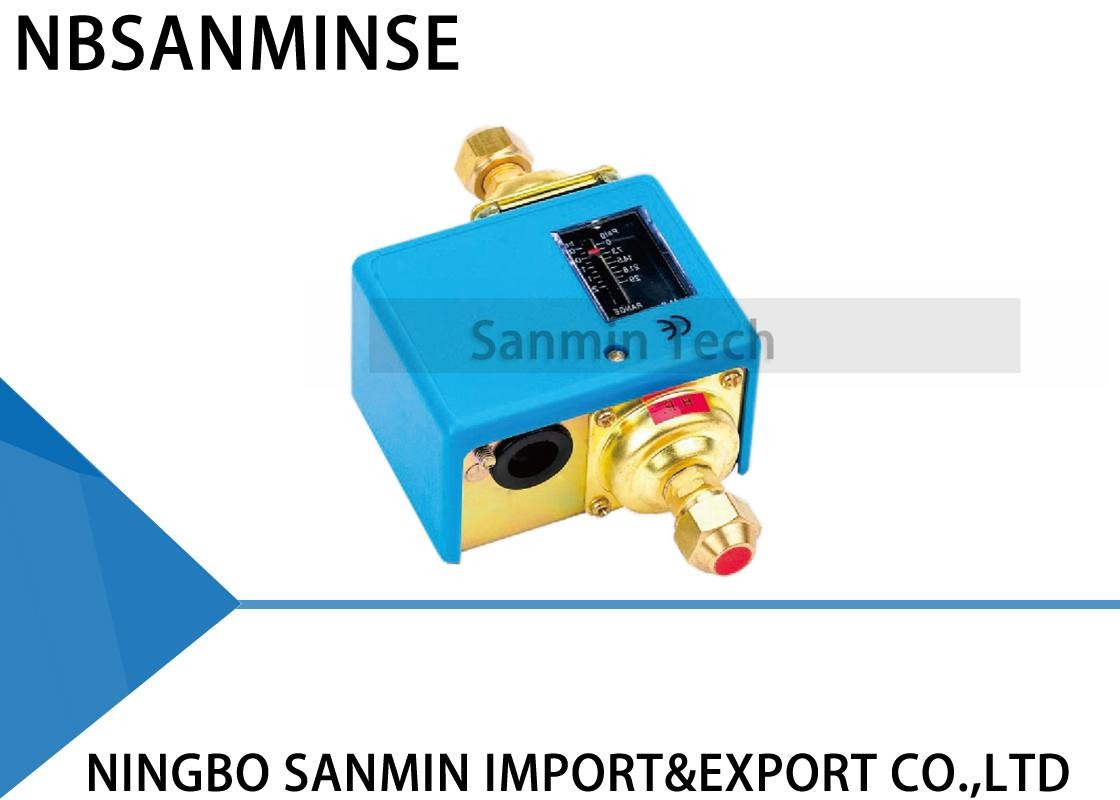

High Sensitive Components PC5D Differential Pressure Switch For Air / Water / Oil

Minimum Order Quantity : 20 Price : Negotiation
Packaging Details : Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice Delivery Time : Negotiation
Payment Terms : L/C, T/T, Western Union Supply Ability : Negotiation
Place of Origin: NINGBO Brand Name: NBSANMINSE
Certification: CE Model Number: PC5D

Detail Information

Voltage: AC220V , DC24V , Etc Temperature: -20 ~ 110 ℃
Quality Standard: Best Max Pressure: 33 Bar
Full Load: 15A , 8A Locked Roter: 72A , 64A
High Light:

electronic solenoid valve


electric solenoid valve

Product Description

PC5D Oil Differential Pressure Switch Used In Water , Oil With High Sensitive Components



These differential pressure switches for refrigeration compressor is usually used with fluorinated refrigerants to control the pressure of compressor in refrigeration system. It can also be used in air and water. It provide two pressure set points in one switch. Several models are available with drip-proof enclosure for marine application or in explosion-proof enclosure for special applications. Various conatact functions are available. Internal Micro-swith ensures reliable switching. It is provided standard Mounting Bracket.


Electrical Function


Rated Amps.(A)/Rated Voltage (V) : 125VAC , 250VAC , 24VDC

Non-Inductive Current : 20A , 10A  , 10A

Full Load : 15A , 8A , 8A

Locked Rotter : 72A , 72A , 64A

Temperature : -20~110℃




Model Differential Adjust Range (Bar) Factory Setting (Bar) Max Operating Pressure (Bar)
Min Max
PC5D2 0.5 2 0.5 16.5
PC5D4 0.5 3.5 1 16.5
PC5D6 0.5 3.5 1 33
PC5D6H 1 6 1 16.5
PC5D4H 1 6 1 33






Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece


Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection


Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.


Why choose us

1: Various style for each products and completely series pneumatic products .
2: Reliable quality assured and active after-sell service
3: One year quality guarantee
