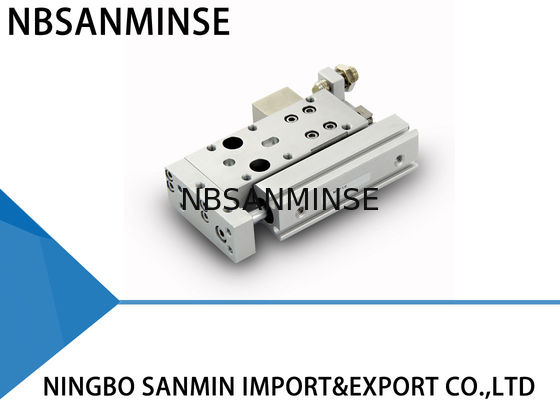

MXF Low Profile Slide Table Series Pneumatic Air Cylinder Without Auto Switch

MXF Low Profile Slide Table Series Pneumatic Air Cylinder Without Auto Switch

  • MXF Low Profile Slide Table Series Pneumatic Air Cylinder Without Auto Switch
MXF Low Profile Slide Table Series Pneumatic Air Cylinder Without Auto Switch
Product Details:
Place of Origin: China
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: MXF
Payment & Shipping Terms:
Minimum Order Quantity: 20
Price: Negotiation
Packaging Details: Plastic Bags , Boxes , Carton , Pallet Or As Customer Advice
Delivery Time: Negotiation
Payment Terms: L/C, T/T, Western Union
Supply Ability: Negotiation
Contact Now
Detailed Product Description
Bore Size: 8 , 12 , 16 , 20 Mm Piping Port Size: M3 × 0 . 5 , M5 × 0 . 8
Fluid: Air Action: Double Acting
Operating Pressure: 0 . 15 To 0 . 7 MPa Temperature: - 10 To 60 ℃
High Light:

smc air cylinders

,

guided pneumatic cylinder

MXF Low Profile Slide Table Series Without Auto Switch ( Built - in magnet ) Pneumatic Cylinder







Specification



Bore Size ( mm ) 8 12 16 20
Piping Port Size M3 × 0 . 5 M5 × 0 . 8
Fluid Air
Action Double Acting
Operating Pressure 0 . 15 to 0 . 7 MPa
Proof Pressure 1 . 05MPa
Ambient And Fluid Temperature - 10 to 60 ℃

Operating Speed Range

( Average operating Speed ) Note)

50 to 500 mm / s
Cushion Rubber Bumper on both sides
Lubrication Non - Lube
Auto switch ( Option )

Reed auto switch

Solid state auto switch ( 2 – wire , 3 – wire )

2 – Color indication solid State auto switch ( 2 – wire , 3 – wire )

Stroke Length Tolerance

+1mm

0mm

Stroke Adjustment Range Extension end 5 mm / Retraction end 5 mm



Standard Stroke



Model Standard Stroke ( mm )
MXF8 10 , 20 , 30
MXF12 20 , 30 , 50
MXF16 30 , 50 , 75
MXF20 30 , 50 , 75 , 100



FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: What ' s your business scope ?
A: Our business scope is SMC type high quality cylinder , air source treatment , solenoid valve ,water valve,steam valve, mechnical valve ,foot valve,angle seat valve,anti-explosion valve,pluse vlave, pneumatic valve ,hydraulic ball valve,hydraulic ss ball valve,hydraulic check valve,hydraulic solenoid valve ,all type of coil,lubrication pump and parts,SS316 fitting,quick coupler , etc .



Q: What ' s your delivery date ?
A: It depends on the number of orders . Delivery date is 7 - 30 days .if small order,pls buy from our aliexpress shop, If you need emergency products , we can speed up the production of the first arrangement .



Q: What is the price of the product ?
A: Our prices are based on the size and type of material , if you can give me the information ,
then we can give you an estimated price is for reference only . We can do any size and any desgin .





Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .

3: Provide free products information .
4: High quality with competitive price .
5: Sample order & small quantity order is acceptable .

MXF Low Profile Slide Table Series Pneumatic Air Cylinder Without Auto Switch 0MXF Low Profile Slide Table Series Pneumatic Air Cylinder Without Auto Switch 1
