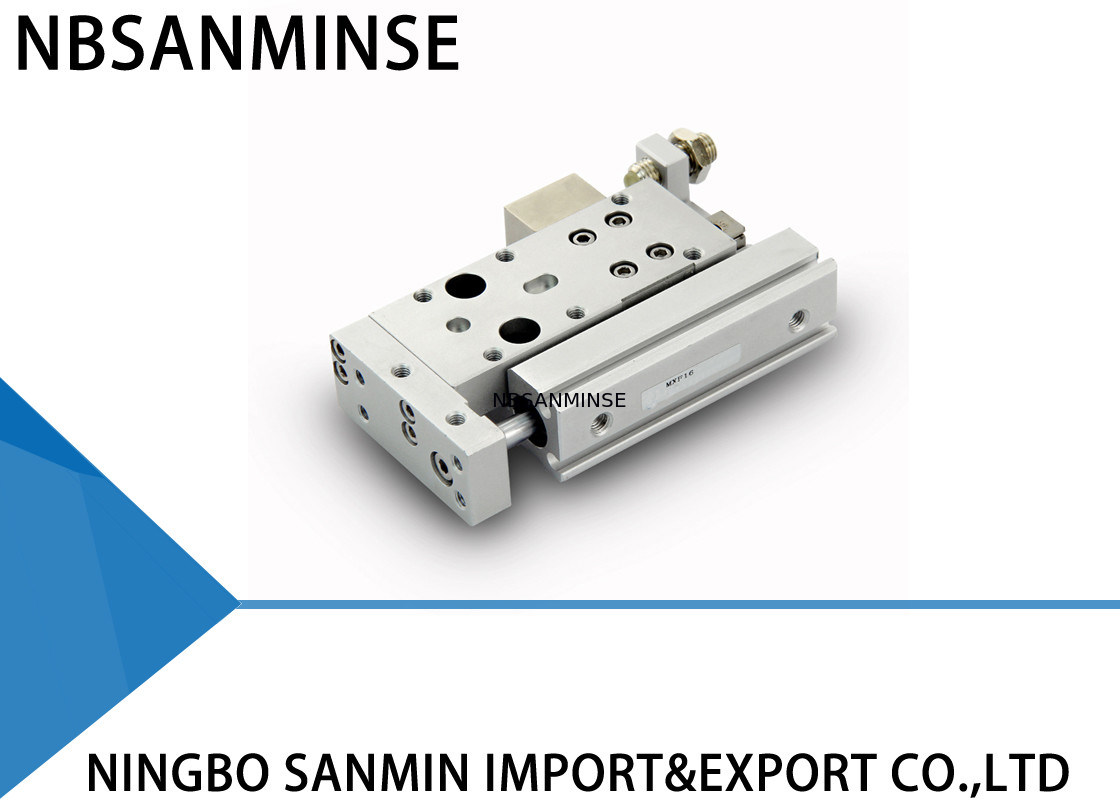

MXF Low Profile Slide Table Series Without Auto Switch ( Built - in magnet ) Pneumatic Cylinder
Specification
| Bore Size ( mm ) |
8 |
12 |
16 |
20 |
| Piping Port Size |
M3 × 0 . 5 |
M5 × 0 . 8 |
| Fluid |
Air |
| Action |
Double Acting |
| Operating Pressure |
0 . 15 to 0 . 7 MPa |
| Proof Pressure |
1 . 05MPa |
| Ambient And Fluid Temperature |
- 10 to 60 ℃ |
|
Operating Speed Range
( Average operating Speed ) Note)
|
50 to 500 mm / s |
| Cushion |
Rubber Bumper on both sides |
| Lubrication |
Non - Lube |
| Auto switch ( Option ) |
Reed auto switch
Solid state auto switch ( 2 – wire , 3 – wire )
2 – Color indication solid State auto switch ( 2 – wire , 3 – wire )
|
| Stroke Length Tolerance |
+1mm
0mm
|
| Stroke Adjustment Range |
Extension end 5 mm / Retraction end 5 mm |
Standard Stroke
| Model |
Standard Stroke ( mm ) |
| MXF8 |
10 , 20 , 30 |
| MXF12 |
20 , 30 , 50 |
| MXF16 |
30 , 50 , 75 |
| MXF20 |
30 , 50 , 75 , 100 |
