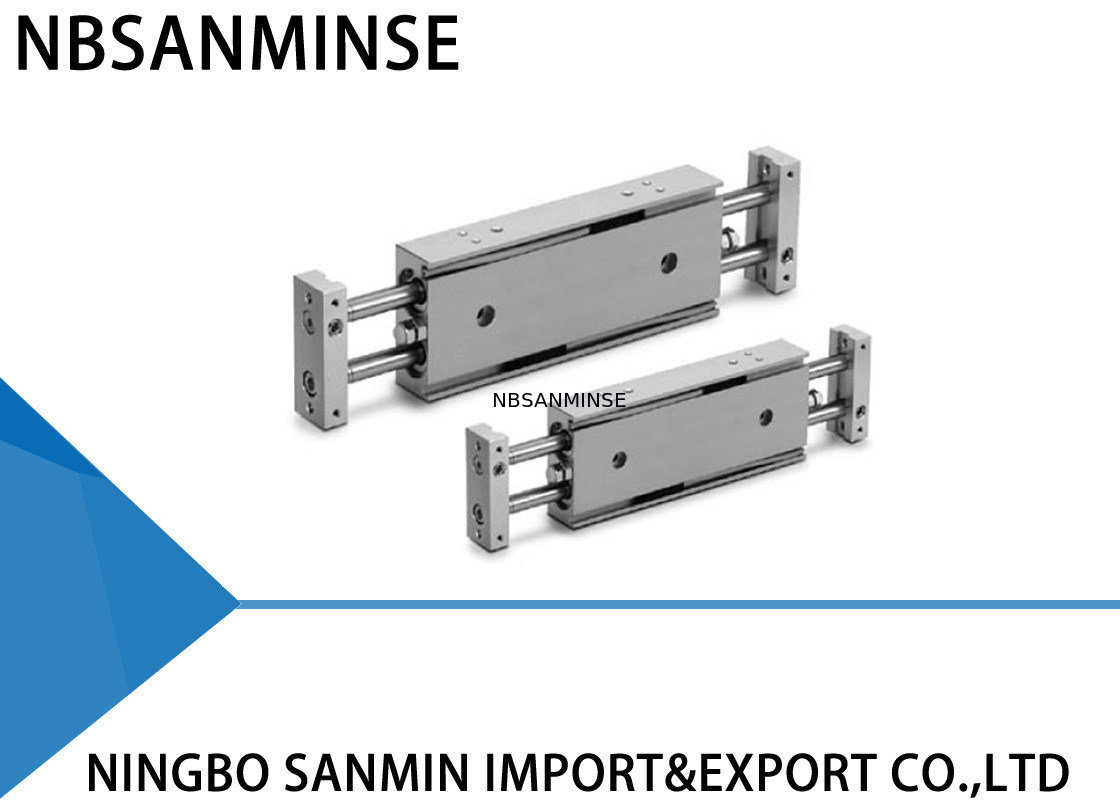

CXSW Double Rod Type Dual Rod Cylinder Without Auto Switch Pneumatic Cylinder
Specification
| Bore Size ( mm ) |
6 |
10 |
15 |
20 |
25 |
32 |
| Fluid |
Air ( Non – lube ) |
| Proof Pressure |
1.05MPa |
| Max Pressure |
0.7MPa |
| Min Pressure |
0.15MPa |
0.1MPa |
| Ambient and fluid temperature |
- 10 to 60 ℃ ( No – freezing ) |
| Piston speed |
50 to 500 mm / s |
| Cushion |
Bumper is standard on both ends |
| Stroke adjustable range |
0 to – 10 mm compared to the standard stroke
( Extended end : 5mm , Retracted end : 5 mm )
|
| Port Size |
M5 × 0.8 |
RC 1/8 |
| Bearing Type |
Slide Bearing , Ball bushing bearing ( Small dimensions for both) |
Standard Stroke ( mm )
| Model |
Standard Stroke |
Long Stroke |
| CXSW 6 |
10 , 20 , 30 , 40 , 50 |
- |
| CXSW 10 |
10 , 20 , 30 , 40 , 50 |
75 , 100 , 125 , 150 |
| CXSW 15 |
| CXSW 20 |
10 , 20 , 30 , 40 , 50 , 75 , 100 |
125 , 150 , 175 , 200 |
| CXSW 25 |
| CXSW 32 |
Bearing Type
M : Slide bearing
L : Ball bushing bearing
Bore size / Stroke ( mm )
6 : 10 , 20 , 30 , 40 , 50
10 , 15 : 10 , 20 , 30 , 40 , 50
20 , 25 , 32 : 10 , 20 , 30 , 40 , 50 , 75 , 100
Auto switch
Nil : Without auto switch ( Built - in magnet )
Nimber of auto switches
Nil : 2cps
S : 1 pc
N : " n " pcs
