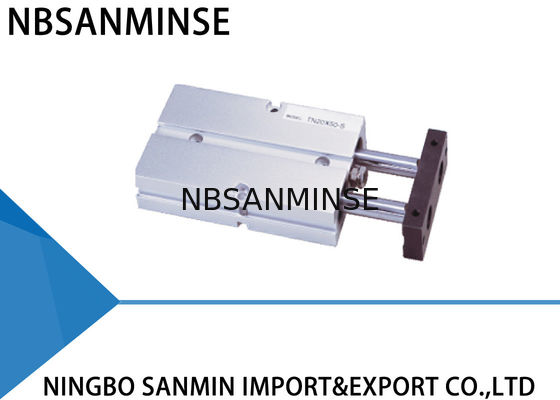

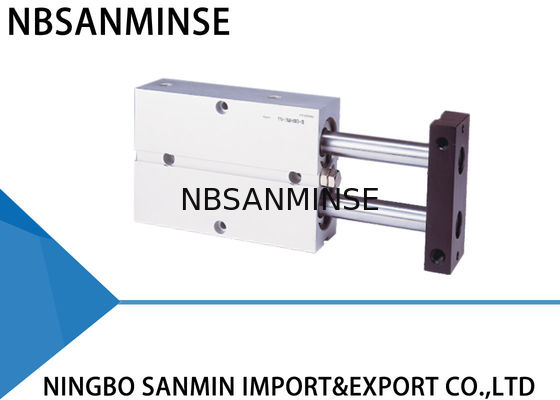

TN Series Twin Rod Cylinder Double Acting AirTac Similar Type High Quality Sanmin
Product Feature
1. Enterprises standard is implemented .
2. Embeded installation and fixation mode saves the installation space .
3. It is good resistance to bending and twisting moments .
4. Mounting holes on three sides facilitates multi – position mounting .
5. Bumper in front of the barrel can adjust the stroke of cylinder and reliever impact .
6. Standard configuration of this series has magnet and the type without magnet is not available .
Specification
| Bore Size (mm) |
10 |
16 |
20 |
25 |
32 |
| Acting Type |
Double Acting |
| Fluid |
Air ( to be filtered by 40 um filter element ) |
| Operating Pressure |
0.1 ~ 1.0 MPa ( 14 ~ 145 psi ) |
| Proof Pressure |
1.5 MPa (215psi ) |
| Temperature C |
- 20 ~ 70 |
| Speed rang mm/s |
30 - 500 |
| Adjustable stroke mm |
-10 ~ 0 |
| Stroke tolerance |
+1.0
0
|
| Cushion Type |
Bumper |
| Non – rotating tolerance |
±0.4° |
±0.3° |
| Port Size |
M5 × 0.8 |
1/8” |
Installation & Usage
1. When load changes in the work , the cylinder with abundant output capacity shall be ed.
2. Relative cylinder with high temperature resistance or corrosion resistance shall be chosen under the condition of high temperature or corrosion ;
3. Necessary protection measure shall be taken in the environment with higher humidity , much dust or water drops , oil dust and welding dregs .
4. Dirty substances in the pipe must be eliminated before cylinder is connected with pipeline to prevent the entrance of particles into the cylinder ;
5. The medium used by cylinder shall be filtered to 40um or below .
6. As both the front cover and piston are short , too large stroke can not be ed .
7. Anti – freezing measure shall be adopted under low temperature environment to prevent moisture freezing .
8. The cylinder shall avoid redial load in operating to maintain the normal and extend service life .
9. If the cylinder is dismantled and stored for a long time , please conduct anti – rust treatment to the surface . Anti – dust cap shall be ed into the inlet and outlet ports , As the precision of the manufacture and guide is high , Please do not dismantle the fixed block or cylinder cover .
Why choose us
1: High quality with competitive price .
2: Sample order & small quantity order is acceptable .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
