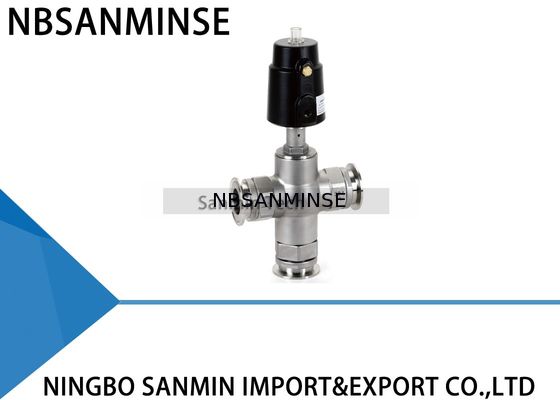

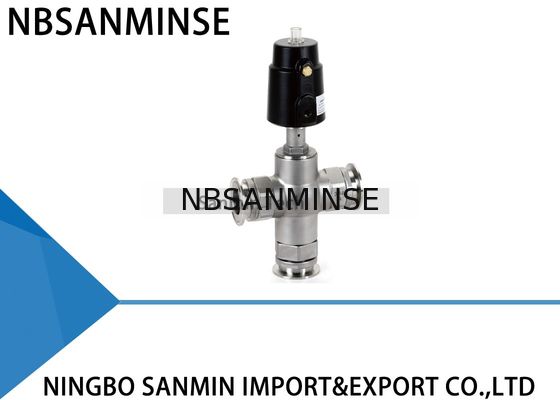

JDF1100 / JDF1200 Pneumatically Operated 3 - Way Seat Valve NBSANMINSE
3/2 - Way Seat Valve Pneumatically Operated , For medium up to + 180 C , Threaded port & Tri - Clamp Connection DN 15-50
For mixing or distributing mediums ;
Conreolled by a pilot valve ;
Flow optimized body in stainless steel ;
Long Service life and maintenance - free operation.
Versions ( Standard )
1: Version 1
2: Version 2
3: Version 3
Acting Type
S : Single Acting D: Doouble Acting
Body Material
Blank: S.S304 (Standard )
4: S.S 316
5: S.S 316L
Nominal Diameter
15 : G1/2 , 20 : G3/4 , 25 : G1 , 32 : G1-1/4 , 40 : G1-1/2 , 50 : G2
Actuator Material Code
P : PA Actuator
S : S.S. Actuator
A : Aluminum Actuator
Model

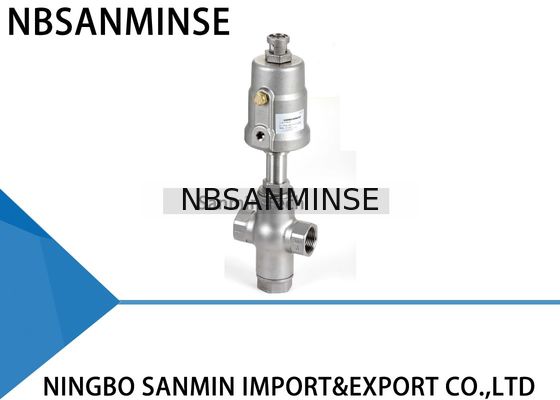

JDF1100 : 3/2 Way Seat Valve Threaded Ends
JDF1200 : 3/2 Way Seat Valve Tri - Clamp Ends
JDF1100 Series 3-Way seat valve consists of a pneumatically operated actuator and a 3-way valve body . The actuator is available in three different materials , Pa , Aluminum or stainless steel , Depending on the ambient temperature and customer requirements . Materials available for the valve body are stainless steel 304 316 and 316L . Interchanging of pressure and service ports enables different fluidic circuit functions , such as mixing or distributing mediums t. The flow – optimized valve body of JDF1100 allows excellent flow rates . The tried and tested self – adjusting gland secures a high level of tightness and thus ensures reliable operation over years . The 3 – Way valve JDF1100 is controlled by o pilot valve . It can be equipped easily with an electrical position indicator . For the user . The compact JDF1100 is often an economical alternative to two single shut – off valves
