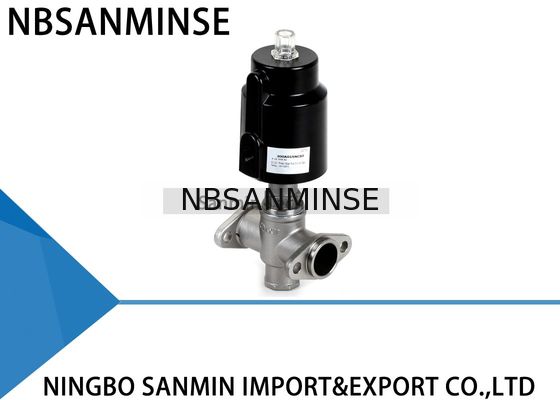

Pneumatically Operated 3 - Way Angle Seat Valve , Manifold Valve Type JDF1300
3/2 - Way Seat Valve Pneumatically Operated , For Medium up to +180C , Manifold Valve Type , Threaded Port & Weld ends connection DN 15-25
For mixing or distributing mediums ;
Controlled by a pilot valve ;
Flow optimized body in stainless steel ;
Long Service life and maintenance - free operation .
Port Connection Type
T : Threaded port
W : Weld end
Acting Type
S : Single Acting
DS : Double Acting
Body Material
Blank : SS304 ( Standard )
4 : SS316
5 : SS316L
Control Function
NO : Normally Open
NC : Normally Closed ( Standard )
Na : Liberty
Nominal Diameter
15 : G1/2 , G3/4 , G1
Actuator Material Code
P : PA Actuator
S : SS Actuator
A : Aluminum Actuator
Model
JDF1300 : 3/2 - Way Seat Valve ( Manifold type )
JDF1300 Series 3-Way seat valve consists of a pneumatically operated actuator and a 3-way valve body . The actuator is available in three different materials , PA , aluminum and stainless steel , Depending on the ambient temperature and customer requirements . Materials available for the valve body are stainless steel 304 , 316 and 316L . With our full range of compatible accessories , the mini-flange construction of the 3-way valve housing enables an unlimited number of the valves to be chained into linear groups , facilitating the neat and efficient layout of the pipeline system .
Interchanging of pressure and service ports enables different fluidic circuit functions , such as mixing of distributing of the mediums . The flow – optimized valve body of JDF1300 allows excellent flow rates, The tried and tested self – Adjusting gland secures a high level of tightness and thus ensures reliable operation over years .
For the user , the integrated valve design guarantees the neat and orderly installation of the equipment system , as well as economical benefits .
Why choose us
1: Provide free products information .
2: Reliable quality assured and active after-sell service
3: One year quality guarantee
4: Various style for each products and completely series pneumatic products .
5: Large stock for fast shipping .
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
