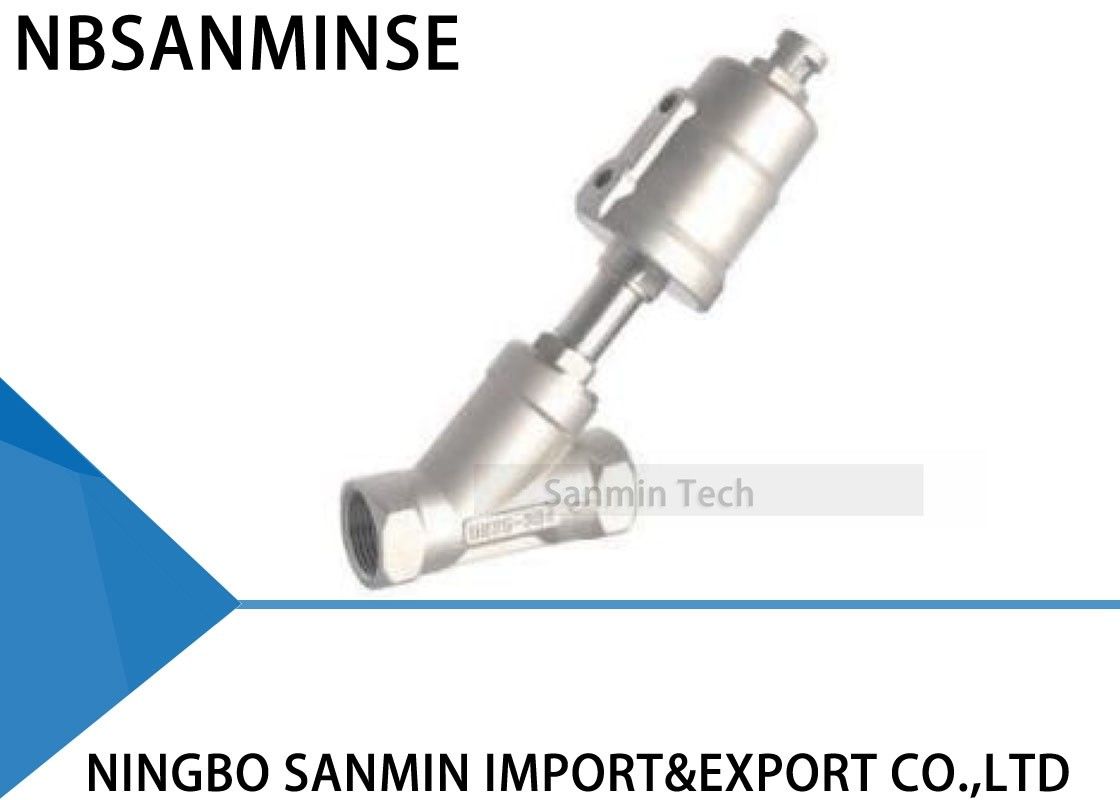

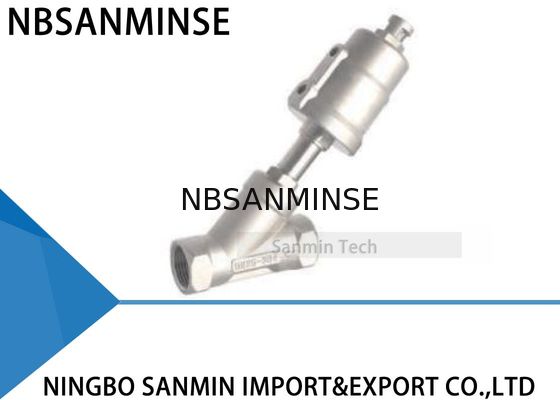

JDF100 2 Way Stainless Steel Pneumatic Angle Seat Valve Piston Control Valve for Air Oil Gas
| Control Function |
Acting type |
Flow Direction |
Water Hammer |
Application |
| Normally closed |
Single Acting |
Upstream |
Yes |
For compressible medium (such as gas and steam) and
liquid of comparatively low pressure
|
| Downstream |
No |
For anti water hammer pipeline, bears certain pressure difference |
| Double Acting |
Upstream |
Yes |
Reliable performance, bears pressure difference; valve closes automatically in case of an emergency. |
| Downstream |
No |
For pipeline required of better anti water hammer, bears big pressure difference. |
| Normally Open |
|
Upstream |
Yes |
For pipeline where valve keeps open. Double acting & normally open when silencer comes off. |
| Downstream |
No |
For pipeline where valve keeps open, anti water hammer, double acting & normally open when silencer comes off
|
| Model Specification |
Normally Closed |
P010NC |
P015NC |
P020NC |
P025NC |
P032NC |
P040NC |
P050NC |
P065NC |
P080NC |
| Normally Open |
P010NO |
P015CO |
P020NO |
P025NO |
P032NO |
P040NO |
P050NO |
P065NO |
P080NO |
| Material of Body / Actuator |
S.S304 316 / PA |
| Operating Method |
Plunger Pilot |
| Ambient and fluid |
Air, Water , Oil. Steam(50CTS Bellow) |
| Port size |
G3/8 |
G1/2 |
G3/4 |
G 1 |
G1 1/4 |
G1 1/2 |
G 2 |
G2 1/2 |
G 3 |
| Nominal Diameter (mm) |
13 |
13 |
18 |
24 |
31 |
35 |
45 |
61 |
80 |
| Kv (m3/h) |
3.7 |
4.2 |
9 |
19 |
33 |
42 |
59 |
90 |
135 |
|
Model
Specification
|
Normally Closed |
S010NC |
S015NC |
S020NC |
S025NC |
S032NC |
S040NC |
S050NC |
S065NC |
S080NC |
| Normally Open |
S010NO |
S015NO |
S020NO |
S025NO |
S032NO |
S040NO |
S050NO |
S065NO |
S080NO |
| Material of Body / Actuator |
S.S304 316 /PA |
| Seat seal |
PTFE / FPM |
| Stem seal |
PTFE / FPM |
| Piston Seal |
PTFE / FPM / NBR |
| Temperature of Medium |
PTFE |
-10~200 ℃ |
| FPM |
-10~150 ℃ |
| Installing |
Down steam / Up steam |
