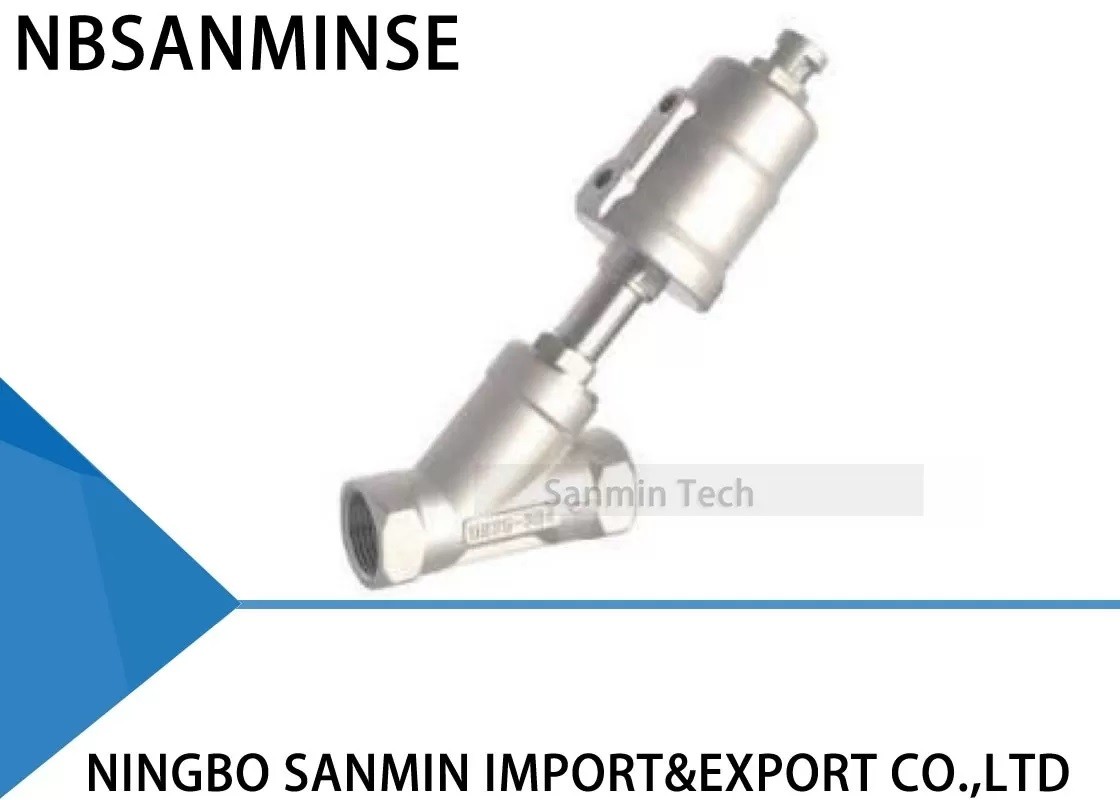

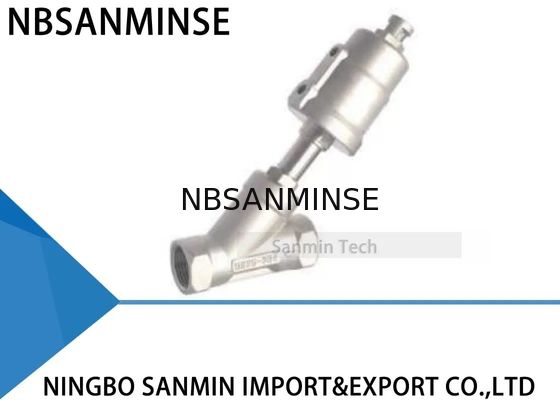

Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen

Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen
Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen

Large Image :  Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: JDF100
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen

Description
Model: 100 Series Angle Seat Valve Actuator Material: PA / Stainless Steel / Aluminium
Nominal Diameter: G3 / 8 , G1 / 2 , G3 / 4 , G 1 , G1 1 / 4 , G1 1 /2 , G2 , G2 1 / 2 , G3 Control Function: Normally Open / Closed
Body Material: Stainless Steel 304 / 316 / 316L Acting Type: Single Acting / Double Acting
Highlight:

Stainless Steel Pneumatic Piston Air Valve

,

PA Pneumatic Piston Air Valve

,

Double Acting Pneumatic Piston Air Valve

Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve for Air Oil Gas Filling Machine Nitrogen





Control Function Acting type Flow Direction Water Hammer Application
Normally closed Single Acting Upstream Yes

For compressible medium (such as gas and steam) and

liquid of comparatively low pressure
Downstream No For anti water hammer pipeline, bears certain pressure difference
Double Acting Upstream Yes Reliable performance, bears pressure difference; valve closes automatically in case of an emergency.
Downstream No For pipeline required of better anti water hammer, bears big pressure difference.
Normally Open   Upstream Yes For pipeline where valve keeps open. Double acting & normally open when silencer comes off.
Downstream No For pipeline where valve keeps open, anti water hammer, double acting & normally open when silencer comes off





Model Specification Normally Closed P010NC P015NC P020NC P025NC P032NC P040NC P050NC P065NC P080NC
Normally Open P010NO P015CO P020NO P025NO P032NO P040NO P050NO P065NO P080NO
Material of Body / Actuator S.S304 316 / PA
Operating Method Plunger Pilot
Ambient and fluid Air, Water , Oil. Steam(50CTS Bellow)
Port size G3/8 G1/2 G3/4 G 1 G1 1/4 G1 1/2 G 2 G2 1/2 G 3
Nominal Diameter (mm) 13 13 18 24 31 35 45 61 80
Kv (m3/h) 3.7 4.2 9 19 33 42 59 90 135

Model

Specification

 Normally Closed S010NC S015NC S020NC S025NC S032NC S040NC S050NC S065NC S080NC
Normally Open S010NO S015NO S020NO S025NO S032NO S040NO S050NO S065NO S080NO
Material of Body / Actuator S.S304 316 /PA
Seat seal PTFE / FPM
Stem seal PTFE / FPM
Piston Seal PTFE / FPM / NBR
Temperature of Medium PTFE -10~200 ℃
FPM -10~150 ℃
Installing Down steam / Up steam





FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .



Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.



Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .



Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection



Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



Why choose us


1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping.
3: High quality with competitive price.
4: Sample order & small quantity order is acceptable.
5: Customize according to your special request.
6: Provide free products information.
7: Reliable quality assured and active after-sell service
8: One year quality guarantee

Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen 0Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen 1Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen 2Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen 3Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen 4Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen 5Angle Seat Valve Pneumatic Piston Air Valve 2 Way Stainless Steel Valve For Air Oil Gas Filling Machine Nitrogen 6


Our products are high quality with 12 month guarantee ,and support paypal payment.
