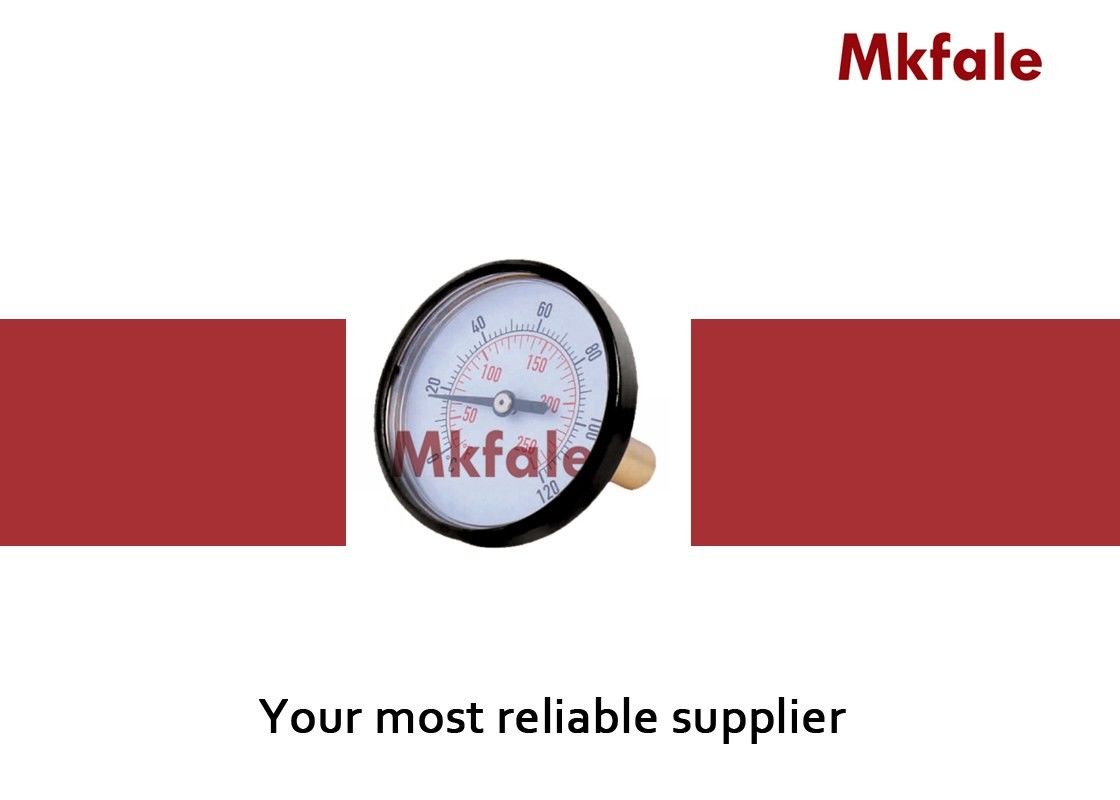

SMKB Black Steel Normal Industrial Thermometer Gauge Thermometer Temperature Element
| Normal Industrial Thermometer |
SMKB |
SMKP |
SMKS |
SMKA |
| Technical Specification |
Service intended |
Heating and plumbing |
| Nominal Size |
50,63,80,100mm |
| Temperature element |
Coiled bimetal |
| Accuracy |
Class 2.5 |
| Bulb |
Stem with detaching thermowell |
| Working range |
Maximum scale value |
| Location of stem |
Centre back |
| Case material |
Black Steel(SMKB);Chromed steel(SMKP);Stainless steel(SMKS);Aluminium(SMKA) |
| Window |
Plastic or instrument glass |
Why choose us
1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Customize according to your special request .
4: Provide free products information .
5: Reliable quality assured and active after-sell service
6: One year quality guar
Main application fields and specific scenes
Chemical industry:
Reactor monitoring: in the chemical reaction process, accurate control of the temperature of the reaction furnace is the key to ensure the reaction efficiency and product quality.
Pipeline temperature control: Monitor the temperature of chemicals during pipeline transportation to prevent the material from affecting the mobility due to solidification or solubility change.
Power industry:
Generator and transformer monitoring: measure the temperature of generator rotor, transformer and cable to prevent overheating and ensure safe operation of equipment.
Food processing and freezing industry:
Production process temperature control: monitor and control the temperature in all stages of food production to ensure the quality and safety of food.
Refrigerated storage: monitor the temperature of the cold storage and refrigeration facilities to ensure that the food is stored at a safe temperature.
Medical and Pharmaceutical Industry:
Laboratory temperature monitoring: ensure the accuracy and consistency of temperature during the experiment and production.
Drug storage: monitor and control the storage temperature of drugs and vaccines to ensure their effectiveness and safety.
Metalwork and Metallurgy:
Blast furnace and furnace monitoring: control the temperature in blast furnace and furnace to ensure stable and efficient smelting process.
Heating and Ventilation (HVAC):
System temperature measurement: measure the temperature of air, water and refrigerant in the HVAC system to ensure the normal operation and comfort of the system.
Characteristics and advantages of industrial thermometers
Durability: Industrial thermometers are typically rugged and can be adapted to challenging or hazardous operating environments.
Functionality: Possibility of additional functions such as multiple probe types (e.g. thermocouples, thermistors), backlight display, IP IP enclosure, etc.
Non-intrusive measurement: some surface thermometers are installed on the outer surface, which can conduct non-contact measurement on the pipeline, and are suitable for complex installation or inconvenient contact.
Integrated control: it can be integrated with the automatic control system for automatic temperature monitoring and adjustment to improve production efficiency.
Q: Could you offer the free samples ?
A: Yeah, but it depends products, Pls contact us ina@pneuhydr.com or whatsapp 0086 15168536055
Q: What ' s your business scope ?
A: Our business scope is service of exporter automation parts with full container, and sell air cylinder , air source treatment , solenoid valve , air valve, motorize valve , Brass valve, hydraulic valve, hydraulic cylinder, air and oil fitting, pressure gauge etc .
Q: What types of products you can make ?
A: We can make many kinds of stainless steel, brass ,aluminum materials processing .like high pressure Valve / solenoid valve / electric valve / water valve/pneumatic valve/air cylinder/hydraulic valve/hydraulic accumulator products and so on .
Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization if it is possible .
Q:Can you provide original famous pneumatic and hydraulic,instruments brand goods ?
A: Yes,We can supply like Festo,Smc,Ckd,Burket,Hydac,Rexroth,Siemens,Rosemount,Marsh ,Endress+Hauser etc.
Q: Is there a warranty available?
A: Yes, normally products is one year quality guarantee.
Q: Is the connector in British or Metric system? What is the difference between PT, NPT, and G threads?
A: The G thread is cylindrical and does not seal itself, requiring additional gaskets to prevent leakage. PT and NPT are conical, and the internal and external threads become tighter and tighter when tightened. Sealing is achieved through the deformation of the threads, and sealant or tape is usually used in conjunction to enhance the sealing effect
G-thread is a cylindrical straight pipe used for non sealed connections; PT thread is a conical tube that relies on the deformation and sealing of the thread itself; NPT is also a conical tube with a tooth profile angle of 60 degrees, mainly used in North America
Q: How to convert pressure units: MPa, bar, psi, kg/cm ²?
A: 1MPa=10bar≈145psi≈10kg
Q:What usually causes the burnout of solenoid valve coils?
A:Incorrect voltage and hz, frequent switching, pilot head entering liquid,valve core and spring problem,environment hot,heavy vibration etc.
Q: What should be noted for pneumatic components in high temperature or extremely cold environments?
| Focus Point |
High Temperature Environment Countermeasures |
Extreme Cold Environment Countermeasures |
| Seals |
Fluororubber, PTFE |
Low-temperature nitrile, silicone rubber, polyurethane |
| Lubrication |
High-temperature synthetic grease (low volatility) |
Low-temperature grease (low pour point, low viscosity) |
| Air Supply Treatment |
Strengthen cooling, efficient water removal |
Ultra-low dew point drying (refrigeration + adsorption type), heat tracing |
| Metal Components |
Reserve expansion clearance |
Select materials with low-temperature toughness, prevent leakage due to cold shrinkage |
| Control Components |
High heat-resistant grade coils, heat dissipation, low power consumption |
Install insulation boxes, local heating, prevent cold condensation |
| Installation |
Keep away from heat sources, add heat insulation plates |
Avoid exposure to wind and snow, wrap with thermal insulation materials |
