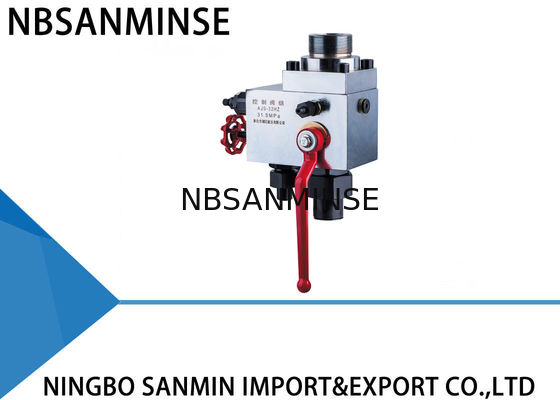

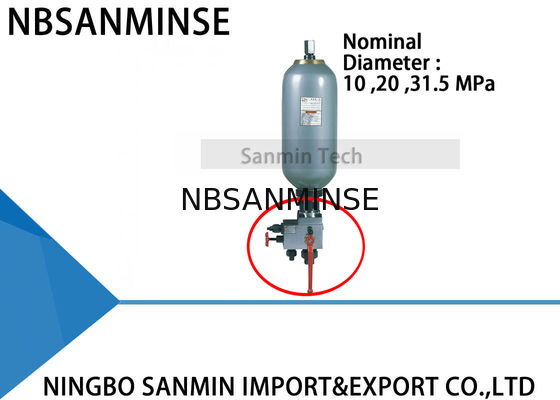

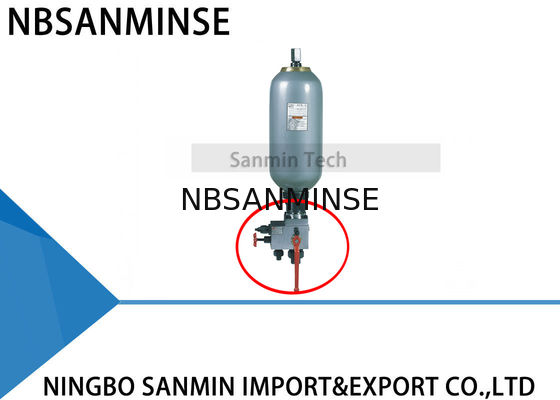

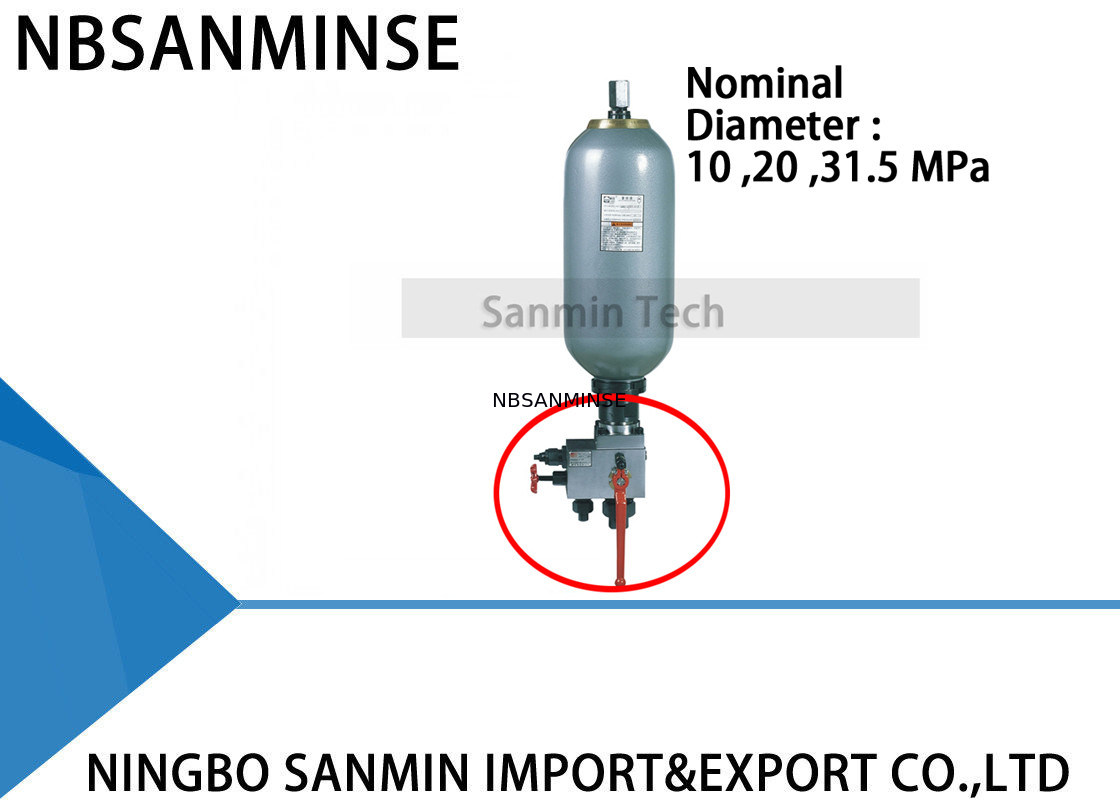

20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve

20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve
20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve 20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve 20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve

Large Image :  20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve

Product Details:
Place of Origin: CHINA
Brand Name: NBSANMINSE
Certification: ISO9001
Model Number: AJS-10
Payment & Shipping Terms:
Minimum Order Quantity: 10PCS
Price: Negotiate
Packaging Details: Box
Delivery Time: 5-30days
Payment Terms: L/C,T/T
Supply Ability: 10000PCS
Contact Now

20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve

Description
Type: Control Valve Name: AJS Valve Group For Bladder Accumulator
Nominal Pressure: 10 , 20 , 31.5 MPa Nominal Diameter: 10 Mm
Unloading: Manual Structure: Direct Over Flow Valve
Accumulator Connector: M27X2,M42X2,M60X2,M72X2
Highlight:

hydraulic bladder accumulator

,

diaphragm type accumulator

Hydraulic Valve Group For Bladder Accumulator Manual Standard 10/ 20 /31.5 MPa Direct Over flow valve







Hydraulic item pressure range is 0-300bar(30Mpa)

Please don't work more than indicated pressure range.

General
AJ Application Valve Group for Accumulator . Which consists of stopping valve ,
Protection valve unloading valve , etc . Is set between accumulator and hydraulic system to control the oil condition of make – and break , overflow and unloading ( which consists of manual and electromagnetic ) .

Gode Name : Application Valve Group For Accumulator
Standard
Unloading Type : S – Manual ( Standard )
Nominal Diameter : 10 , 20 , 32mm
Pressure Of Protection Valve :
a-6.3MPa , b-16MPa , c-25MPa , h-31.5MPa
Z – Direct Over Flow Valve
Thread of Accumulator Connector :
M27 X 2 , M42 X 2 , M60 X 2 , M72 X 2


FAQ



Q: How much is our minimum order quantity ?
A: Our minimun quantity is 1 Piece .

Q: Could you offer the free samples ?
A: Yeah, we could offer the free samples based on special customer.pre-production sample,production sample.

Q: what types of products you can make ?
A: We can make many kinds of stainless steel materials and brass,aluminum . Valve / solenoid valve / electric valve / pneumatic valve and air cylinder products and so on .

Q: Do your company have specialized technical personnel ?
A: Design as your requirements,and have QC for make 100% inspection

Q: Can the product be made with our logo and brand ?
A: Yes , of course , we can make . we are OEM supplier for years and professional to make . But you need give us the authorization for work.



Why choose us



1: Various style for each products and completely series pneumatic products .
2: Large stock for fast shipping .
3: Sample order & small quantity order is acceptable .
4: Customize according to your special request .
5: Reliable quality assured and active after-sell service
6: One year quality guarantee



20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve 0

20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve 1

20 / 31.5 MPa Hydraulic Accumulator Manual Standard Overflow Control Valve 2
