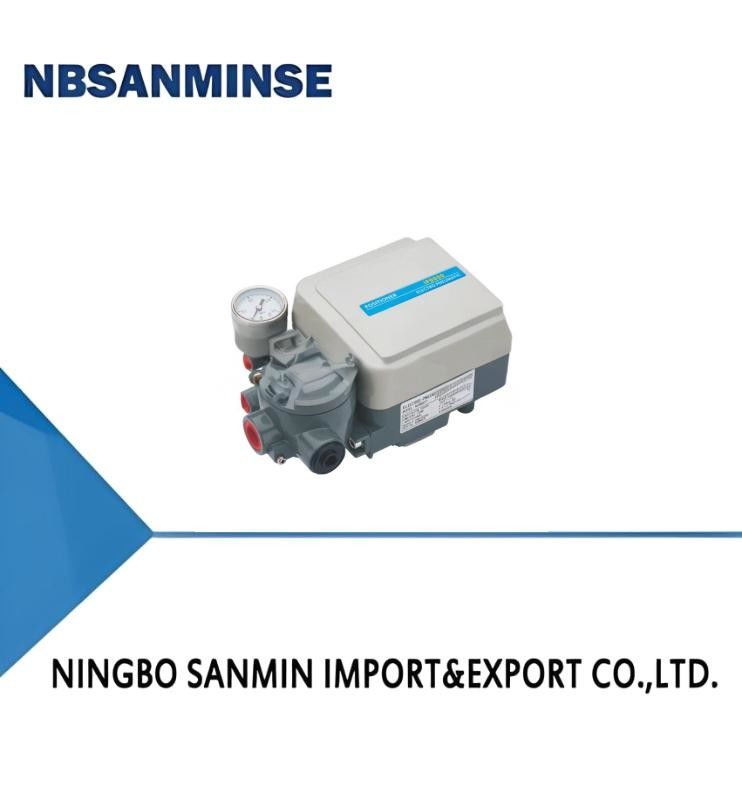

IP8000/8100 Sanmin type electrical and gas valve locator

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	IP8

Detail Information
Lintrinsic Error:	± 1% (single Action); ± 2% (double Action)	Hysteresis Error:	1% (single Action); 2%(double Action)
Dead Band:	0.4% (single Action); 0.8% (double Action)	Rated Travel:	0~ (10~100) Mm [Quarter Travel (corner) 0~ (50°~90)]
Air Pressure:	0.14~0.7MPa	Input Signal:	4~20mA.DC(conventional);0~10mA.DC,4~12mA.DC,12~20mA.DC, 0~5mA.DC,5~10mA.DC
Output Pressure:	0.02~0.5MPa	Air Consumption:	Single-action Actuator: 5 L/min (gas Supply 0.14MPa); Doublel-action Actuatosr: 11 L/min (gas Supply 0.7MPa)
Output Characteristic:	Linear	Temperature:	(Normal Temperature Type)-20℃ ~ + 70℃
Relative Humidity:	5%~100%	Input Impedance:	4~2 0mA.DC/240± 10 Ω (20℃ Time);0~10mA.DC/950± 30 Ω At 2 0℃ (Time At 2 0℃);4 To 20 MA Intrinsic Safety Type
Power Interface:	G1 / 2 (conventional), NPT 1 / 2	Shape Material:	Aluminum Alloy Spraying Process
Weight:	About 2.4kg (No Terminal Block); 2.6kg (A Terminal Block)	Delivery Stroke:	000Linear Pattern 100Angle Stroke
Action Type:	01Single-action 02Double-acting

Product Description

IP8000/8100 type electrical and gas valve locator

1.Within 5 ~ 200Hz no resonance phenomenon.

2.Positive action and reaction, easy to convert between of single and double action.

3.For small actuators can through narrowing the locator throttling to prevent vibration.

4.Less air consumption, the economy is good.

5.There is no replacement parts can be achieved within the scope of 1/2 points and process control.

First, Product Overview
IP8000 type electrical and gas valve locator and actuator, in the controller or control system for 4 - 20 mA. DC current signal, converts air pressure, to match with them set of pneumatic actuators, thus to control the position of

Lintrinsic error			± 1% (single action); ± 2% (double action)
Hysteresis error			1% (single action); 2%(double action)
Dead band			0.4% (single action); 0.8% (double action)
Rated travel			0~ (10~100) mm [Quarter travel (corner) 0~ (50°~90)]
Air pressure			0.14~0.7MPa
Input signal			4~20mA.DC(conventional);0~10mA.DC,4~12mA.DC,12~20mA.DC, 0~5mA.DC,5~10mA.DC
Output pressure			0.02~0.5MPa
Air consumption			Single-action actuator: 5 L/min (gas supply 0.14MPa); doublel-action actuatosr: 11 L/min (gas supply 0.7MPa)
Output characteristic			linear
Environment temperature			(Normal temperature type)-20℃ ~ + 70℃
Relative humidity			5%~100%
Explosion-proof type (grade)			Flameproof type (Ex dⅡBT6 Gb);Intrinsically safe type (Ex iaⅡCT6 Gb)
Input impedance			4~2 0mA.DC/240± 10 Ω (20℃ Time);0~10mA.DC/950± 30 Ω at 2 0℃ (Time at 2 0℃);4 to 20 mA intrinsic safety type
Air supply connection			ZG 1 / 4 (conventional), NPT 1 / 4
Power interface			G1 / 2 (conventional), NPT 1 / 2
Shape material			Aluminum alloy spraying process
Overall dimensions			218x162x100 (mm) Straight travel; 251x162x100 (mm)Quarrter-turn (length×Width×height)
Weight			About 2.4kg (No terminal block); 2.6kg (A terminal block)
Model	delivery stroke	Action type		Type of protection ［of an electrical apparatus for explosive at mospheres］
IP8	000Linear pattern	01Single-action		D Ex dIBT6 Gb
	100Angle stroke	02Double-acting		I ExiaⅡCT6 Gb
	_____	_____		N Not explosion-proof
