AP Automatic Drainer
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | YT-200 YT-205 |
|
Detail Information |
|||
| Highest Input Pressure: | 15kgf/cm2(231psi) 15kgf/cm2(231psi) | High Output Pressure: | 4.2kgf/cm2(57psi) 8.4kgf/cm2(120psi) 4.2kgf/cm2(57psi) 8.4kgf/cm2(120psi) |
|---|---|---|---|
| Air Supply Interface: | PT(NPT1/4) | Pressure Gauge Connection: | PT(NPT1/4) |
| Temperature: | -20℃ ~70℃ (normal Temperature) -20℃ ~120℃ (high Temperature) -40℃ ~70℃ (low Temperature) | Minimum Size Of Filter: | 5 Micron |
| Material: | Die Casting Aluminum Stainless Steel | Weight: | 0.6kg(1.7Ib) 1.4kg(3.0lb) |
Product Description

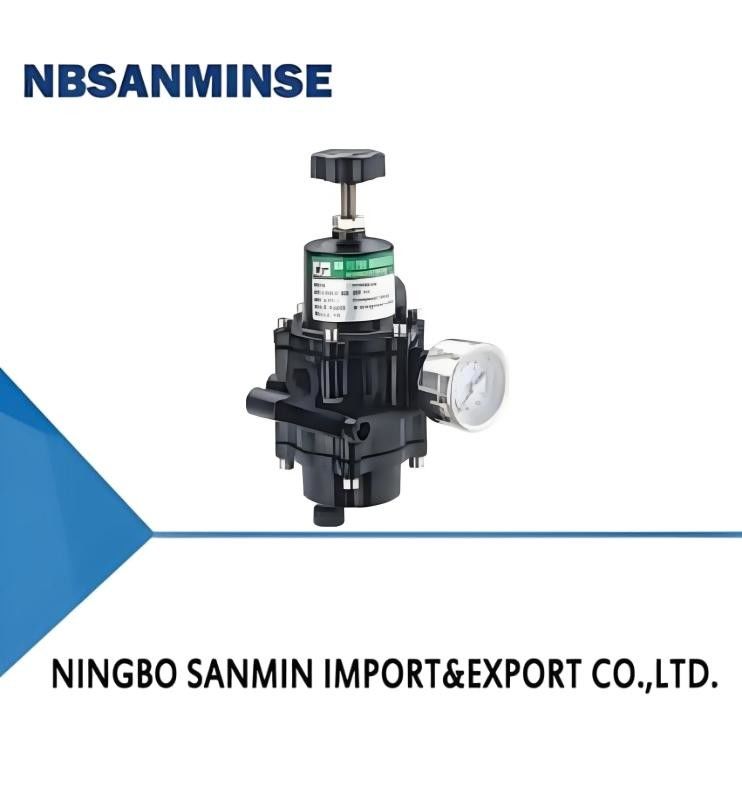

| YT200 series air filtration pressure reducer |
|
1, Sophisticated technology,structure compact, good appearance. 2, Filtering, pure, equipped with PE microporous filter, can be used repeatedly. 3, Aluminum castings for anodic oxidation treatment, surface coating, strong beautiful and corrosion resistance. 4, Key parts stainless steel material. 5,Domestic sewage is convenient and effective. |
| First, Product Overview The company produced all kinds of filtering pressure reducing valve is my company to meet the needs of production site and specially design and manufacture. In a larger output flow and more accurate stability and advancement. Widely used in automatic control system, especially suitable for electrical converter, the valve positioner and all kinds of air source for pneumatic instrumentation, actuators filter, vacuum processing. |
| Project, form | YT-200 | YT-205 | ||
| A | B | A | B | |
| Highest input pressure | 15kgf/cm2(231psi) | 15kgf/cm2(231psi) | ||
| High output pressure | 4.2kgf/cm2(57psi) | 8.4kgf/cm2(120psi) | 4.2kgf/cm2(57psi) | 8.4kgf/cm2(120psi) |
| Air supply interface | PT(NPT1/4) | |||
| Pressure gauge connection | PT(NPT1/4) | |||
| Environment temperature |
-20℃ ~70℃ (normal temperature) -20℃ ~120℃ (high temperature) -40℃ ~70℃ (low temperature) |
|||
| Minimum size of filter | 5 Micron | |||
| Material | Die casting aluminum | Stainless steel | ||
| Weight | 0.6kg(1.7Ib) | 1.4kg(3.0lb) | ||
