AP Automatic Drainer
Contact Person : Ina Chen
Phone Number : 0086-15168536055
WhatsApp : +8615168536055
| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | CN |
|
Detail Information |
|||
| Input Impedence: | 250Ω(4-20mA DC),100Ω(10-50mA DC) | Electrical Interface: | NPT1/2(M22×1.5) |
|---|---|---|---|
| Air Supply Connection: | Rc1/4 | Temperature: | Explosion-proof Type-20- + 60℃; Ordinary Type-40- + 80℃ |
| Relative Humidity: | ≤90% | Linear: | ±1% |
| Hysteresis Error: | 1% | Dead Band: | 0.4% |
| Protection Grade: | IP65 | ||
Product Description

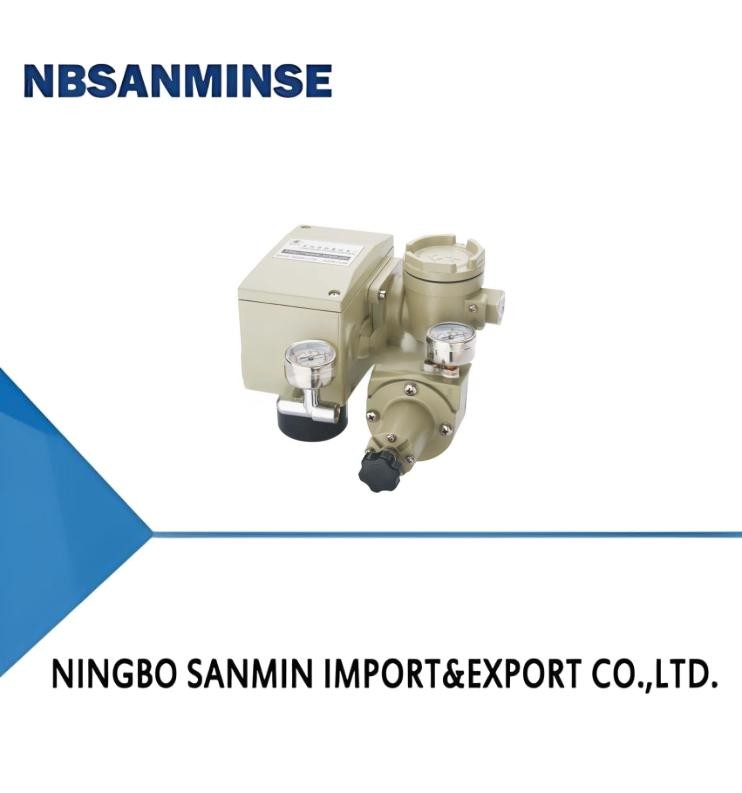

| CN15/16/17 series electrical and gas valve locator |
|
1.Relay, large capacity, small gas consumption, good stability, high sensitivity; 2. High precision electromagnetic components; 3. Adjustment and maintenance can be in the working status directly. 4. Magnet using high energy storage product of rare earth materials, the current through the elastic element input, need not lead. |
| First, Product Overview XCN15/16/17 series electric - gas valve locator and regulator, the regulator output signals converted to drive the regulator gas signal, at the same time, according to the control valve opening position feedback, make the adjustment correctly positioned, it points, single and double effect in two forms. |
| Input signal | Standard 4-20 mA DC, Split-ranging 4-12 mA DC, 12-20mA DC10-50mA DC (XCN-15,16,17; XCN-25,26,27) | ||||
| Input impedence | 250Ω(4-20mA DC),100Ω(10-50mA DC) | ||||
| Gas supply pessure | Single-action 0.14-0.16MPa:0.17-0.5MPa; Double-action 0.2-0.4MPa:0.41-0.7M Pa | ||||
| Rated stoke | Straight travel 10-100mm,Around the corner 0-90° | ||||
| Electrical interface | NPT1/2(M22×1.5) | ||||
| Air supply connection | Rc1/4 | ||||
| Environment temperature | Explosion-proof type-20- + 60℃; Ordinary type-40- + 80℃ | ||||
| Relative humidity | ≤90% | ||||
| Linear | ±1% | ||||
| Hysteresis error | 1% | ||||
| Dead band | 0.4% | ||||
| Protection grade | IP65 | ||||
| Explosion-proof grade | Ex iaⅡCT6 Gb;Ex dICT6 Gb | ||||
| Model | Action Type | Explosion-proof (protection) structure grade | Feedback (action) manner | Choose accessories | |
|
CN |
1 Single-action | 5 Flameproof type Ex dⅡCT6 Gb | 1 Straight travel |
|
|
| 2 Double-acting | 6 Intrinsic safety type Ex ia ⅡCT6 Gb | 2 Quarter-turn (with RC actuator) | + PTM (built-in valve position feedback) | ||
| _____ | 7 Ordinary type | _____ | _____ | ||
