| Place of Origin: | CHINA | Brand Name: | NBSANMINSE |
|---|---|---|---|
| Certification: | CE | Model Number: | YT1200L YT1200R |
|
Detail Information |
|||
| Input Signal: | 0.2~1.0kgf/cm2 (3 ~ 15 Psi), (Are Also Applicable To The Process And Control) | Protection Grade: | IP66 |
|---|---|---|---|
| Cam: | Linear | Temperature: | -20~70℃ |
| Material: | Die Casting Aluminium | Weight: | 1.7kg |
| Linear: | ±1.0%FS ±2.0%FS | Degree Of Lag: | ±0.75%FS ±1.0%FS |
| Sensitivity: | ±0.3%FS ±0.5%FS | ||
Product Description

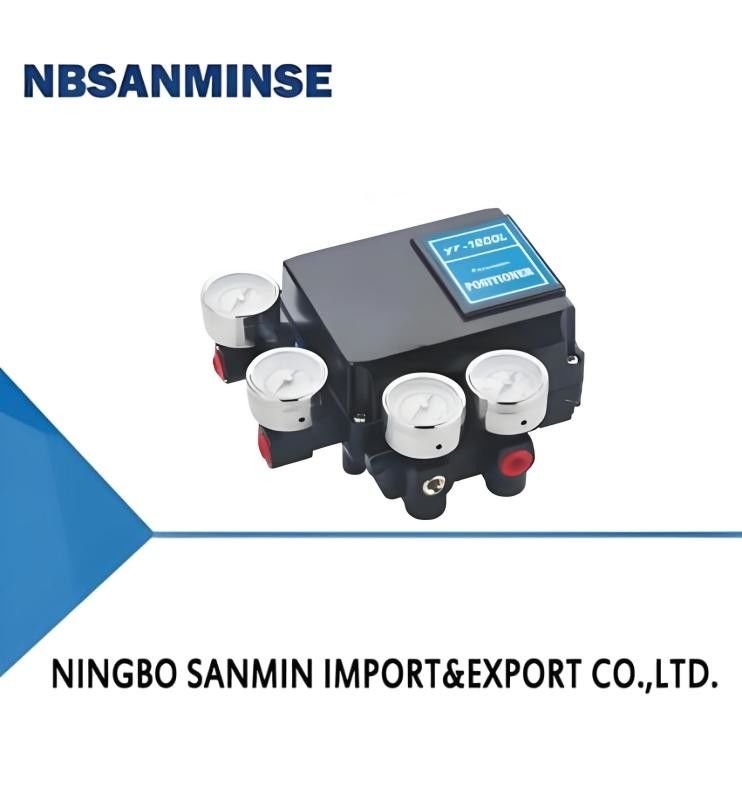

| YT 1200 series pneumatic valve locator |
|
1.The structure of seismic reinforcement, action at the scene of the big vibration and very stable. 2, After more than 1 million times a fatigue test and seismic test, to ensure the stability of the products. 3. Reaction speed. accurate positioning. 4.Through a simple replacement parts is 1/2 minutes ride control can be realized. 5.Gas consumption is small, good energy saving. 6.Positive and negative role conversion is very simple. |
| First, Product Overview Pneumatic valve positioner YT 1200 series of products from the control system receives the air pressure is 3 ~ 15 psi signal, according to the signal pressure precision adjustment device of the valve opening. |
| Model | YT1200L | YT1200R | ||||||||
| Project | Straight trip | Angle stroke | ||||||||
| Single-action | Double-acting | Single-action | Double-acting | |||||||
| Input signal | 0.2~1.0kgf/cm2 (3 ~ 15 psi), (Are also applicable to the process and control) | |||||||||
| Trip |
Standard type: 20~70mm type Selection: 70~150mm |
0~90° | ||||||||
| Air supply interface size |
Standard type: PT 1 / 4 (pressure gauge PT / 1 / 8) Selection: NPT 1 / 4 (pressure gauge NPT / 1 / 8) |
|||||||||
|
Pressure gauge (output pressure) |
Standard: 0~2.0kgf/cm² 0~4.0kgf/cm² 0~10kgf/cm² |
Standard: 0~2.0kgf/cm² 0~4.0kgf/cm² 0~10kgf/cm² |
||||||||
| Supply pressure | 1.4~7.0kgf/cm2(20~100psi) | |||||||||
| Protection grade | IP66 | |||||||||
| Cam | Linear | |||||||||
| Environment temperature | -20~70℃ | |||||||||
| Linear | ±1.0%FS | ±2.0%FS | ||||||||
| Degree of lag | ±0.75%FS | ±1.0%FS | ||||||||
| Sensitivity | ±0.3%FS | ±0.5%FS | ||||||||
| Repetitive | ±0.3%FS | ±0.5%FS | ||||||||
| Air consumption | 3.0LPM(Sup=1.4kgf/cm2),11LPM(Sup=4.0kgf/cm2) | |||||||||
| Flow | 80LPM(Sup=1.4kgf/cm2),200LPM(Sup=4.0kgf/cm2) | |||||||||
| Material | Die casting aluminium | |||||||||
| Weight | 1.7kg | |||||||||
| Model | Action type | Action way | Feedback pole(YT-1200L) | Feedback pole(YT-1200R) | Air Supply interface | Environment temperature | ||||
| YT1200 | L linear pattern | S Single-action | 1 40mm(Following) | 1 M6X40L | 1 PT | S -20℃~70℃ | ||||
| R Angular travel | D Double-acting | 2 40~70mm | 2 M6X63L | 2 NPT | H -20℃~120℃ | |||||
| 3 70~100mm | 3 M8X40L | L -40℃~70℃ | ||||||||
| 4 100~130mm | 4 M8X63L | |||||||||
| 5 130~150mm | 5 The.NAMUR.(standard ard) | |||||||||
