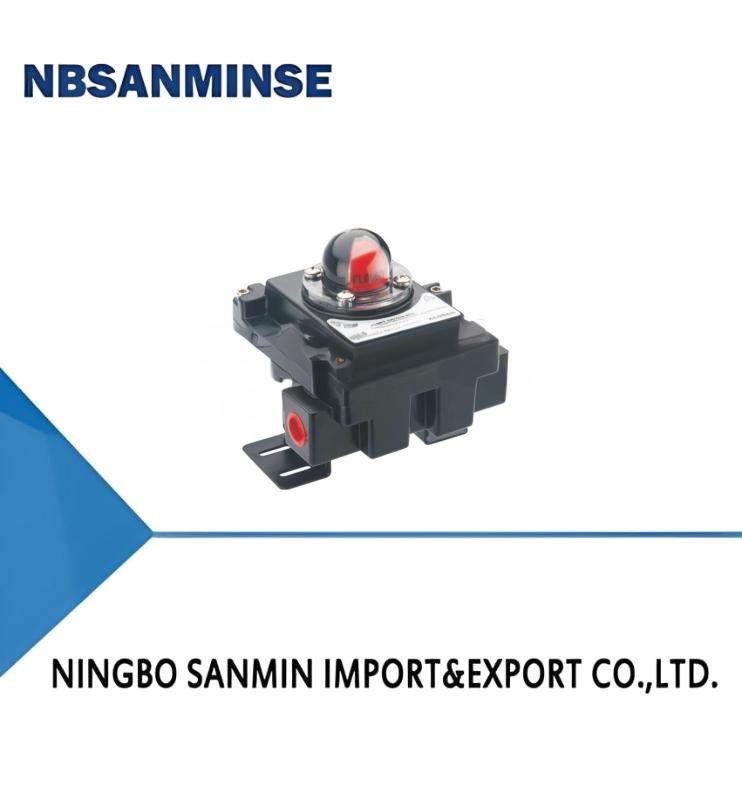

Limit switch APL Sanmin Series

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	APLXC-3N Series APLXC-4N Series APLXC-5N Series

Detail Information
Shell:	IP67 IP67 EexdⅡBT6 Gb (EN50014/50018) IP67 EexdⅡCT6 Gb (EN50014/50018)	Temperature:	-25~85℃
Connection Terminal:	2×1/2NPT PT1/2 PF1/2 M20,PG13.5 2×3/4NPT PT3/4 PF3/4 2×3/4NPT PT3/4 PF3/4	Micro Switch:	Mechanical Type, Induction Type, Spring Proximity Type
Potentiometer:	1K Ohm(0~5K Ohm,0~10K Ohm)	Current Feedback:	4~20mA(20~4mA)

Product Description

Limit switch APL Series

Limit switch APL Sanmin Series 0

1.Die casting aluminum alloy shell, powder coating, nice appearance, reliable in quality.

2.Switch position indicator can be made of clear identification

3.Quick setting CAM, by spline shaft and the spring installation,convenient adjustment without tools.

4.Multijunction terminal row,there are 8 standard contact, safe and convenient wiring

5. Interface standard of wire

6. Prevent to take off the bolt,dismantling bolt attached to the cover will not fall off.

Model	APLXC-3N Series		APLXC-4N Series		APLXC-5N Series
	Standard	Option	Standard	Option	Standard	Option
Shell	IP67		IP67 EexdⅡBT6 Gb (EN50014/50018)		IP67 EexdⅡCT6 Gb (EN50014/50018)
Temperature	-25~85℃
Connection terminal	2×1/2NPT	PT1/2 PF1/2 M20,PG13.5	2×3/4NPT	PT3/4 PF3/4	2×3/4NPT	PT3/4 PF3/4
Binding post	8	9~24	8	9~24	8	9~24
	Conform to standard
Position indication	0~90°	0~180°	0~90°	0~180°	0~90°	0~180°
	Open-yellow; close-red
Micro switch	Mechanical type, induction type, spring proximity type
Potentiometer	1K ohm(0~5K ohm,0~10K ohm)
Current feedback	4~20mA(20~4mA)

Model	Shell	Micro switch		Stents
APLXC	3 Climate protection type (IP67	10 2-SPDT (Mechanical)	Indicator shell For the bolted fixation	A Ordinary type limit switch (side mounted) 30×80 H:20~30
	4 Flameproof type (EexdⅡBT6G b)	11 3-SPDT (Mechanical)
	5 Flameproof type(EexdⅡCT6G b)	12 4-SPDT (Mechanical)
		13 2-SPST (Mechanical		B Ordinary type limit switch (side mounted) 30×130 H:30~50
		14 2-DPDT (Mechanical)
		15 2-SPDT + potentiometer (mechanical )
		16 2-SPDI + current feedback (4-20 mA) (induction type)		C Flameproof limit switch (bottom mounting) 30×80H:30
		20 P&F.NJ2-V3-N (Induction-type)
		21Autonics.PSI7-5DN U (Induction type)
		22P&F.NJ412GM-N (induction type)		D Flameproof limit switch (bottom mounting) 30×130 H:30
		23NBB 2-V3 (induction type)		H:refers to the height of the pneumatic actuators upper output shaft
		30General type (spring proximity)
		31High temperature type (100℃) G spring proximity)
