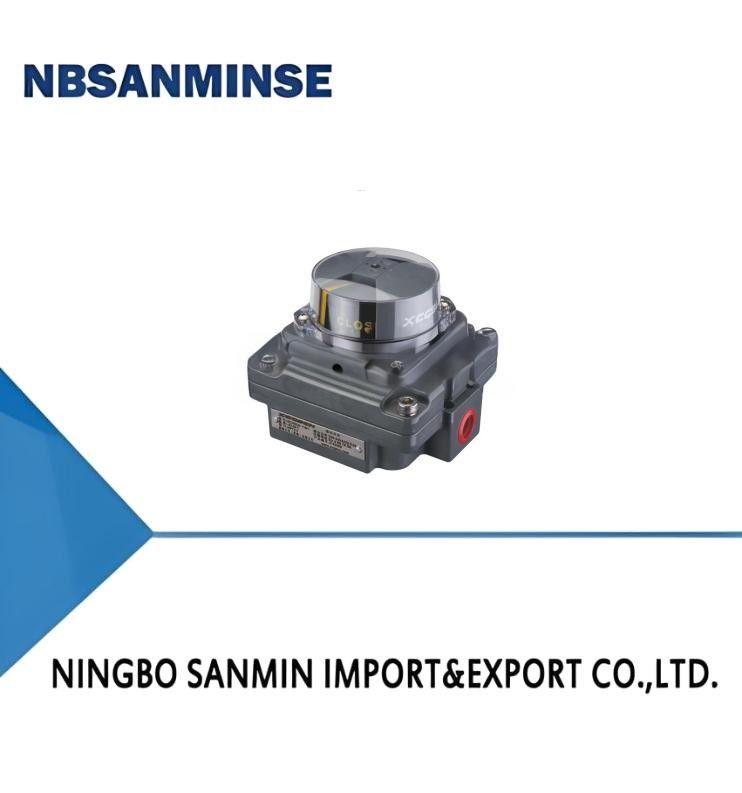

CGSCN 11N1 Sanmin Dust low-temperature explosion-proof limit switch

Place of Origin:	CHINA	Brand Name:	NBSANMINSE
Certification:	CE	Model Number:	CGSCN 11N1

Detail Information
In Switch:	Mechanical Switch (2*SPDT) Inductive Proximity Sensor Omron P+F	Terminal:	8 Point 8 Point
Level Protection:	Ex D IIC T6 Gb Ex Td A21 IP67 T80℃	Temperature:	-20℃+60℃-40℃~+60℃
Scaffold:	2-1/2(NPT,PT,PF),M20x1.5	Scaffold Stack:	NAMUR VDI/VDE 3845,ISO 5211
Texture Of Timber:	Aluminium Die Casting	Weight:	1.6KG

Product Description

CGSCN 11N1 Dust low-temperature explosion-proof limit switch
1.When using in environments with explosive gases, power cables and connectors with explosion-proof certification must be used for wiring. Always disconnect the power before opening the XCGSCN cover. 2.When opening the XCGSCN cover for maintenance, ensure the power is disconnected and wait at least 30 seconds before removing the casing. 3.For the two power interfaces, any unused port must be completely sealed with an explosion-proof certified connector. 4.Pay attention to correct polarity during wiring to avoid reverse connections. 5.Avoid excessive force during wiring to prevent insulation damage. 6.Proper grounding must be ensured in accordance with on-site and explosion-proof regulations.
Selection code
CGSCN A B C D E F A
A.Explosion proof type	0: Ordinary type	1: Split type	2: Low temperature type	3:Dust and low-temperature explosion-proof type
B.Mechanical switch	1:Mechanical switch (2 xSPDT)	2: Induction switch	C.Position transmission (2 switches only)	——————
N: not have	0:4-20 mA output signal	1:20-4 mA output signal	——————	——————
D. cable interface	1:2-NPT1/2	2:2xM20x1.5	——————	——————
E.Control mode (only with solenoid valve)	——————	——————	——————	——————
N: not have	——————	——————	——————	——————
S:Single electric control	——————	——————	——————	——————
D:Dual electric control	——————	——————	——————	——————
F.Supply voltage (only with solenoid valve)	1:220VAC	2 24VAC	——————	——————

In switch		Mechanical Switch (2*SPDT)		Inductive Proximity Sensor
		Omron		P+F
Voltagerated	AC	250V 3A 125V 5A	250V 10.1A 125V 10.1A
	DC	250V 0.2A 125V0.4A 30V 4A	250V 0.2A 125V0.4A 30V 4A	5-60V 4-100mA	8-25V
Terminal		8 Point		8 Point
Level ofprotection		Ex d IIC T6 Gb Ex Td A21 IP67 T80℃
Environ mental temperature		-20℃+60℃-40℃~+60℃
Scaffold spedifications		2-1/2(NPT,PT,PF),M20x1.5
Scaffold Stack specifications		NAMUR VDI/VDE 3845,ISO 5211
Texture of timber		Aluminium die casting
Weight		1.6KG

CGSCN 11N1 Sanmin Dust low-temperature explosion-proof limit switch 0

CGSCN 11N1 Sanmin Dust low-temperature explosion-proof limit switch 1

Installation Method

1.Fix the bracket below the product.

2.Insert the main shaft of the product into the groove of the actuator, and then fix the bracket to the actuator.
